3.3

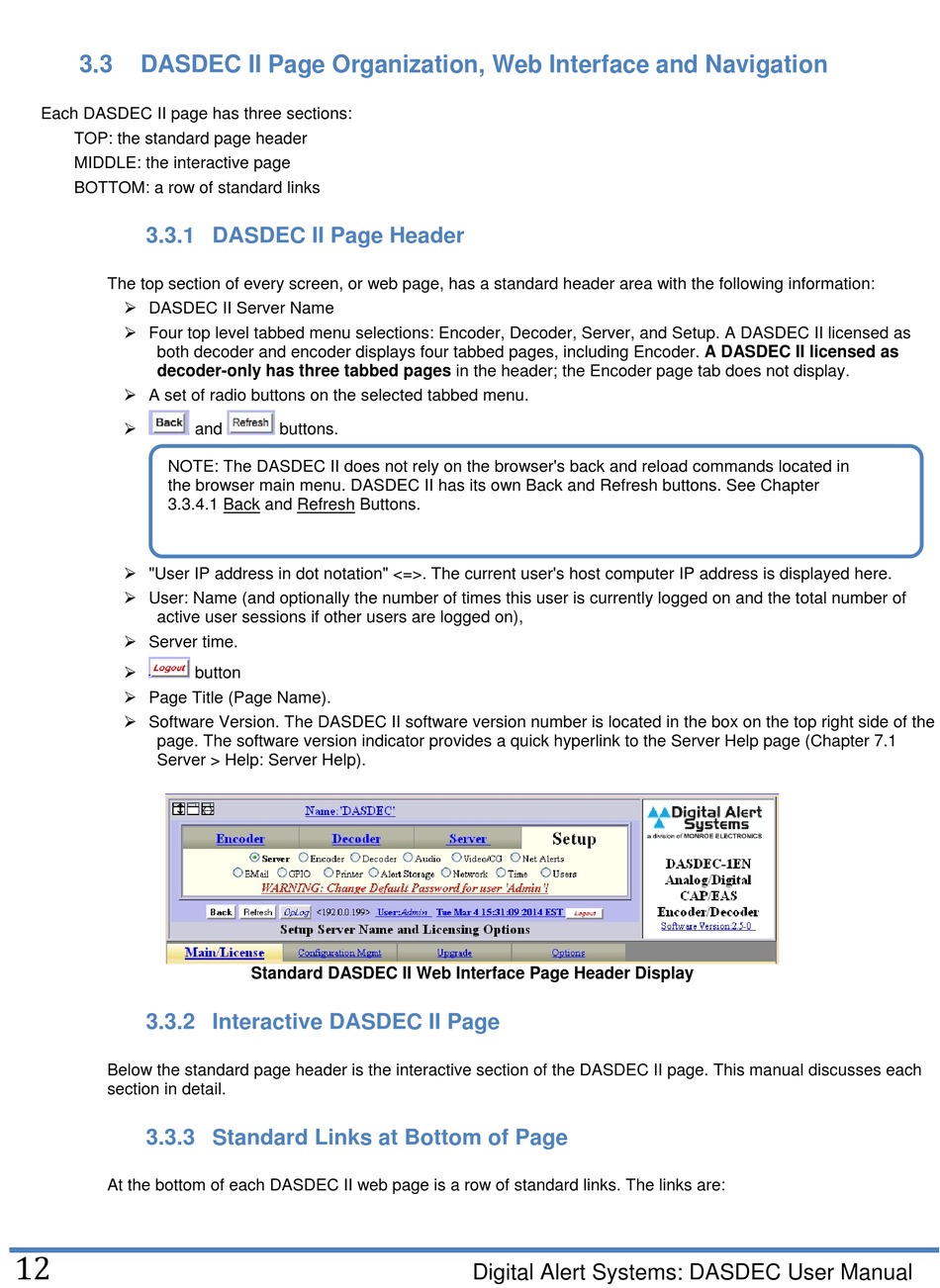

DASDEC II Page Organization, Web Interface and Navigation

Each DASDEC II page has three sections:
TOP: the standard page header
MIDDLE: the interactive page
BOTTOM: a row of standard links
3.3.1 DASDEC II Page Header
The top section of every screen, or web page, has a standard header area with the following information:
 DASDEC II Server Name
 Four top level tabbed menu selections: Encoder, Decoder, Server, and Setup. A DASDEC II licensed as
both decoder and encoder displays four tabbed pages, including Encoder. A DASDEC II licensed as
decoder-only has three tabbed pages in the header; the Encoder page tab does not display.
 A set of radio buttons on the selected tabbed menu.

NOTE: The DASDEC II does not rely on the browser's back and reload commands located in
the browser main menu. DASDEC II has its own Back and Refresh buttons. See Chapter
3.3.4.1 Back and Refresh Buttons.
 "User IP address in dot notation" <=>. The current user's host computer IP address is displayed here.
 User: Name (and optionally the number of times this user is currently logged on and the total number of
active user sessions if other users are logged on),
 Server time.

 Page Title (Page Name).
 Software Version. The DASDEC II software version number is located in the box on the top right side of the
page. The software version indicator provides a quick hyperlink to the Server Help page (Chapter 7.1
Server > Help: Server Help).

3.3.2 Interactive DASDEC II Page

Below the standard page header is the interactive section of the DASDEC II page. This manual discusses each
section in detail.

3.3.3 Standard Links at Bottom of Page

At the bottom of each DASDEC II web page is a row of standard links. The links are:
12
and buttons.
button
Standard DASDEC II Web Interface Page Header Display
Digital Alert Systems: DASDEC User Manual
