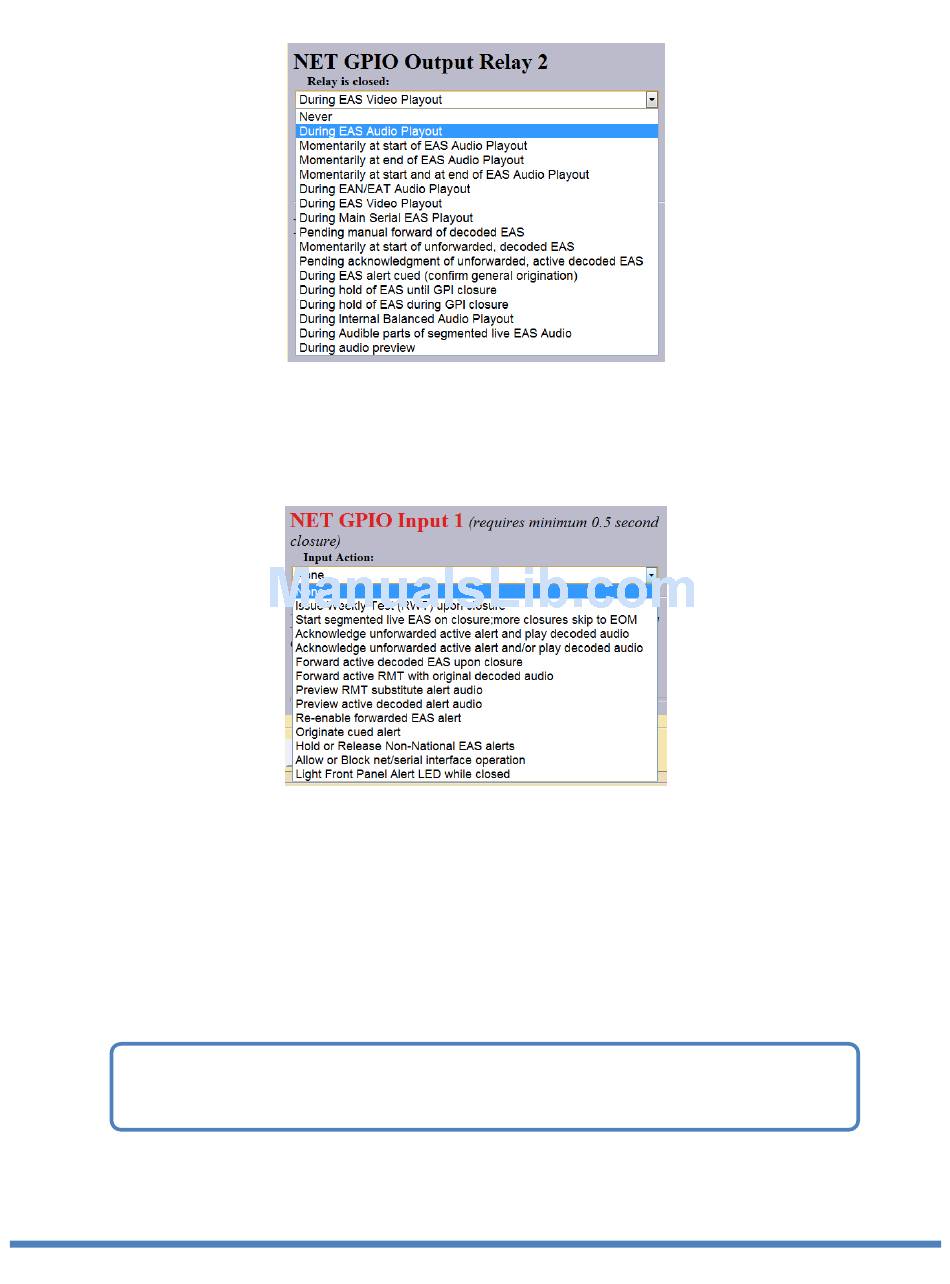

NET GPIO Output Relay selectors:
Each client provides up to 4 relays. A variety of DASDEC II alert states can be used to trigger a relay. The
screen shot below shows the various triggering actions.
NET GPIO Input Action selectors:
The Web Relay Dual client provides 2 inputs. A variety of actions can be triggered on the DASDEC II when a
contact closure is made on these inputs. The screen shot to the right shows the various actions. These selectors
are only available when Listen for Net GPIO Input is enabled and only for Net GPIO units that support input.
The actions can be tied to specific alert FIPS and EAS codes as well. To add FIPS code filtering, click on the
Edit FIPS button and select from the provided FIPS pool lists to create a list of triggering FIPS. See screen shot
below. Active alerts that contain ANY of the activating FIPS in a list for a specific relay, will trigger that relay
(close the contact) while the associated condition is true.
NOTE: The options for Net GPIO "During Hold of EAS until GPI closure" and "During
Audible Dubbing ..." require a Plus Package license.
Digital Alert Systems: DASDEC User Manual
NET GPIO Output Relay Trigger Options
NET GPIO Input Action Options
