Digital Alert Systems DASDEC II User Manual page 114

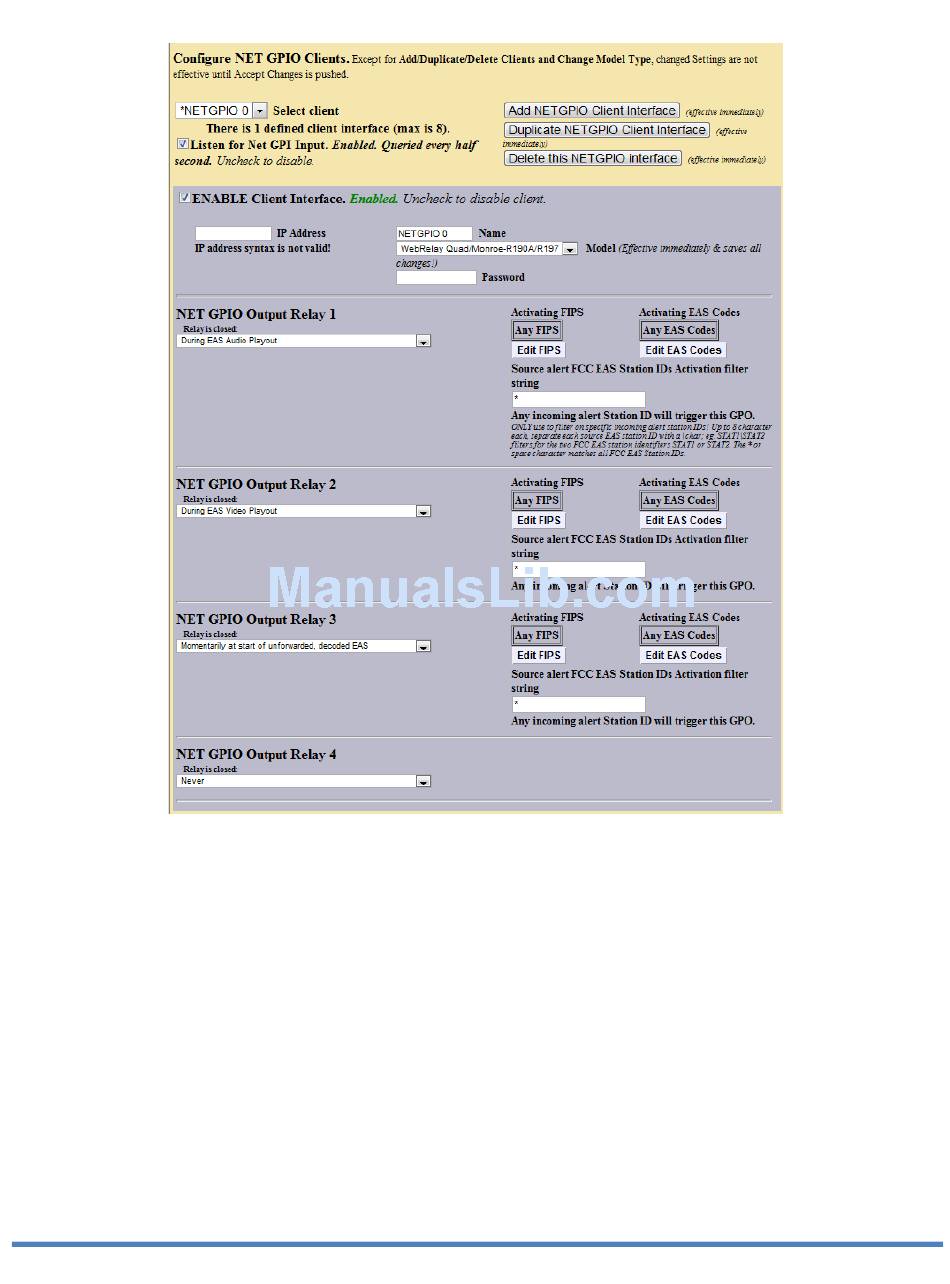

Setup > Net Alerts > Net GPIO web page
ENABLE Client Interface - Enables and disables use of the Net GPIO client interface. Checked is
ENABLED.
IP Address - Enter the IP address of a remote NET GPIO target unit. No port number is needed, as these
units all use HTTP port 80. Once the address is entered, the status of the connection is shown in a display
directly below the IP address field. If the unit can be contacted, a green status box shows the successful
connection. If not, a red status box shows connection cannot be made.
Name - Allows the client interface to be given a descriptive name.
Model - Select from one of the three supported models from the pull down menu. Make sure the model fits
the intended target.
Password - If the Net GPIO unit supports a password and is configured to require a password, enter the
password here.
108
Digital Alert Systems: DASDEC User Manual
