MPEG Encoder Card Wiring
For DASDEC IIs equipped with the optional MPEG2 Encoder card, see the illustration below for wiring the MPEG2. The
video output needs to be loop cabled back into the video input of the Encoder card. Likewise, one audio output needs to
be cabled to the MPEG audio input port.

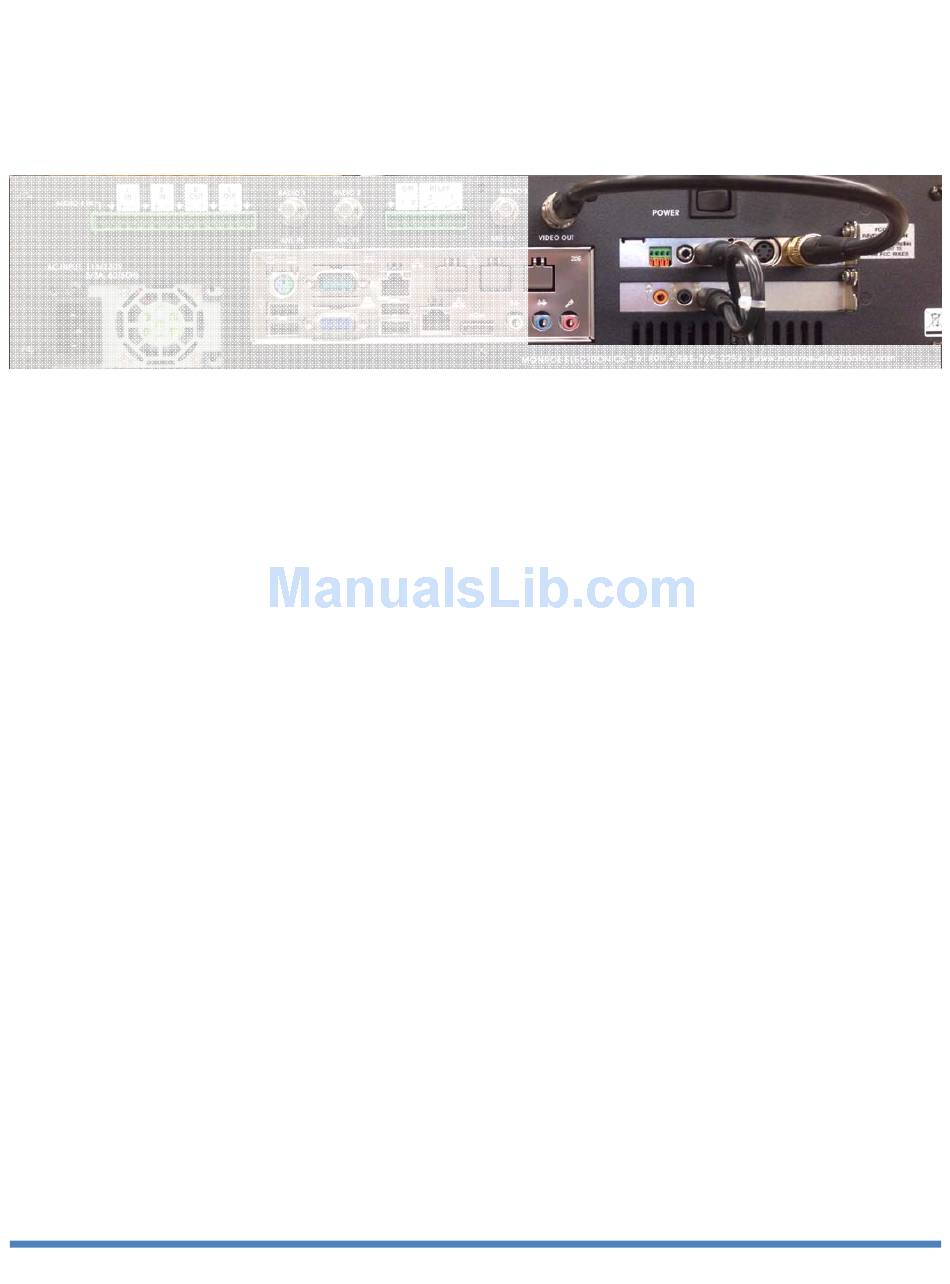

Optional MPEG2 PCI Encoder Card Audio/Video connections
9
Digital Alert Systems: DASDEC User Manual
