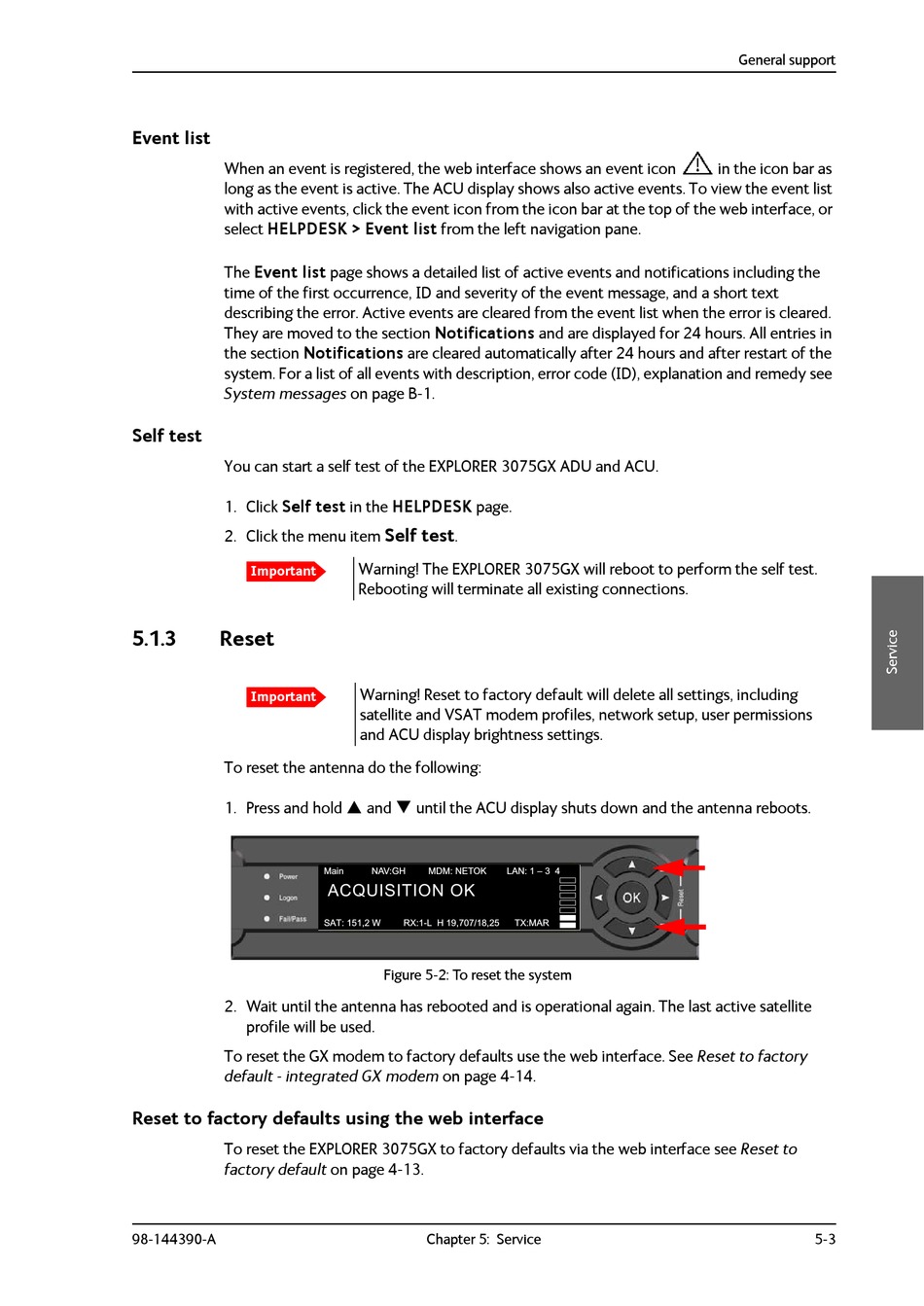

Reset - COBHAM EXPLORER 3075GX Installation And User Manual

Event list
When an event is registered, the web interface shows an event icon
long as the event is active. The ACU display shows also active events. To view the event list
with active events, click the event icon from the icon bar at the top of the web interface, or
select HELPDESK > Event list from the left navigation pane.
The Event list page shows a detailed list of active events and notifications including the
time of the first occurrence, ID and severity of the event message, and a short text
describing the error. Active events are cleared from the event list when the error is cleared.
They are moved to the section Notifications and are displayed for 24 hours. All entries in
the section Notifications are cleared automatically after 24 hours and after restart of the
system. For a list of all events with description, error code (ID), explanation and remedy see
System messages on page B-1.
Self test
You can start a self test of the EXPLORER 3075GX ADU and ACU.
1. Click Self test in the HELPDESK page.
2. Click the menu item
Important
5.1.3

Reset

Important
To reset the antenna do the following:
1. Press and hold  and  until the ACU display shuts down and the antenna reboots.
2. Wait until the antenna has rebooted and is operational again. The last active satellite
profile will be used.
To reset the GX modem to factory defaults use the web interface. See Reset to factory
default - integrated GX modem on page 4-14.
Reset to factory defaults using the web interface
To reset the EXPLORER 3075GX to factory defaults via the web interface see Reset to
factory default on page 4-13.
98-144390-A
Self test
.
Warning! The EXPLORER 3075GX will reboot to perform the self test.
Rebooting will terminate all existing connections.
Warning! Reset to factory default will delete all settings, including
satellite and VSAT modem profiles, network setup, user permissions
and ACU display brightness settings.
Figure 5-2: To reset the system
Chapter 5: Service
General support
in the icon bar as
5-3
