Setup using the web interface
2. For each item under ALLOW USERS TO: select
• Yes to allow the guest user access
• No to block the guest user access to the settings. Then the pages are read-only,
changes cannot be made by the guest user.
Change network: Locks the page SETTINGS > Network. Use this page to change IP
configuration of the LAN connectors. For further information see To configure the LAN
network on page 4-6.
Modify LNB data: Locks the page SERVICE > LNB for guest users. This page is used
when exchanging an LNB.
Control Modem: Locks the page SERVICE > Modem for guest users. This page is used
to reset or power cycle the GX modem.
3. Click Apply.
4.1.8

Import and export of a system configuration

The configuration file contains all the settings you have entered during system setup:
satellite profiles, VSAT modem profiles, LAN setup, user permissions etc. If you need to
reuse a configuration in another EXPLORER 3075GX, you can save the current configuration
to a file, which can then be loaded into another EXPLORER 3075GX. You can also use this
feature for backup purposes.
Important
Important
To save a configuration to a file, do as follows:
1. Select ADMINISTRATION > Export/import config.

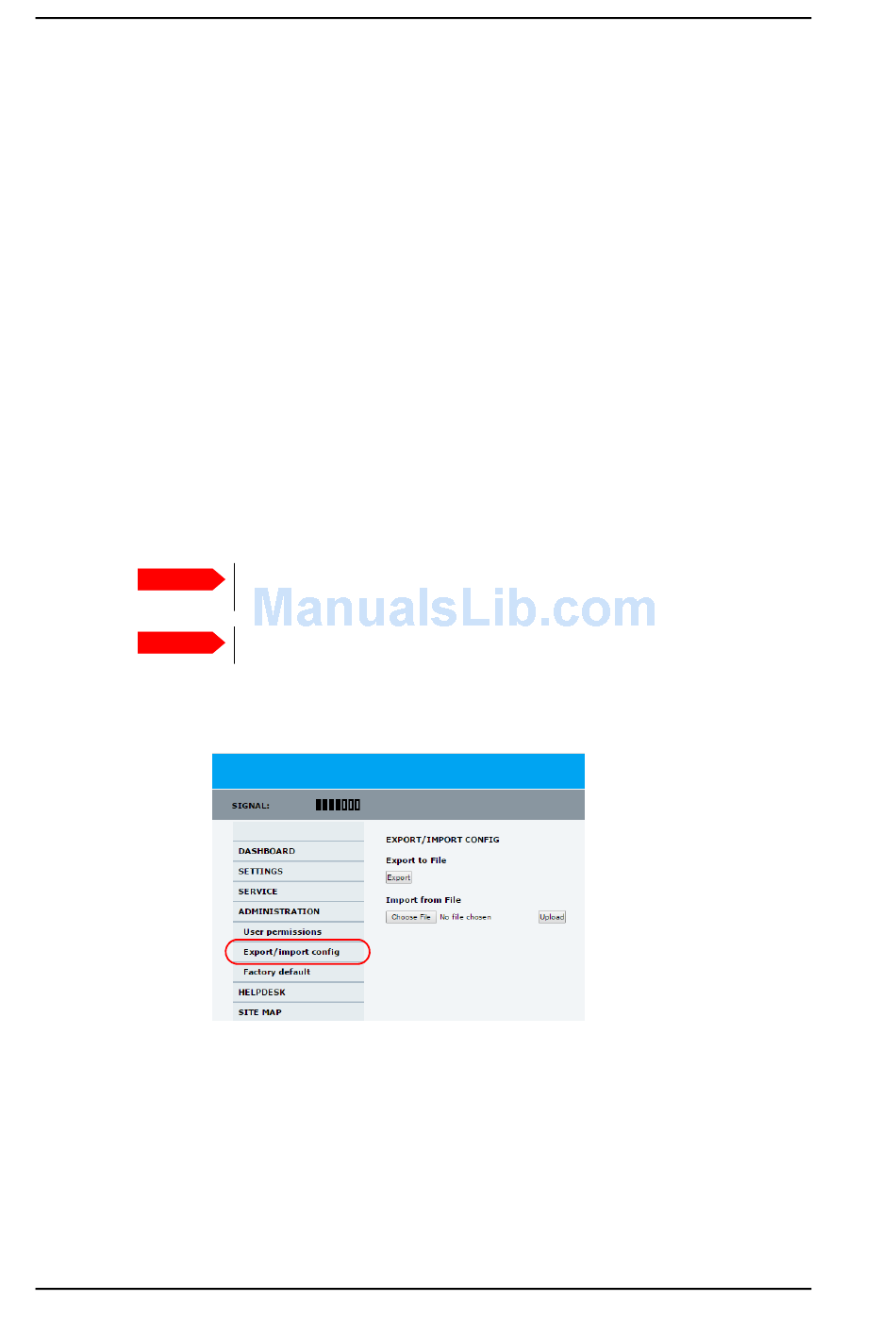

Figure 4-12: Web interface: Administration, Export/import configuration
2. Click the button Export. Follow the download instructions on the screen. You can use
this configuration file for upload into another EXPLORER 3075GX,
4-12
Load and save configurations can only be done when the units have the same
software version.
The configuration file contains the encryption key of the WLAN.
Chapter 4: Setup and operation 98-144390-A
