COBHAM Explorer 3075 Quick Start Manual

Explorer 3075 Ka-Band Antenna
Quick Start Guide

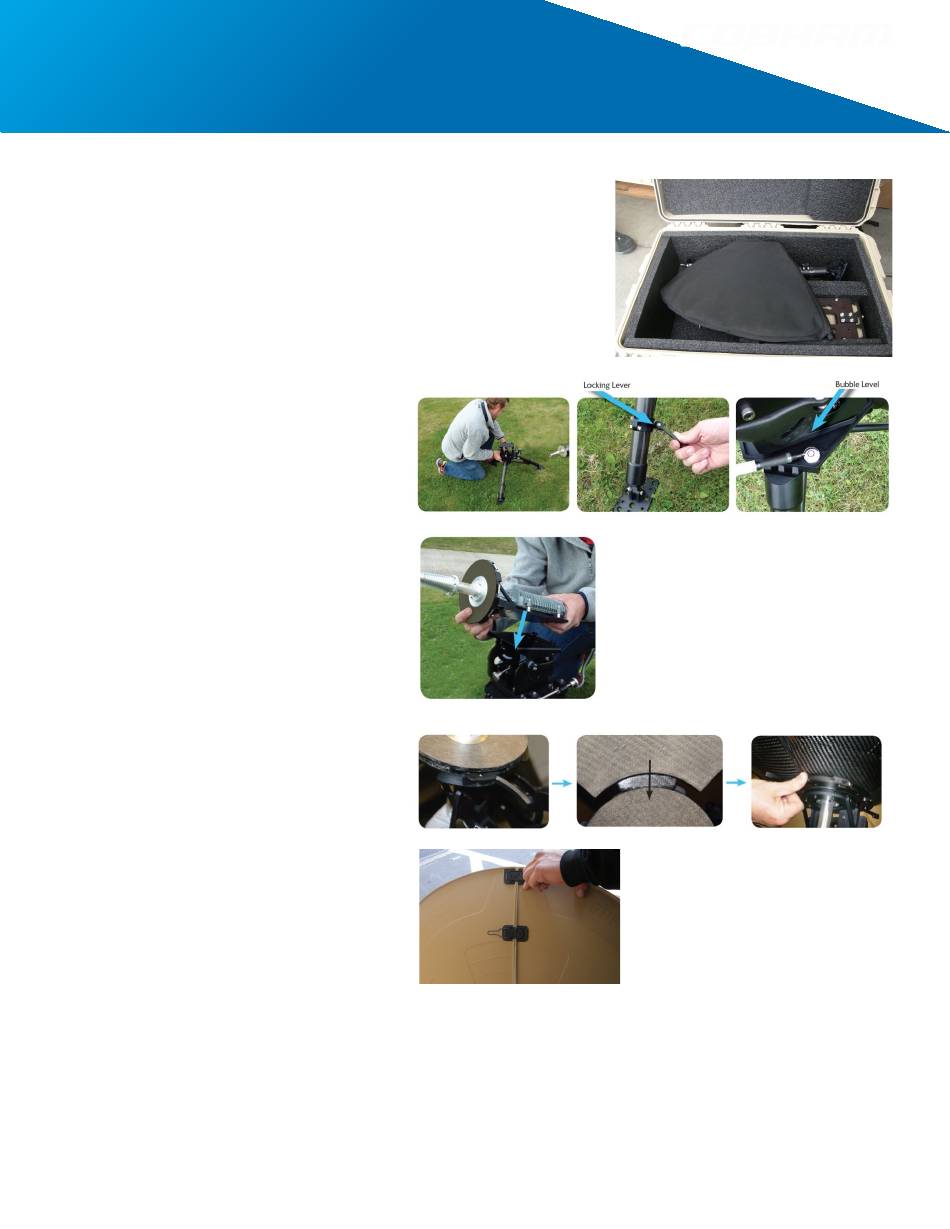

Unpack the case

1. Set the case on the ground near where it will be assembled.
2. Unpack the tripod, reflector panels, RF assembly and cables.
Do not grab the RF assembly by the feed horn as the sub-reflector
can be easily damaged.

Assembling the Antenna

1. Place the tripod on level ground, release the
tripod leg locking levers and deploy the three
legs.
2. Use the bubble level to level the top plate of
the tripod and tighten the locking levers.
3. Release the two RF locking levers (under the
top plate), install the RF on the top plate, slide
the RF back on the slots and tighten the
locking levers.
4. Release the four reflector locking
mechanisms on the reflector hub.
5. Insert one petal to the central hub and
tighten its' locking lever.
6. Inset another petal (next to the first one) into
the central hub, tighten its' locking lever and
clip the two latches between these adjoining
panels.
7. Repeat step 6 to install the two remaining
panels.
For further information see the Series 3000 Assembly and
Operations Guide on the enclosed CD.
