Assembly & start up
This chapter has the following sections:
• What's in the box
• To assemble the EXPLORER 3075GX
• Start up with manual acquisition
• To stow the antenna
• To disassemble and pack the antenna
3.1
What's in the box
3.1.1
To unpack
The EXPLORER 3075GX antenna system is packaged into two transit cases.
• Case with RF assembly and reflector (left)
• Case with Electronics enclosure and antenna positioner (right)
Take care when moving the RF feed assembly. Do
Note
not grab the assembly by the feed horn. The RF
feed's subreflector can be easily damaged.
Move the RF feed as shown in the picture.
Unpack the cases and check that the following items are present:
98-144390-A

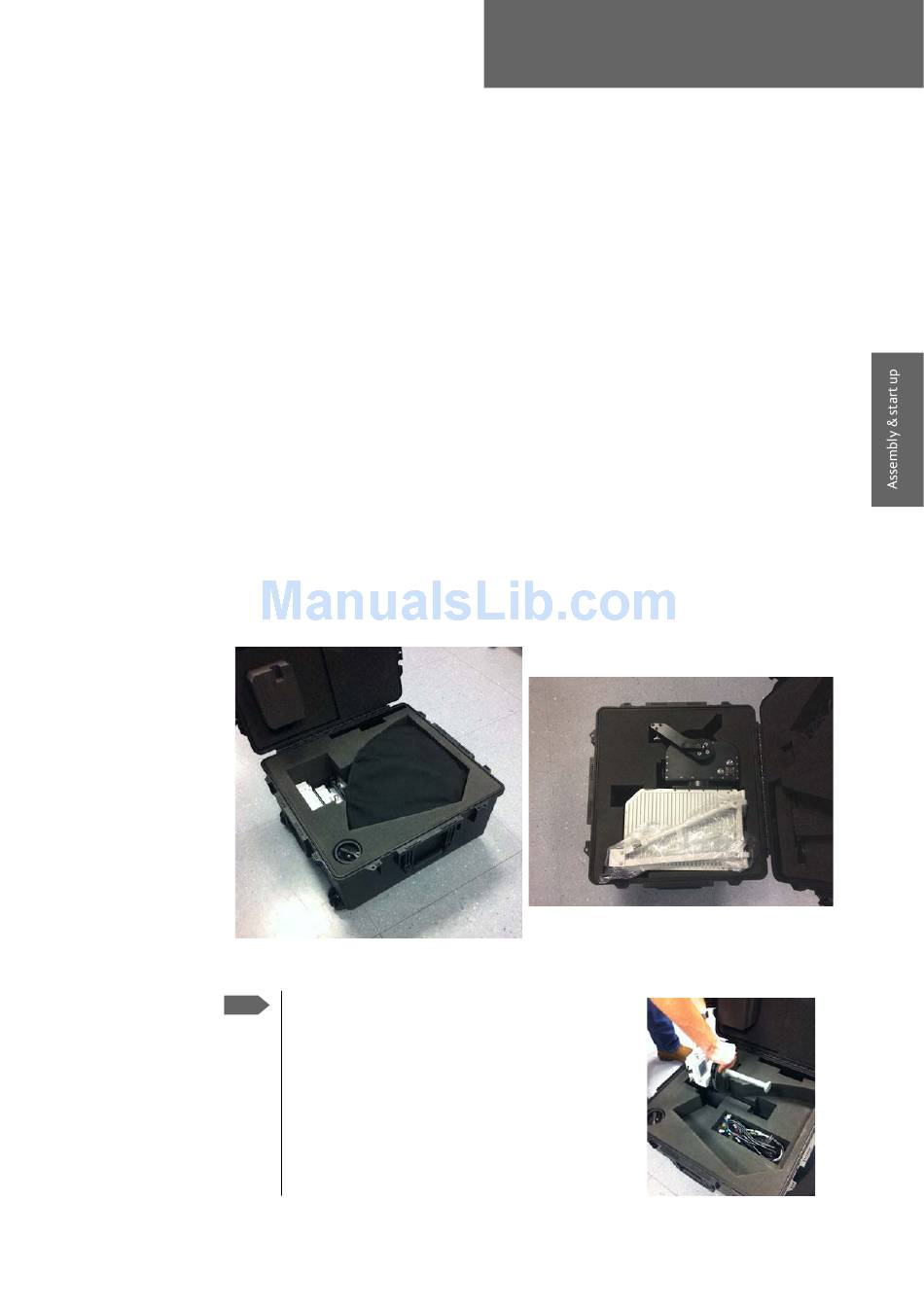

Figure 3-1: 2 transit cases
Chapter 3
3
3-1
