Description of the system components
2.2.6
Web interface for setup and troubleshooting
To fully configure the EXPLORER 3075GX, use the built-in web interface. Installation of
software is not necessary, you can use a standard Internet browser. The web interface is
mainly used for first-time setup of the LAN ports, WLAN use and administrating admin and
guest access rights. The web interface is useful when troubleshooting the EXPLORER
3075GX. The web interface can be accessed using WiFi. For details about network
configuration see To configure the LAN network on page 4-6.
2.2.7
LAN ports and WLAN
The electronics enclosure has four LAN connectors (type RJ45) for connecting a PC/lap top
or similar:
• LAN connector on the left-hand side (LAN 1) is used for system control via the web
interface.
• Three connectors (LAN 2 to LAN 4) for user ports for Internet etc., configured by the GX
modem.
The EXPLORER 3075GX has a WLAN module. Access to one of the LAN ports using WLAN
must be set up in the web interface, see To configure the LAN network on page 4-6.
2.2.8
Power Supply
The internal power supply supplies primary power to the electronics enclosure, antenna
positioner, and the BUC. Power input is specified as 100-240 VAC, 4A, 50/60 Hz.
2-6

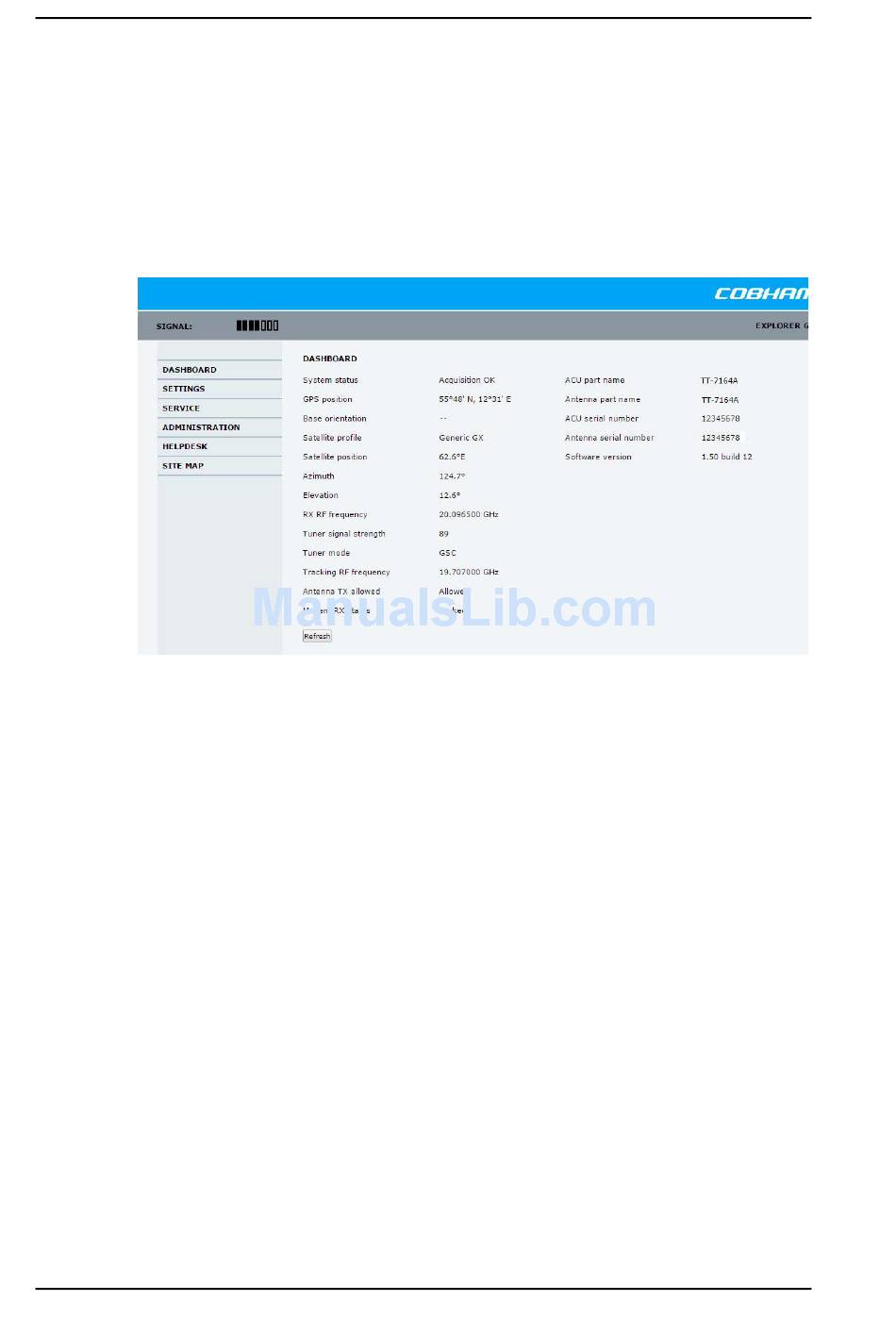

Figure 2-9: Web interface, DASHBOARD (example)
Chapter 2: Introduction
98-144390-A
