2.2
Description of the system components
2.2.1
Antenna positioner
The manual-deploy antenna positioner can accommodate -5° to 105° of angular movement
in the elevation axis and ± 90° in the azimuth axis. The mechanical assemblies rely on two
independent axes to allow for precise antenna pointing. The antenna positioner is rated at
IPX5, it can stay outside in rainy weather.
Manual control features
The features of the manual control panel include:
• Keypad and display panel with target angle coordinates and real-time signal strength
indications
• Azimuth/Elevation adjustment controls and locks
• Elevation axis scale
Elevation
brake
98-144390-A
Azimuth angle
Elevation
adjustment
adjustment

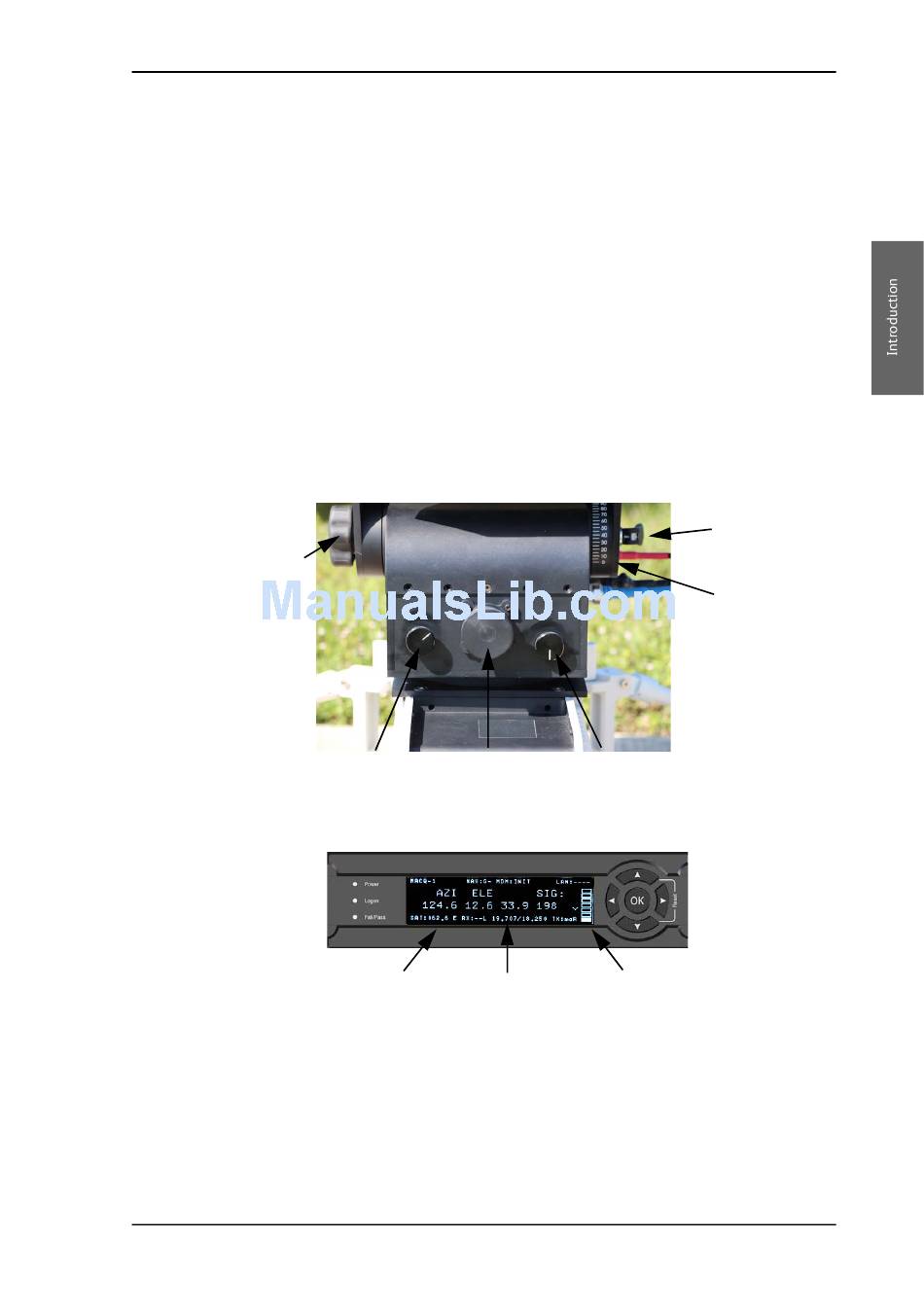

Figure 2-3: Manual controls
Target & current
Target
elevation angle
azimuth angle
Figure 2-4: Computer-assisted manual pointing tools
Chapter 2: Introduction
Description of the system components
Elevation
brake
Elevation
scale
Azimuth
brake
Signal
strength
2-3
