Setup using the web interface
When the login screen is displayed you have verified that the connection to the
EXPLORER 3075GX can be established. The web interface is ready for use. You can
continue to configure the system.
If you cannot establish a connection there might be problems with the Proxy server
settings of your PC. See Proxy server settings in your browser on page 5-8 for further
information.
4. Type in the user name admin and the password 1234 to access the Dashboard.
There is also a guest login (user name: guest, password: guest). With this login you can
protect the system from accidental changes of the configuration. A guest can only
access the functions that are allowed on the page User permissions by an
administrator. For more information see User permissions (guest login) on page 4-11.
5. The web interface shows the DASHBOARD page.
Acquisition process
The EXPLORER 3075GX antenna must be manually pointed after power on. See Start up
with manual acquisition on page 3-6. A satellite and modem profile has been set up at the
factory. The antenna is fully operational when the display shows ACQUISITION OK and
the field MDM: in the upper status line shows NETOK.
4-2

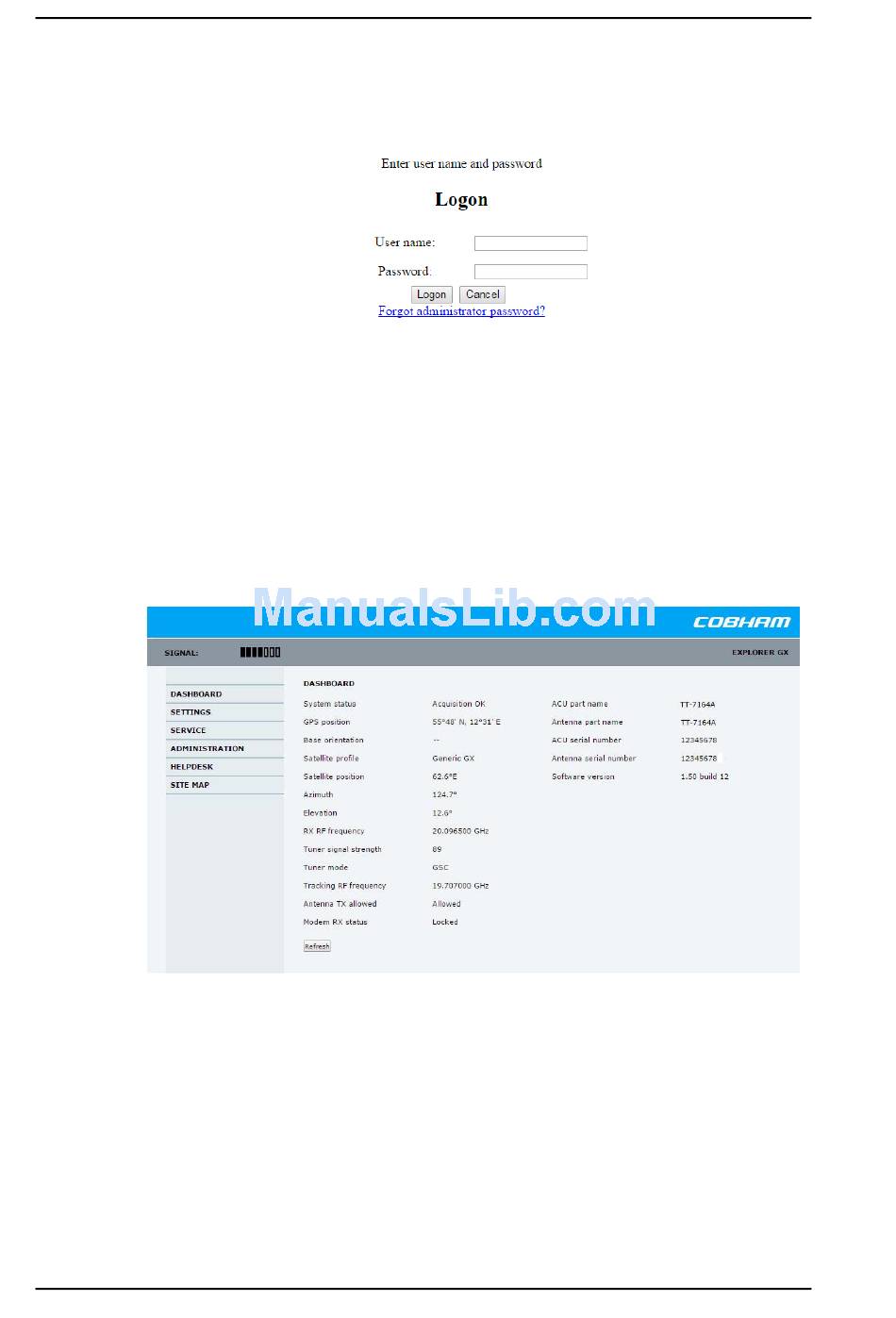

Figure 4-1: Logon screen
Figure 4-2: Web interface: DASHBOARD
Chapter 4: Setup and operation 98-144390-A
