Leds And Interfaces - DCP -WR300N User Manual

Do not connect this device to any PCs or electronic products, unless our
customer engineer or your broadband provider instructs you to do this,
because any wrong connection may cause power or fire risk.
Do not place this device on an unstable surface or support.
1.2

LEDs and Interfaces

Front Panel

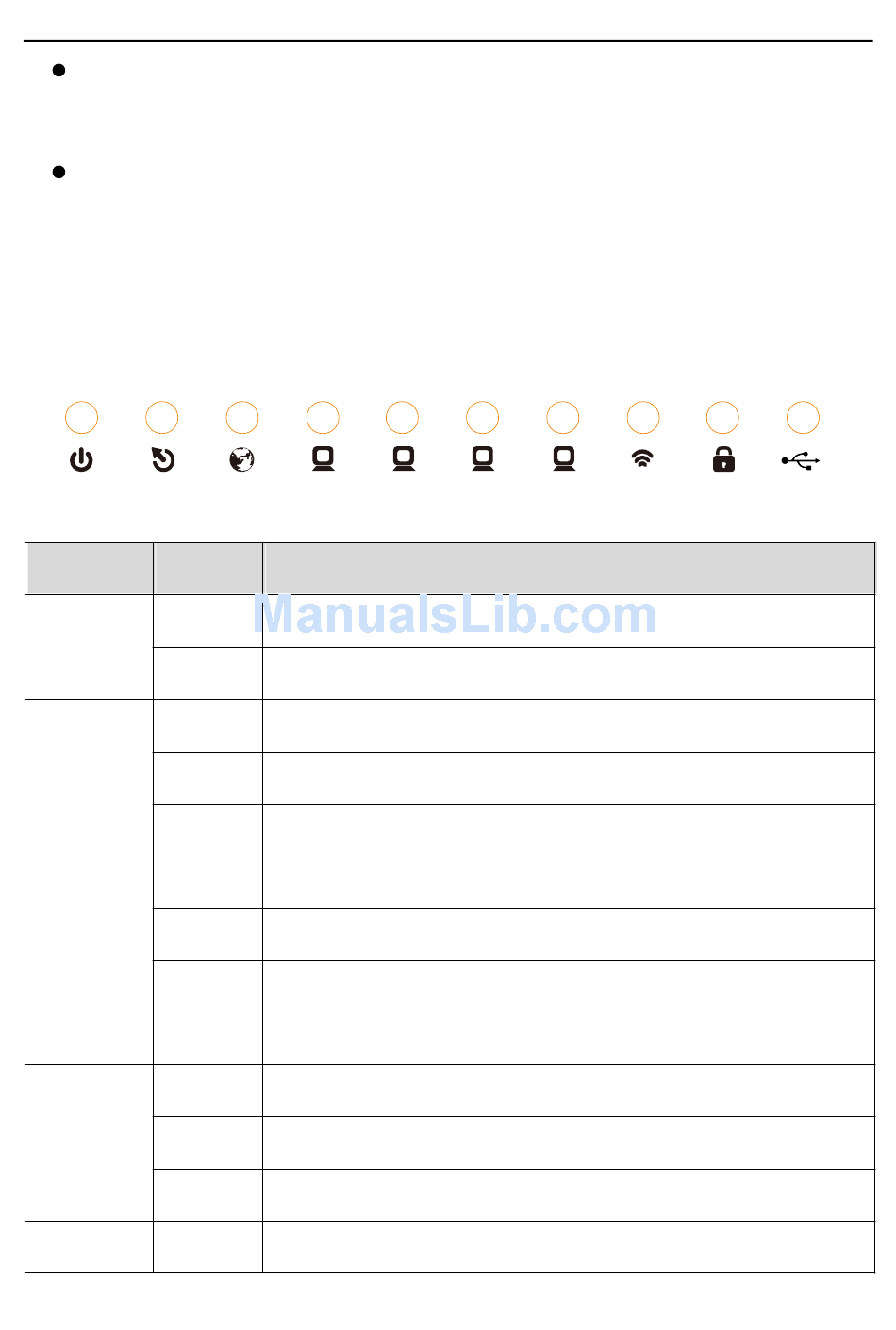

The following table describes the LEDs of the device.
LED Status
On
Power
Off
On
DSL Blinking
Off
On
Blinking
Internet
Off
On
WLAN Blinking
Off
WPS On
Introduction
Description
The modem router is powered on.
The modem router is powered off.
ADSL line is synchronized and ready to use.
ADSL negotiation is in progress.
ADSL synchronization fails.
Successful PPP session.
Data is being transmitted via the internet.
Connection fails or the modem router operates in Bridge
mode.
Wireless is enabled but no data is being transmitted.
Data is being transmitted over the wireless network
Wireless function is disabled.
A wireless device is successfully connected to the network
2
DCP-WR300N
