3.4.1.4 ATM Setting

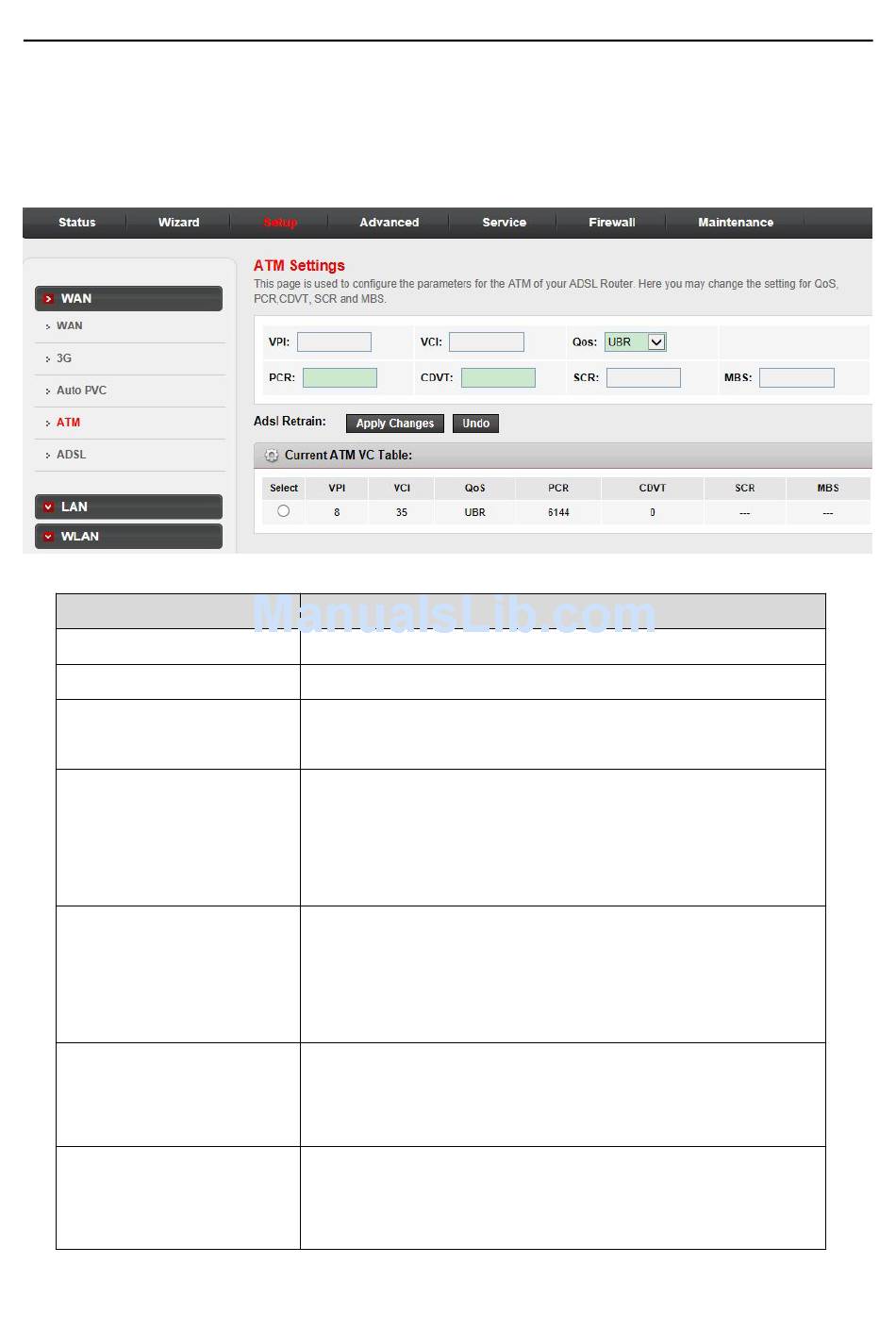

Click ATM in the left pane, the page shown in the following figure appears. In this
page, you can configure the parameters of the ATM, including QoS, PCR, CDVT,
SCR and MBS.
The following table describes the parameters of this page.
Field
VPI
VCI
QoS
PCR
CDVT
SCR
MBS
Configuration
Description
The virtual path identifier of the ATM PVC.
The virtual channel identifier of the ATM PVC.
The QoS category of the PVC. You can choose
UBR, CBR, rt-VBR or nrt-VBR.
Peak cell rate (PCR) is the maximum rate at
which cells can be transmitted along a connection
in the ATM network. Its value ranges from 1 to
65535.
Cell delay variation tolerance (CDVT) is the
amount of delay permitted between ATM cells (in
microseconds). Its value ranges from 0 to
4294967295.
Sustain cell rate (SCR) is the maximum rate that
traffic can pass over a PVC without the risk of cell
loss. Its value ranges from 0 to 65535.
Maximum burst size (MBS) is the maximum
number of cells that can be transmitted at the
PCR. Its value ranges from 0 to 65535.
