Operation Instructions

The FD220CV-C-1 is continuously on but can be de-energized by removing power from the
video system. No pilot or aircrew action is necessary during flight or ground operation.
The operator will be able to change the video output from the FD220CV-C-1 using the
video source select button on the display.
When applying 28VDC power, the display will turn on and look for a valid input on the last
known source. If no input is found, the display will go to standby mode. Pressing the Select
button will select new video input.
Button Controls

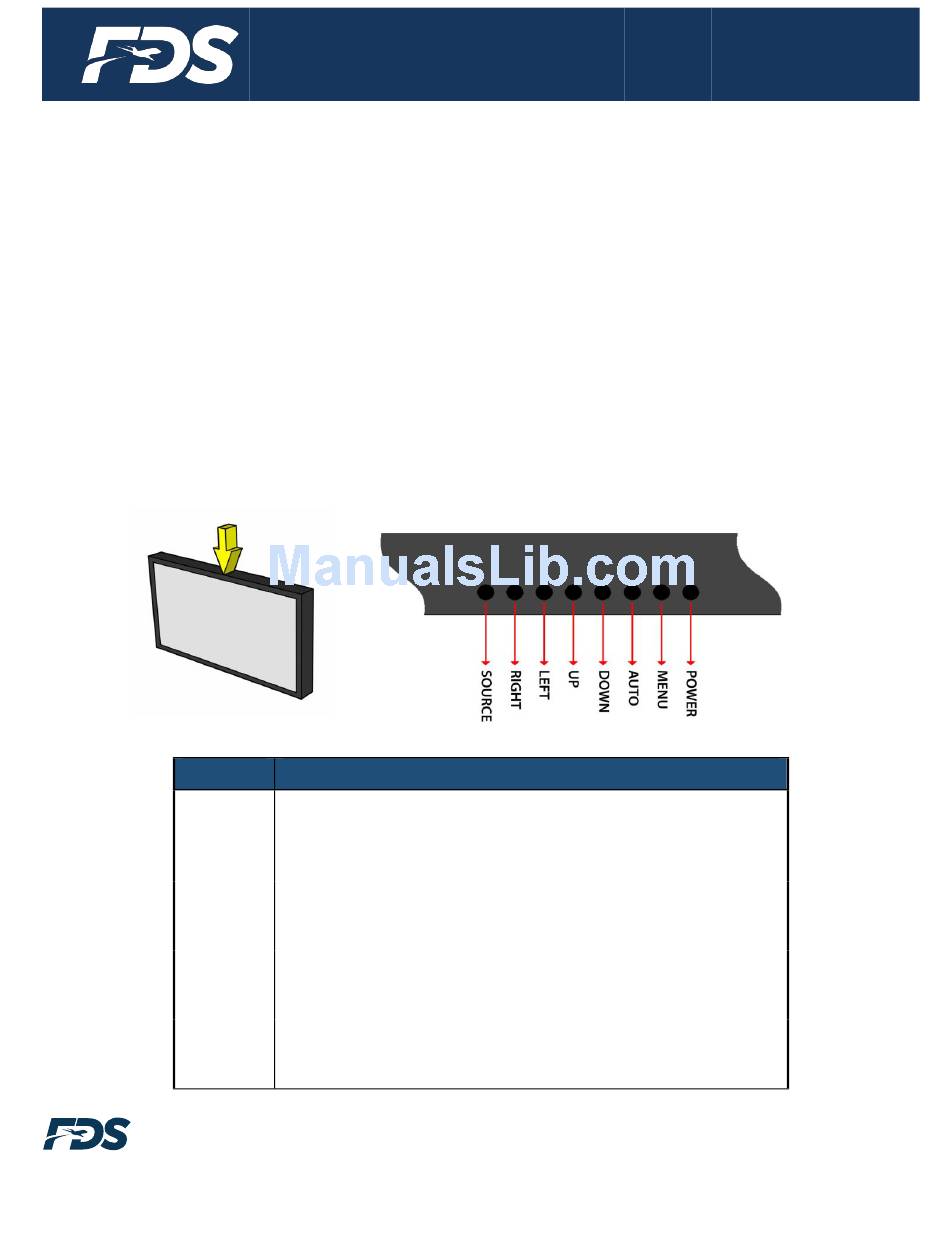

Located at the top (center) of the FD220CV-C-1are 8 buttons. Their functions are shown
below:
BUTTON
POWER
MENU
AUTO
DOWN
UP
LEFT
RIGHT
SOURCE Switches between sources coming into the display.
© 2017 FDS Avionics Corp.
All Rights Reserved.
Document Number:
MAN – FD220CV-C-1
DESCRIPTION
Toggles the power ON or OFF. Also, wakes the display
up from SLEEP mode.
Opens the MENU.
Auto-adjusts the display's size and position.
Moves to the next selection in the menu.
Moves to the previous selection in the menu.
Decrease the selection's value in the menu.
Increases the selection's value in the menu.
