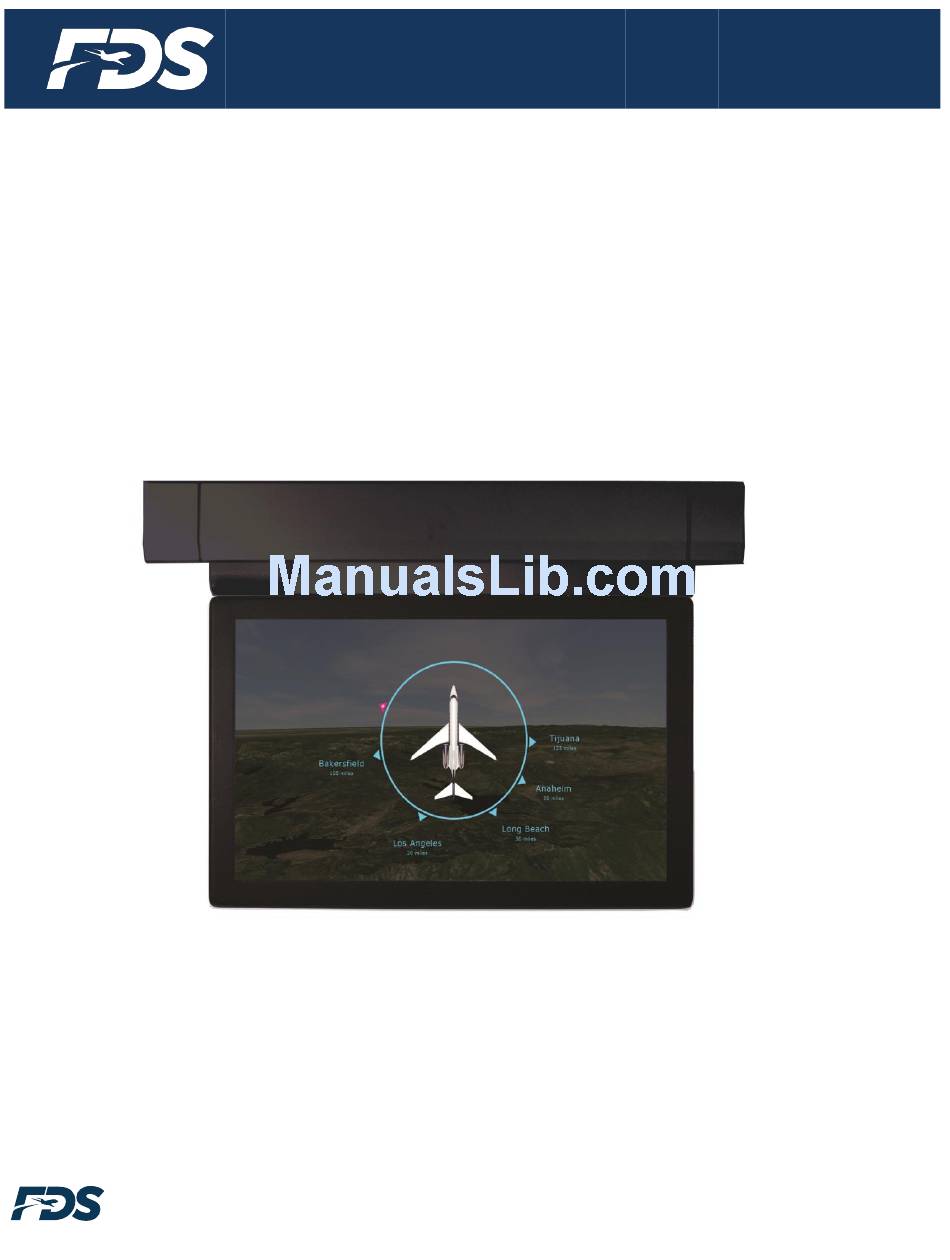

- Page 1 Revision Date: Rev: Document Number: 05/15/2017 MAN – FD102CMT Page 1 of 14 Installation and Operation Manual FD102CMT 10.2” Widescreen LCD Ceiling Mount © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
-
Page 2: Table Of Contents
Operation Instructions ....................10 Button Controls ......................10 Remote Control ......................11 Technical Support ......................12 Instructions for Continued Airworthiness ............... 12 Warranty .......................... 13 Log of Revisions......................14 © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 3: General Information
Page 3 of 14 General Information The FD102CMT is a 10.2" Widescreen LCD Ceiling Mount, used to deploy our popular 10.2” Widescreen LCD. The FDS Avionics Corp. high resolution 10.2” Widescreen LCD is perfect for cabin video and graphical entertainment. -
Page 4: Specifications
Once it has been determined that you have sufficient room and mounting locations for the FD102CMT, then it would be appropriate to start mounting the base to the frame. The FD102CMT is attached to the aircraft with four #10 screws. There are four attach points on the top plate. -
Page 5: Power
Power This is a 12VDC monitor that requires 2 Amps of power to operate. This is also available as FD102CMT (28V) which is a 28VDC monitor that requires .5 Amp of power to operate. Wiring Suggestions All shields should be grounded to the connector at the source, and floating at the display. -
Page 6: Vga Wiring
The individual wires should be extended with 6” 22awg wires using an environmental splice for the red & green wires, and Raychem caps for the blue, white, and black wires. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. -
Page 7: Power And Ground Wiring
Red Ground (Pin 6 on Standard VGA) Green Ground (Pin 7 on Standard VGA) Horizontal Sync (Pin 13 on Standard VGA) Vertical Sync (Pin 14 on Standard VGA) © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 8: Pinout Db-15
Part Numbers for DB-9 connectors, manufactured by Tyco or Amp. D-sub, 9 contact receptacle (female) P/N 205203-1 DB9F pins P/N M39029/63-368 Number Description 12VDC Power (28VDC for FD102CMT (28V)) 12VDC Ground (28VDC for FD102CMT (28V)) © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 9: Technical Drawing
Revision Date: Rev: Document Number: 05/15/2017 MAN – FD102CMT Page 9 of 14 Technical Drawing © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 10: Operation Instructions
Page 10 of 14 Operation Instructions The FD102CMT is continuously on but can be de-energized by removing power from the entertainment system. No pilot or aircrew action is necessary during flight or ground operation. Passengers can change the video output from the FD102CMT using the video source select switch on the LCD monitor, or remotely throughout the cabin with the included IR remote. -
Page 11: Remote Control
Page 11 of 14 Remote Control The remote control included with the FD102CV contains the same functionality available on the display buttons, to include power, source, menu, and directional arrows. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 12: Technical Support
05/15/2017 MAN – FD102CMT Page 12 of 14 Technical Support Should you have any questions concerning this product or other FDS Avionics Corp. products, please contact our Product Support representatives at (407) 239-7421. FDS Avionics Corp. 6435 Shiloh Road Alpharetta, GA 30005... -
Page 13: Warranty
Limited Warranty All FDS Avionics Corp. products are warranted to be free from material or manufacturing defects for a period of 24 months from the date of shipment for General Aviation customers or 12 months from the date of shipment for Government/Special Mission customers. -
Page 14: Log Of Revisions
MAN – FD102CMT Page 14 of 14 Log of Revisions Date Page Description 01/29/2007 03/28/2007 2,3,6 Added info regarding FD102CMT (28V) 04/11/2007 Changed required amperage to 2 Amps. 10/05/2007 Changed image, removed color information. 02/11/2009 2,11 Updated specs, warranty info...
