Power/Video

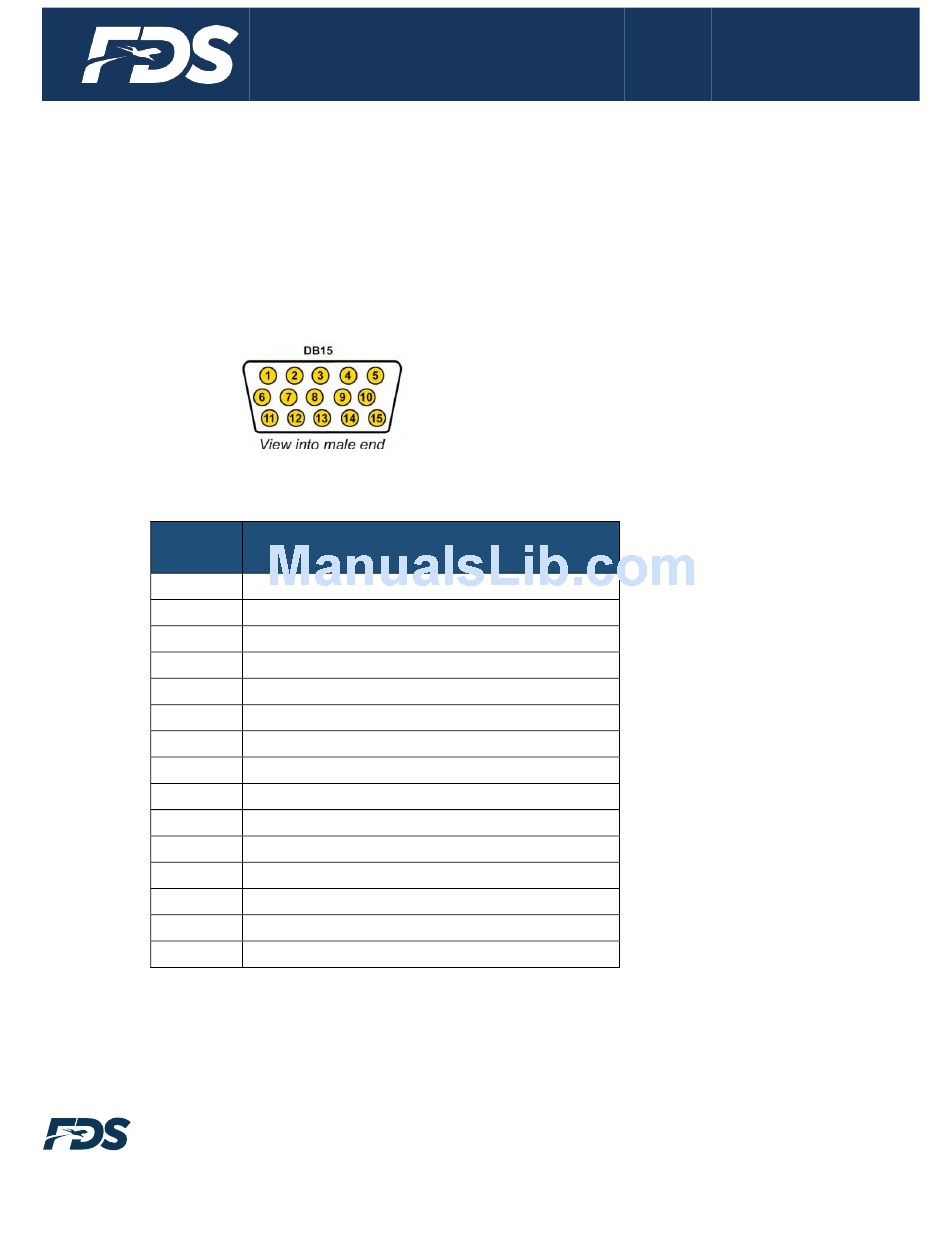

Pin out for DB-15 Female Connector (Industry Standard VGA)
Connector
Crimp Contacts
Pin
Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
© 2017 FDS Avionics Corp.
All Rights Reserved.
Document Number:
MAN – FD220CV-C-1
Description
Red Signal
Green Signal
Blue Signal
N/C
Ground – Horizontal Sync
Red Return
Green Return
Blue Return
N/C
Ground – Vertical Sync
N/C
N/C
Horizontal Sync
Vertical Sync
N/C
P/N: 748364-1 or Equivalent
P/N: M39029/58-360 or Equivalent
