- Page 1 Revision Date: Rev: Document Number: 04/27/2017 MAN – FD102CV-C-1 Page 1 of 13 Installation and Operation Manual FD102CV-C-1 10.2” Widescreen LCD © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
-
Page 2: Table Of Contents
Operation Instructions ......................8 Monitor Control Buttons ......................8 Remote Control Buttons ......................9 Technical Drawing........................10 Technical Support ........................11 Instructions for Continued Airworthiness ................11 Warranty ...........................12 Log of Revisions ........................13 © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 3: General Information

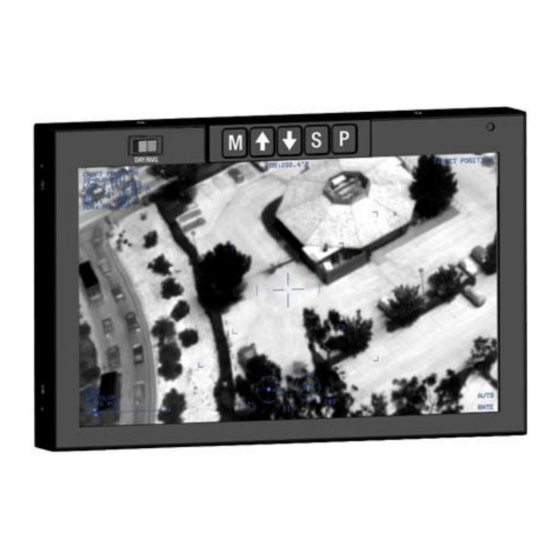

Page 3 of 13 General Information The FD102CV-C-1 is a special mission high resolution 10.2” widescreen LCD. The LCD features NVG technology which can be switched to Day or Night mode using the rocker switch. The FD102CV-C-1 will support composite video, s-video, VGA and DVI-D single link. -
Page 4: Specifications
16:9 Installation Instructions All cabin entertainment equipment, such as the FD102CV-C-1, should be installed on a non-essential bus and have a dedicated circuit breaker. It is a requirement that a switch be installed in the cockpit so that the pilot can de-energize the entertainment system should it become necessary. -
Page 5: Power
75Ohm video isolation transformer such as Deerfield Laboratory, Inc. Part No. 162-1 (www.deerfieldlab.com, (650) 632-4090). In most cases this should be added to the video output of the source. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 6: Vga Wiring
5 separate coaxial cables, color-coded to match the functions of the wires. Coax cables should be terminated using solder sleeve coaxial cable terminators, Raychem P/N: CWT-4174-W122-5/9 © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 7: Power/Video
Red Ground (Pin 6 on Standard VGA) Green Ground (Pin 7 on Standard VGA) Horizontal Sync (Pin 13 on Standard VGA) Vertical Sync (Pin 14 on Standard VGA) © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 8: Operation Instructions
Rev: Document Number: 04/27/2017 MAN – FD102CV-C-1 Page 8 of 13 Operation Instructions The FD102CV-C-1 is continuously on but can be de-energized by removing power from the entertainment system. Monitor Control Buttons Button Function Description © 2017 FDS Avionics Corp. -
Page 9: Remote Control Buttons
MAN – FD102CV-C-1 Page 9 of 13 Remote Control Buttons The remote control included with the FD102CV-C-1 contains the same functionality available on the display buttons, to include power, source, menu, and directional arrows. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. -
Page 10: Technical Drawing
Revision Date: Rev: Document Number: 04/27/2017 MAN – FD102CV-C-1 Page 10 of 13 Technical Drawing © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 11: Technical Support
04/27/2017 MAN – FD102CV-C-1 Page 11 of 13 Technical Support Should you have any questions concerning this product or other FDS Avionics Corp. products, please contact our Product Support representatives at 470-239-7421. FDS Avionics Corp. 6435 Shiloh Road Alpharetta, GA 30005... -
Page 12: Warranty
This warranty is not transferable. Any implied warranties expire at the express limited warranty expiration date. FDS shall not be held liable for any indirect, special, punitive, incidental or consequential damages. Some states do not allow limitation on the length of an implied warranty. In such states, the exclusions or limitations of this limited warranty may not apply. -
Page 13: Log Of Revisions
Rev: Document Number: 04/27/2017 MAN – FD102CV-C-1 Page 13 of 13 Log of Revisions Date Page Description 06/29/2012 Initial Release 4/27/2017 Company name change, Warranty, and format. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
