- Page 1 Revision Date: Rev: Document Number: 08/27/2014 MAN – FDPWRU28-2 Page 1 of 16 Installation and Operation Manual FD101DD-BH FD101DDARM-ML Dual 10.1” Widescreen LCDs © 2015 Flight Display Systems. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FlightDisplay.com...
-
Page 2: Man – Fdpwru28
Revision Date: Rev: Document Number: 08/27/2014 MAN – FDPWRU28-2 Page 2 of 16 FD101DD-BH (Bulk Head) FD101DDARM-ML (ARM) Dual 10.1” Widescreen LCDs © 2014 Flight Display Systems. All Rights Reserved. Flight Display Systems 6435 Shiloh Road Alpharetta, GA 30005 470-239-7400 Phone 678-867-6742 Fax sales@FlightDisplay.com... -
Page 3: Table Of Contents

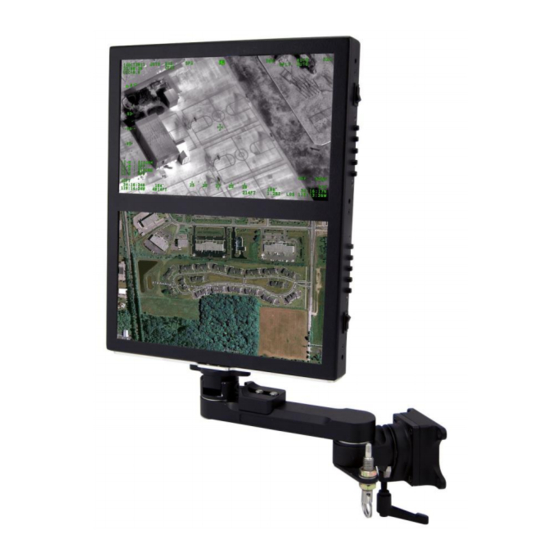

Log of Revisions ........................16 General Information The FD101DD-BH is a special mission 10.1” dual widescreen LCDs. This monitor has been designed with two embedded high resolution screens. Both top and bottom monitors, display an HDSDI input; When paired with the FDCONV-HDSDI-D additional inputs can be used and selected via the toggle switches on the side of the display. -
Page 4: General Information
Revision Date: Rev: Document Number: 08/27/2014 MAN – FDPWRU28-2 Page 4 of 16 Front View FD101DD-BH (Bulk Head Installed) FD101DDARM-ML Required Hardware FDCONV-HDSDI-D Converter(sold separately) © 2015 Flight Display Systems. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FlightDisplay.com... - Page 5 Revision Date: Rev: Document Number: 08/27/2014 MAN – FDPWRU28-2 Page 5 of 16 VGA Input (CH 1) COMP Input HDMI Input (CH 1) HDSDI Input (CH 1) HDSDI Output/Power Input VGA Input (CH 2) HDMI Input (CH 2) HDSDI Input (CH 2) ©...
-
Page 6: Specifications
Revision Date: Rev: Document Number: 08/27/2014 MAN – FDPWRU28-2 Page 6 of 16 Specifications Display Type 10.1” TFT Color LCD- Dual Supported Resolutions 1920x1080i Native Resolution 1024x600 Display Brightness 300 cd/ m Dimensions (including the ARM) 14.50”(W) x 15.05”(H) x 2.59”(D) LCD Dimension 9.80”(W) x 12.10”(H) Weight... -
Page 7: Wiring Instructions
Revision Date: Rev: Document Number: 08/27/2014 MAN – FDPWRU28-2 Page 7 of 16 Wiring Instructions When connecting the FD101DDARM-ML to the FDCONV-HDSDI-D(see diagram below): Pinout for FD101DDARM-ML HDSDI Input/Power Input Pinout for J5: Description Number Description Number 28VDC Power IN 28V Power Return 12VDC Power IN 12VDC Power OUT... - Page 8 Revision Date: Rev: Document Number: 08/27/2014 MAN – FDPWRU28-2 Page 8 of 16 P5 - 17W2 Combo-D Receptacle (Supplied w/ RG179 contacts) Connector Conec P/N: 3017W2SCM99A10X Coax Contacts Conec P/N: 132J30019X Signal Contacts Solder Cups DESCRIPTION NUMBER TOP DISPLAY - HDSDI INPUT BOTTOM DISPLAY - HDSDI INPUT 12 VDC (FROM FDCONV-HDSDI-D) 12 VDC RETURN (FROM FDCONV-...
-
Page 9: Operations Instructions
Revision Date: Rev: Document Number: 08/27/2014 MAN – FDPWRU28-2 Page 9 of 16 Operation Instructions Monitor Control Buttons Top & Bottom Monitor: BUTTON FUNCTION DESCRIPTION Rocker This rocker switch, allows the user to switch the 10” LCD between the input sources. Switch Power monitor on and off. -
Page 10: Faq
Revision Date: Rev: Document Number: 08/27/2014 MAN – FDPWRU28-2 Page 10 of 16 Frequently Asked Questions How do I navigate through the menus? Use the Menu button to open the menu. Use the Select button to chose the applicable menu page, and press Up to enter the selected menu page. -
Page 11: Technical Drawing
Revision Date: Rev: Document Number: 08/27/2014 MAN – FDPWRU28-2 Page 11 of 16 Technical Drawing © 2015 Flight Display Systems. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FlightDisplay.com... -
Page 12: Technical Drawing On Arm
Revision Date: Rev: Document Number: 08/27/2014 MAN – FDPWRU28-2 Page 12 of 16 Technical Drawing © 2015 Flight Display Systems. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FlightDisplay.com... -
Page 13: Troubleshooting
Revision Date: Rev: Document Number: 08/27/2014 MAN – FDPWRU28-2 Page 13 of 16 Troubleshooting Snow or Sweeping Lines Lines that slowly sweep up and down are a result of AC noise. This AC noise can be generated by a power cart on the aircraft. Take the power cart off of the aircraft. Be careful of inverter wiring, which can also cause noise. -
Page 14: Technical Support
For further product information, technical data and sample wiring diagrams, please click on the Dealers section of our web site at www.FlightDisplay.com Instructions for Continued Airworthiness The FD101DD-BH/FD101DDARM-LM are not designed to require regular general maintenance. © 2015 Flight Display Systems. TECHNICAL SUPPORT All Rights Reserved. -
Page 15: Warranty
This warranty is not transferable. Any implied warranties expire at the express limited warranty expiration date. FDS shall not be held liable for any indirect, special, punitive, incidental or consequential damages. Some states do not allow limitation on the length of an implied warranty. In such states, the exclusions or limitations of this limited warranty may not apply. -
Page 16: Log Of Revisions
Revision Date: Rev: Document Number: 08/27/2014 MAN – FDPWRU28-2 Page 16 of 16 Log of Revisions Date Page Description 03/10/2014 Initial Release © 2015 Flight Display Systems. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FlightDisplay.com...
