- Page 1 Revision Date: Rev: Document Number: 01/11/2017 MAN – FD171CV-C-4 Page 1 of 14 Installation and Operation Manual FD171CV-C-4 17” HDSDI Special Mission Quad Monitor Table of Contents © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
-
Page 2: Table Of Contents
Rear View with Connectors .......................9 Operation Instructions ......................10 Button Control ........................10-11 Technical Drawing........................11 Technical Support ........................12 Instructions for Continued Airworthiness ................12 Warranty ............................13 Log of Revisions .........................14 © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 3: General Information

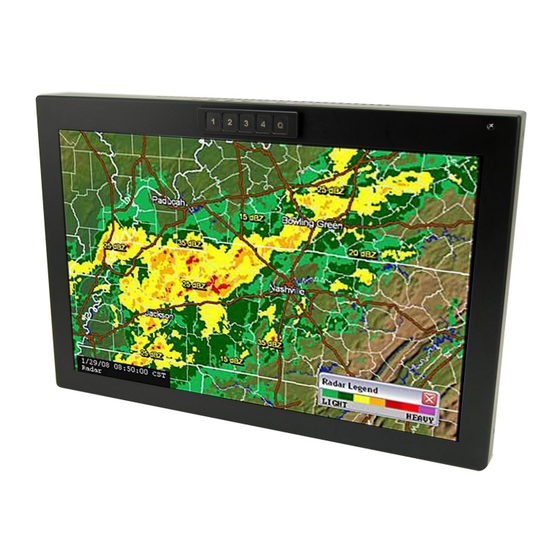

MAN – FD171CV-C-4 Page 3 of 14 General Information The FD171CV-C-4 is a special mission panel mounted 17” monitor with quad view HDSDI. Front View Additional Information The LCD supports 7 video source inputs. Four (4) HD-SDI inputs for the quad view, one (1) VGA, one (1) S-Video and one (1) composite. -
Page 4: Specifications
Test Certifications Installation Instructions All cabin equipment, such as the FD171CV-C-4, should be installed on a non-essential bus and have a dedicated circuit breaker. It is a requirement that a switch be installed in the cockpit so that the flight crew can de-energize the system should it become necessary. -
Page 5: Wiring Suggestions
Deerfield Laboratory, Inc. Part No. 162-1 (www.deerfieldlab.com, (650) 632-4090). In most cases this should be added to the video output of the source. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 6: Vga Wiring
Rev: Document Number: 01/11/2017 MAN – FD171CV-C-4 Page 6 of 14 VGA Wiring Coax cables should be terminated using solder sleeve coaxial cable terminators, Raychem P/N: CWT-4174-W122-5/9 © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 7: Power And Ground Wiring
Also, use short heavy gauge wire and a clean tight connection for ground. It is the installer's responsibility to understand the product's requirements to install the product in compliance with industry standards and safety. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. -
Page 8: Power/Video
P3 (HDSDI Loop-through Output) P4 – P7 (HDSDI Inputs 1 through 4) P8 (Quad HDSDI Output) Standard 75Ω BNC Plug (RG179 connector supplied) Description Center Video Signal Shell Video Return © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 9: Rear View With Connectors
Document Number: 01/11/2017 MAN – FD171CV-C-4 Page 9 of 14 Rear View * For Quad View to function properly a connection must exist between J8 and J2 © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 10: Operation Instructions
No pilot or aircrew action is necessary during flight or ground operation. The operator can change the video from the FD171CV-C-4 using the Source button on the top of the display (SDI, Analog, S-Video & Composite). When the SDI source is selected, the buttons on the front of the display will control the quad inputs to be displayed. -
Page 11: Technical Drawing
MAN – FD171CV-C-4 Page 11 of 14 Located on the front of the FD171CV-C-4 are 5 buttons for HDSDI quad control. With HDSDI source selected on the monitor, these buttons select the input to display. When “Q” is selected all 4 HDSDI inputs will be displayed. -
Page 12: Technical Support
01/11/2017 MAN – FD171CV-C-4 Page 12 of 14 Technical Support Should you have any questions concerning this product or other FDS Avionics Corp. products, please contact our Product Support representatives at (470) 239-7421. FDS Avionics Corp. 6435 Shiloh Road Alpharetta, GA 30005... -
Page 13: Warranty
Limited Warranty All FDS Avionics Corp. (FDS) products are warranted to be free from material or manufacturing defects for a period of 24 months from the date of shipment for General Aviation customers or 12 months from the date of shipment for Government/Special Mission customers. -
Page 14: Log Of Revisions
Description 01/23/13 Initial Release 6, 14, Removed viewing angle from Specs, Changed Address and 10/17/2014 warranty info. Company name change and formatting. No revision change 1/11/2017 necessary. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
