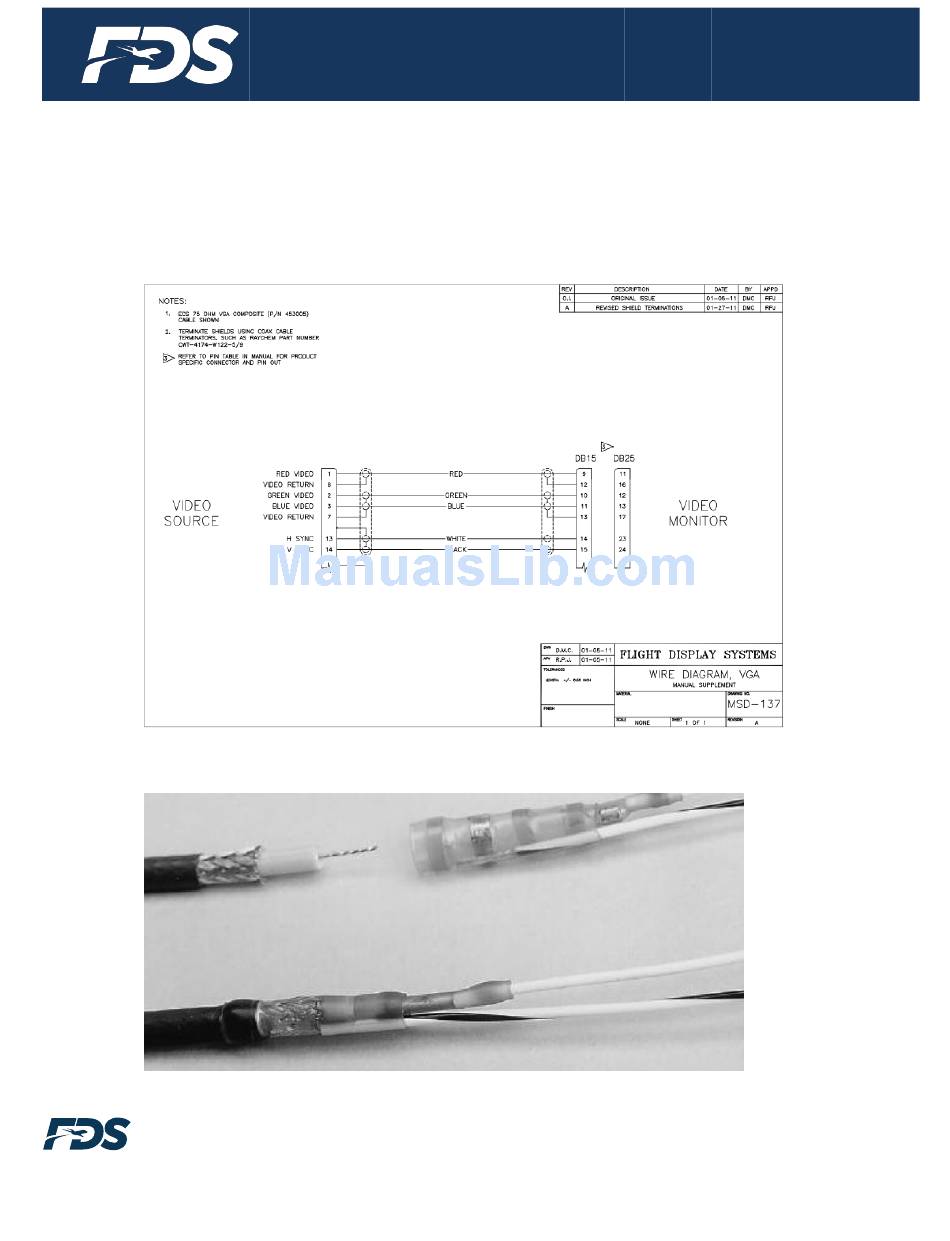

VGA Wiring

Recommended cable for VGA purpose is ECS P/N 453005. This is a single shielded cable
containing 5 separate coaxial cables, color-coded to match the functions of the wires.
We recommend coax cables be terminated using solder sleeve coaxial cable
terminators such as Raychem Part Number CWT-4174-W122-5/9.
© 2017 FDS Avionics Corp.
All Rights Reserved.
Document Number:
MAN – FD220CV-C-1
Revision Date:
Rev:
01/10/2017
C
Page 6 of 16
