Pin out for S-Video (Chrominance - C Component)
(Standard BNC – 75 OHM) – 31-242 (Supplied)
Pin
Center
Shell
Pin out for Composite Video
(Standard BNC – 75 OHM) – 31-242 (Supplied)
Pin
Center
Shell

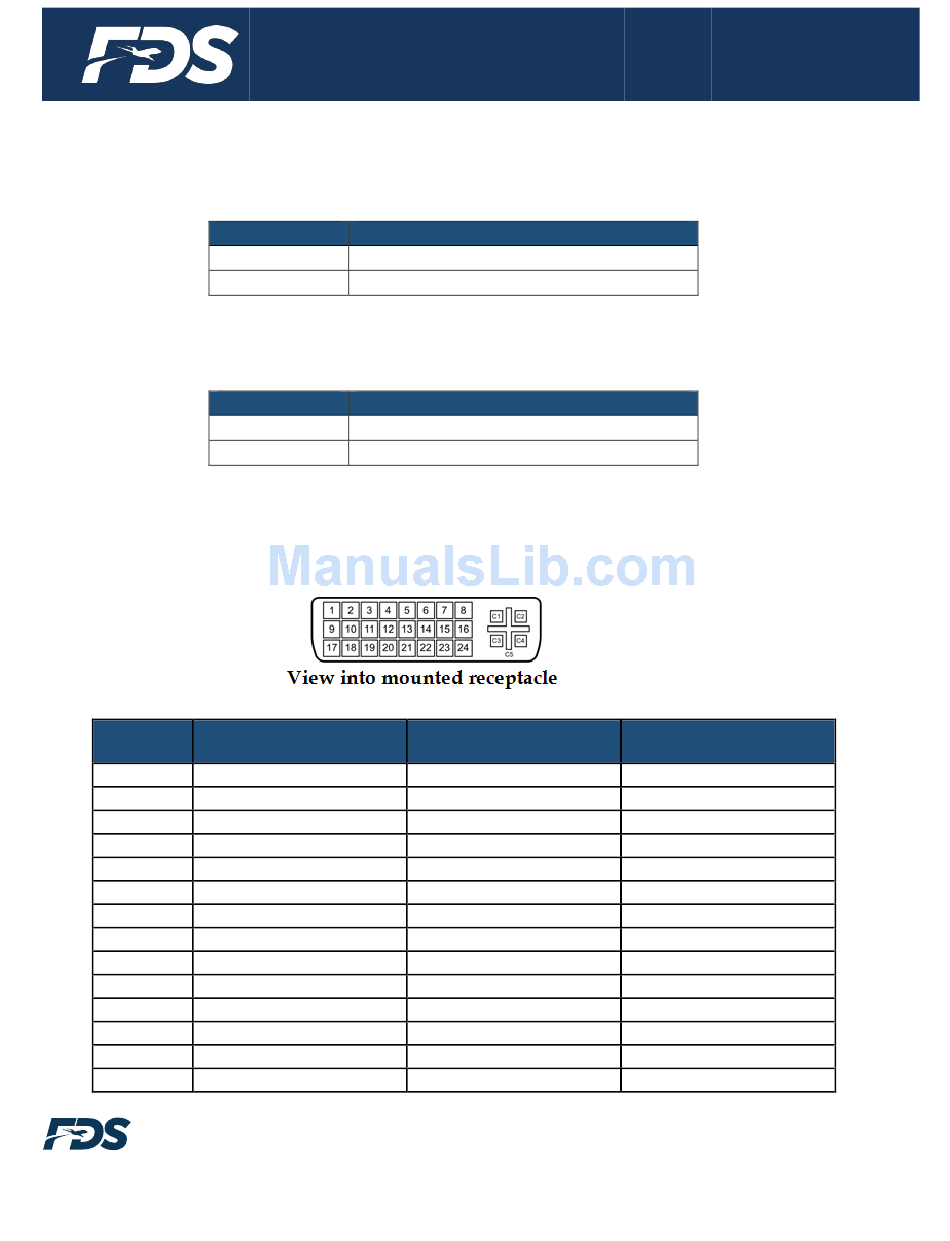

Pin out for DVI-D
Accepts a standard DVI-D (Single Link) male connector (supplied)
Pin
Description
Number
1
TMDS data 2-
2
TMDS data 2+
3
TMDS data 2 shield
4
N/C
5
N/C
6
DDC clock
7
DDC data
8
N/C
9
TMDS data 1-
10
TMDS data 1+
11
TMDS data 1 shield
12
N/C
13
N/C
14
+5 V
© 2017 FDS Avionics Corp.
All Rights Reserved.
Document Number:
MAN – FD220CV-C-1
Description
C Signal
C Return
Description
C Signal
C Return
Pin
Number
15
16
17
18
20
21
22
23
24
C1
C2
C3
C4
Rev:
C
Description
Ground
Hot plug detect
TMDS data 0-
TMDS data 0+
19
TMDS data 0 shield
N/C
N/C
TMDS clock shield
TMDS clock+
TMDS clock-
N/C
N/C
N/C
N/C
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Revision Date:
01/10/2017
Page 11 of 16
