VLT AQUA Drive
Operating Instructions

4. Mechanical installation

4.1. Before starting

4.1.1. Checklist

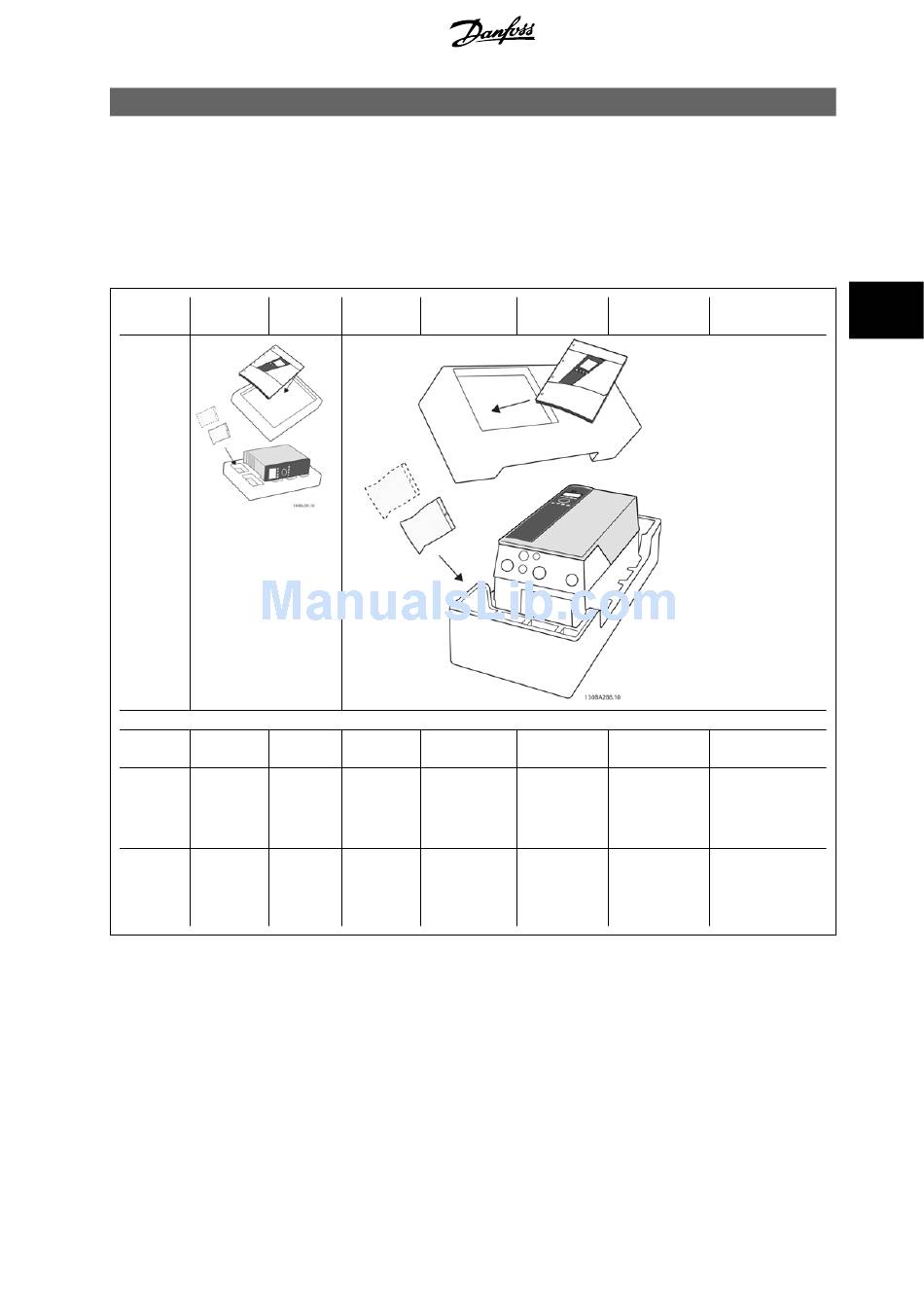

When unpacking the frequency converter, ensure that the unit is undamaged and complete. Use the following table to identify the packaging:
Enclosure A2
type: (IP 20/ 21)
Unit size (kW):
200-240 V 0.25-3.0
380-480 V 0.37-4.0
525-600 V 0.75-4.0
Table 4.1: Unpacking table
Please note that a selection of screwdrivers (philips or cross-thread screwdriver and torx), a side-cutter, drill and knife is also recommended to have
handy for unpacking and mounting the frequency converter. The packaging for these enclosures contains, as shown: Accessories bag(s), documentation
and the unit. Depending on options fitted there may be one or two bags and one or more booklets.
A3 A5 B1/B3
(IP 20/21) (IP 55/ 66) (IP20/ 21/ 55/ 66)
5.5-11/
3.7 0.25-3.7
5.5-11
11-18.5/
5.5-7.5 0.37-7.5
11-18.5
11-18.5/
5.5-7.5 0.75-7.5
11-18.5
®
MG.20.M5.02 - VLT is a registered Danfoss trademark
4. Mechanical installation
B2/B4 C1/C3
(IP20/ 21/ 55/66) (IP20/21/ 55/66)
15/ 18.5-30/
15-18.5 22-30
22-30/ 37-55/
22-37 45-55
22-37/ 45-55/
22-37 45-55
4
C2/C4
(IP20/21/ 55/66)
37-45/
37-45
75 - 90/
75-90
75 - 90/
75-90
13
