7. How to operate the frequency converter
7.1.11. Initialisation to Default Settings
There are two ways to initialise the frequency converter to default: Recommended initialisation and manual initialisation.
Please be aware that they have different impact according to the below description.
Recommended initialisation (via par. 14-22 Operation
1. Select par. 14-22 Operation
2. Press [OK]
3. Select "Initialisation" (for NLCP select "2")
4. Press [OK]
5. Remove power to unit and wait for display to turn off.
6. Reconnect power and the frequency converter is reset. Note
that first start-up takes a few more seconds.
7. Press [Reset]
NB!
Parameters selected in par. 0-25 My
7
Manual initialisation
NB!
When carrying out manual initialisation, serial communication, RFI filter settings and fault log settings are reset.
Removes parameters selected in par. 0-25 My
1. Disconnect from mains and wait until the display turns off.
2a. Press [Status] - [Main Menu] - [OK] at the same time while
power up for Graphical LCP (GLCP).
2b. Press [Menu] while power up for LCP 101, Numerical Display
3. Release the keys after 5 s.
4. The frequency converter is now programmed according to
default settings.
7.1.12. RS-485 Bus Connection
One or more frequency converters can be connected to a controller (or
master) using the RS-485 standard interface. Terminal 68 is connected
to the P signal (TX+, RX+), while terminal 69 is connected to the N signal
(TX-,RX-).
If more than one frequency converter is connected to a master, use par-
allel connections.
In order to avoid potential equalizing currents in the screen, earth the cable screen via terminal 61, which is connected to the frame via an RC-link.
Bus termination
The RS-485 bus must be terminated by a resistor network at both ends. If the drive is the first or the last device in the RS-485 loop, set the switch S801
on the control card for ON.
For more information, see the paragraph
60
Mode
)
Mode
Personal Menu
, will stay present, with default factory setting.
Personal Menu
Switches S201, S202, and S801
.
MG.20.M5.02 - VLT
Mode
par. 14-22 Operation initialises all except:
Filter
par. 14-50 RFI
par.
par.
par. 8-32 Baud Rate
Response Delay
par. 8-35 Minimum
Response Delay
par. 8-36 Maximum
par. 8-37 Maximum Inter-Char Delay
Hours
par. 15-00 Operating to par. 15-05 Over
par. 15-20 Historic Log: Event to par. 15-22 Historic
Log: Error Code
par. 15-30 Alarm
.
This parameter initialises all except:
par. 15-00 Operating Hours
Up's
par. 15-03 Power
Temp's
par. 15-04 Over
par. 15-05 Over Volt's

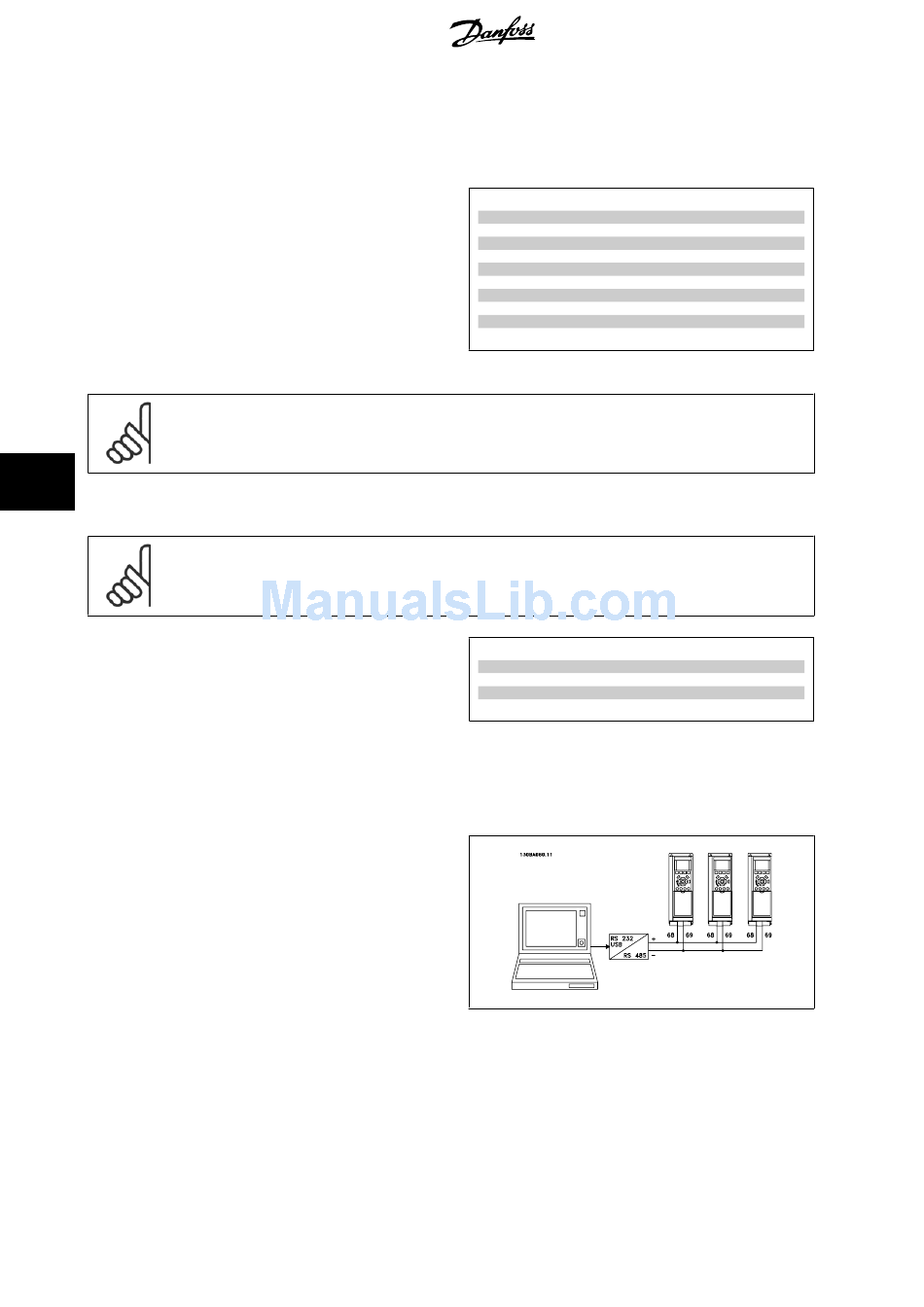

Illustration 7.9: Connection example.
®
is a registered Danfoss trademark
®
VLT AQUA Drive
Operating Instructions
Volt's
Log: Time
Log: Time
to par. 15-32 Alarm
