5.1.13. Motor connection for A2 and A3
Follow these drawings step by step for connecting the motor to the frequency converter.

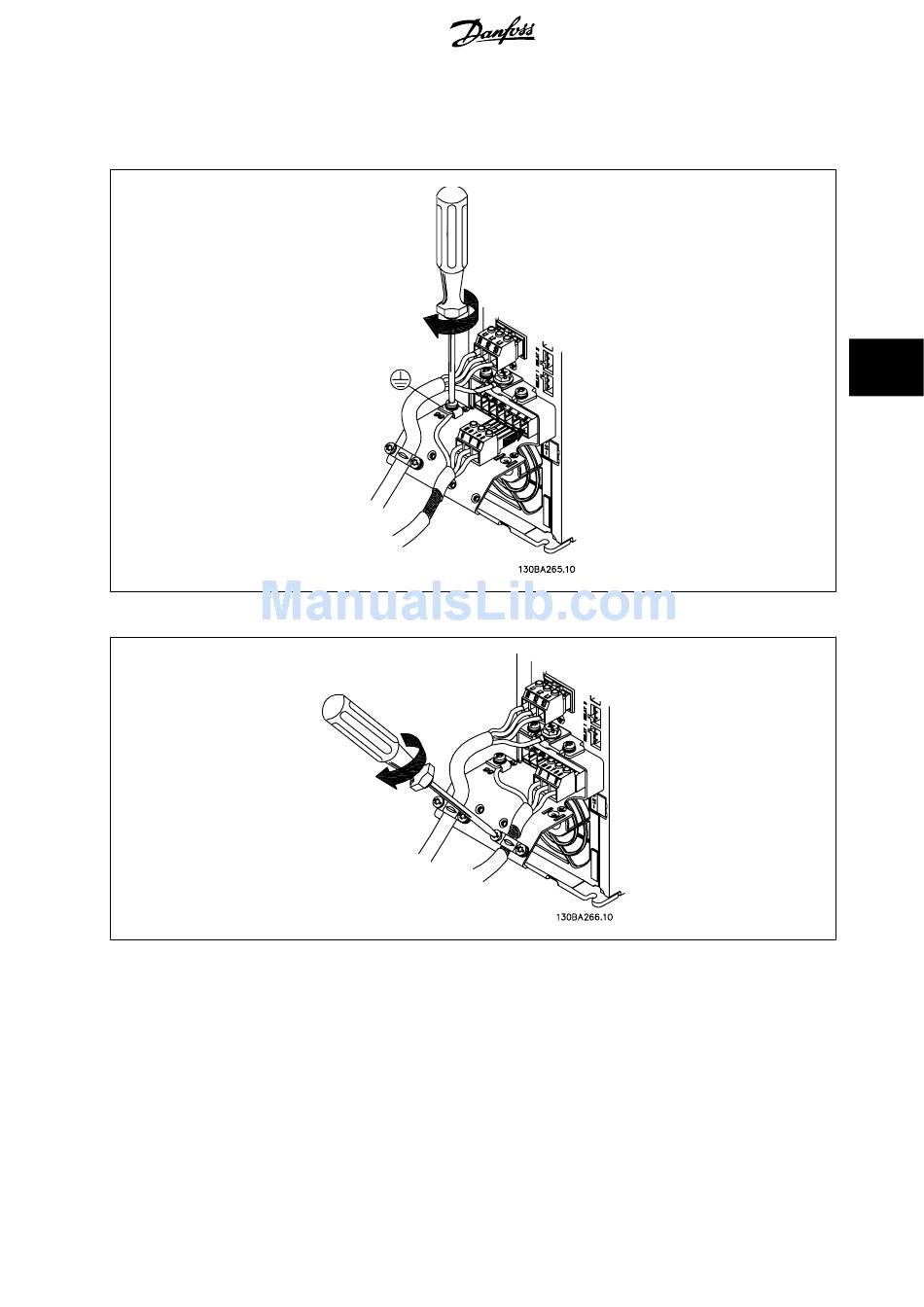

Illustration 5.20: First terminate the motor earth, then place motor U, V and W wires in plug and tighten.
Illustration 5.21: Mount cable clamp to ensure 360 degree connection between chassis and screen, note the outer insulation of the motor cable is
removed under the clamp.
®
