VLT AQUA Drive
Operating Instructions
5.1.16. Motor connection for B3 and B4

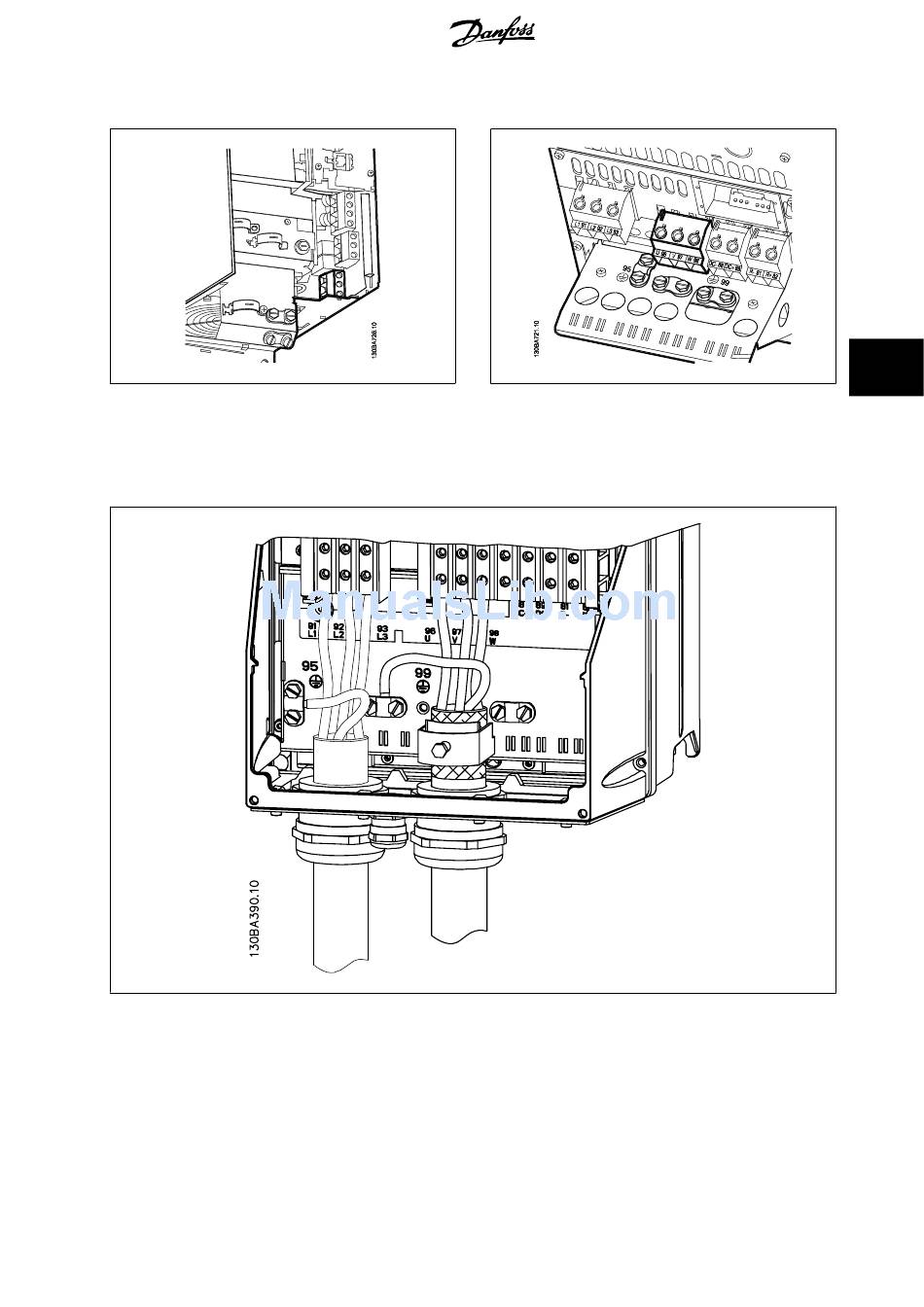

Illustration 5.24: First terminate the motor earth, then Place motor U,
V and W wires in terminal and tighten. Please ensure that the outer
insulation of the motor cable is removed under the EMC clamp.
5.1.17. Motor connection for C1 and C2
Illustration 5.26: First terminate the motor earth, then Place motor U, V and W wires in terminal and tighten. Please ensure that the outer insulation
of the motor cable is removed under the EMC clamp.
Illustration 5.25: First terminate the motor earth, then Place motor U,
V and W wires in terminal and tighten. Please ensure that the outer
insulation of the motor cable is removed under the EMC clamp.
®
MG.20.M5.02 - VLT is a registered Danfoss trademark
5. Electrical installation
5
33
