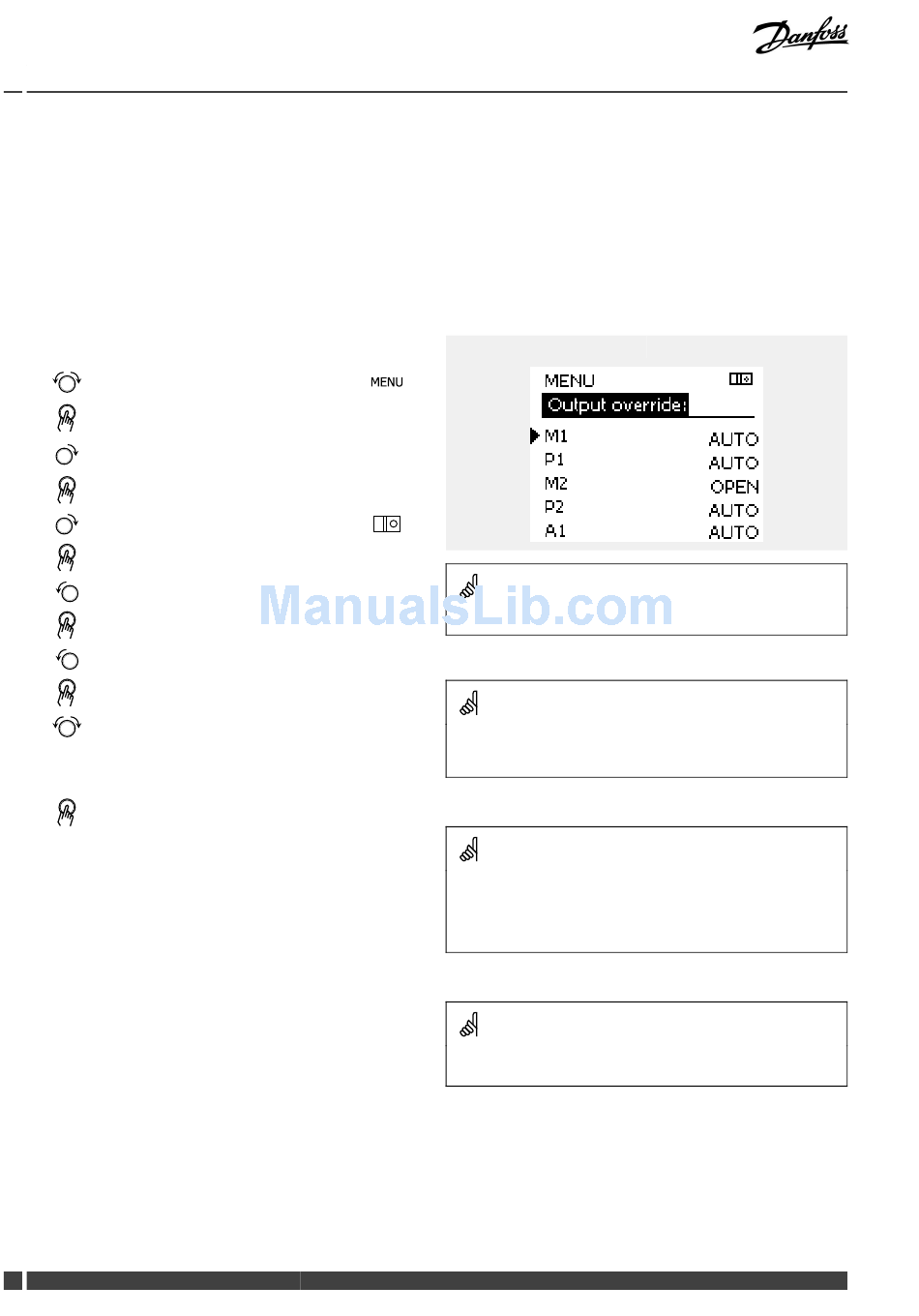

7.5 Output override

This section describes the function in general for the ECL Comfort
210 / 296 / 310 series. The shown displays are typical and not
application related. They might differ from the displays in your
application.
The output override is used to disable one or more of the controlled
components. This could among others be useful in a service
situation.
Action: Purpose:
Choose 'MENU' in any of the overview
displays
Confirm
Choose the circuit selector at the top
right corner in the display
Confirm
Choose common controller settings
Confirm
Choose 'Output override'
Confirm
Choose a controlled component
Confirm
Adjust the status of the controlled
component:
Motorized control valve: AUTO, STOP,
CLOSE, OPEN
Pump: AUTO, OFF, ON
Confirm status change
Remember to change the status back again as soon as an override
is not required any longer.
98 DEN-SMT/DK
ECL Comfort 310, application P318
Examples:
M1, P1 etc.
Controlled components
"Manual control" has higher priority than "Output override".
When the selected controlled component (output) is not 'AUTO' , the
ECL Comfort controller does not control the component in question
(pump or motorized control valve e.g.). Frost protection is not active.
The speed controlled pumps V1, V2 and V3 are controlled by 0 - 10 Volt
(0 - 100%) or PWM signals. Each of them can be set to AUTO or ON.
AUTO: Normal control (0 - 100%)
ON: The 0 - 10 Volt or PWM signal is set to the %-value, set below the
indication 'ON'.
When output override of a controlled component is active the symbol
' ! ' is shown to the right of the mode indicator in the enduser displays.
VI.JM.Q3.02
Circuit selector
