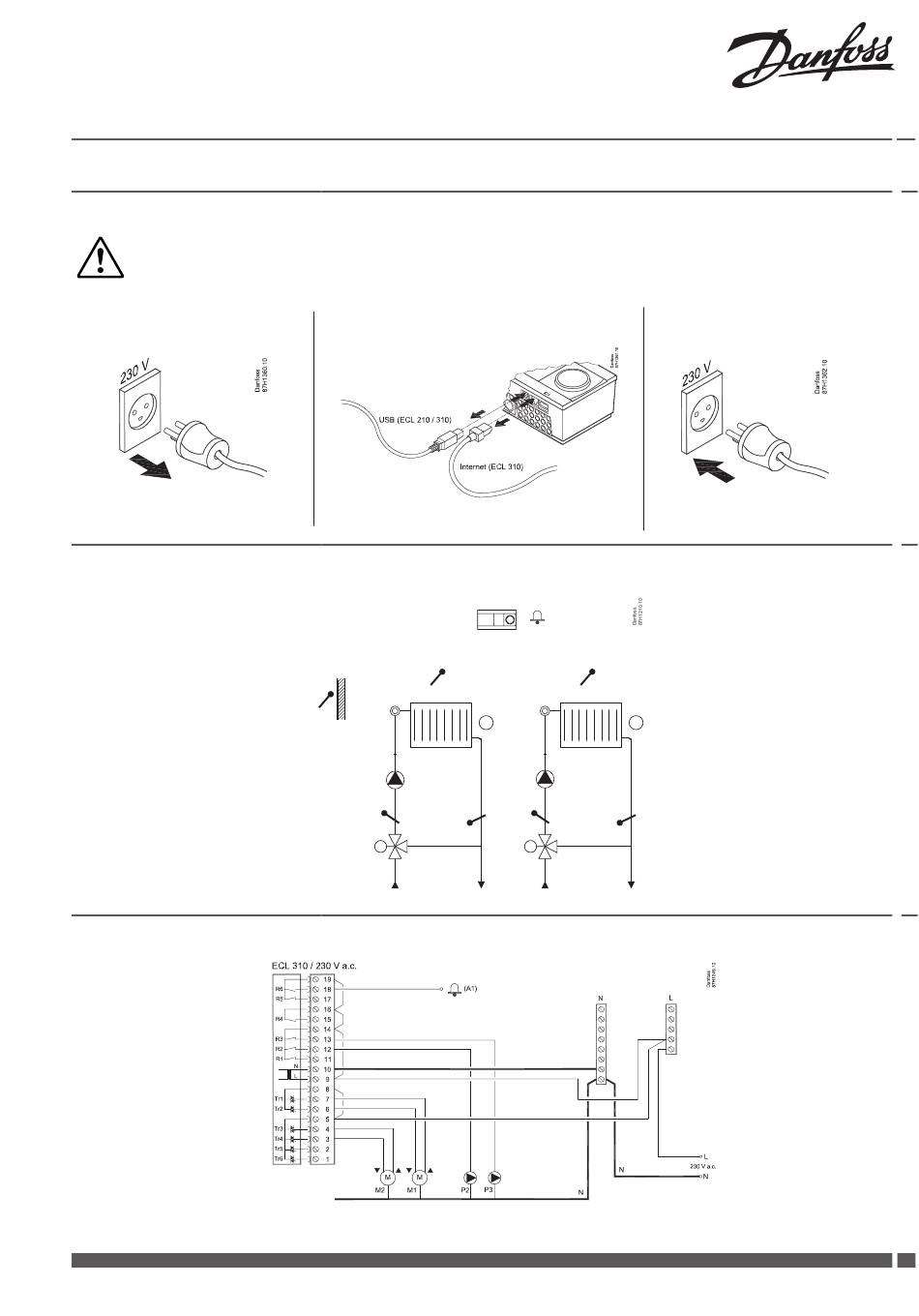

Mounting Guide

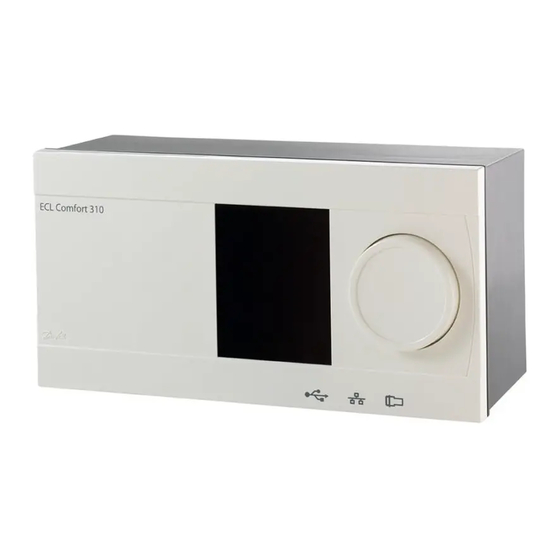

ECL Comfort 310, P330
(code no. 087H3840)
P330.1
ECL 310
A1
+ECA 32
S13
S14
S1
1
2
P2
P3
S5
S6
S3
S4
M1
M2
Danfoss District Energy
VI.GU.P2.00
DEN-SMT/DK
