Access To Control Terminals; Electrical Installation, Control Terminals - Danfoss VLT AutomationDrive FC 302 Operating Instructions Manual

How to Install
Installation of 24 V external DC Supply
Torque: 0.5 - 0.6 Nm (5 in-lbs)
Screw size: M3
No.
35 (-), 36 (+)
3 3
Table 3.52 Terminals for 24 V External DC Supply
24 V DC external supply can be used as low-voltage supply
to the control card and any option cards installed. This
enables full operation of the LCP (including parameter
setting) without connection to mains. Note that a warning
of low voltage is given when 24 V DC has been connected;
however, there is no tripping.
WARNING
Use 24 V DC supply of type PELV to ensure correct
galvanic isolation (type PELV) on the control terminals of
the frequency converter.

3.5.21 Access to Control Terminals

All terminals to the control cables are located beneath the
LCP. They are accessed by opening the door of the IP21/
IP54 version or removing the covers of the IP00 version.
3.5.22 Electrical Installation, Control
Terminals

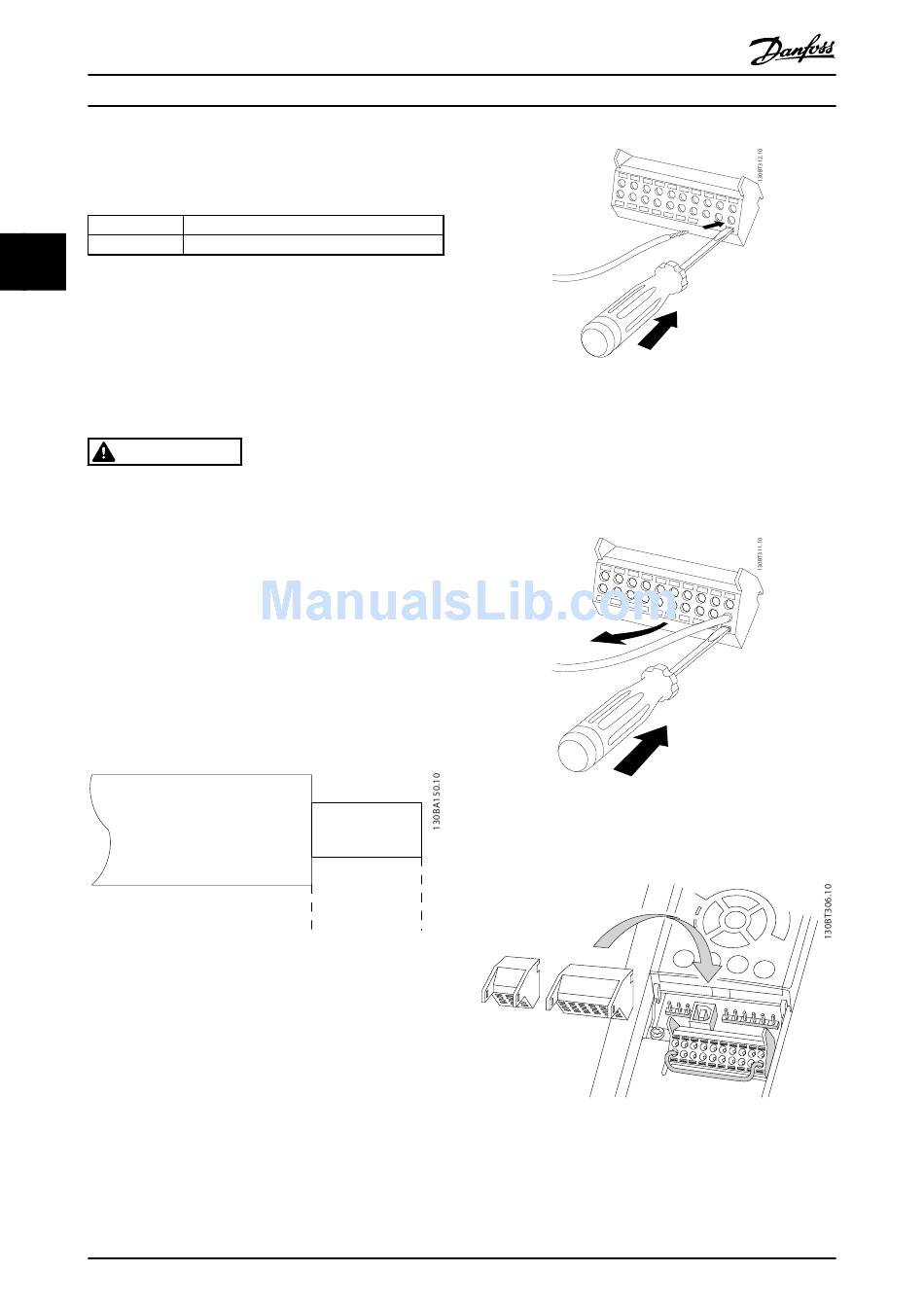

To connect the cable to the terminal
1. Strip insulation by about 9-10 mm
Illustration 3.70 Stripping of Insulation
2.
Insert a screwdriver
3. Insert the cable in the adjacent circular hole.
72
VLT
Function
24 V external DC supply
9 - 10 mm
(0.37 in)
1) in the square hole.
®
Automation Drive FC 300 Operating Instructions
Illustration 3.71
4. Remove the screwdriver. The cable is now
mounted in the terminal.
To remove the cable from the terminal
1.
Insert a screw driver
2. Pull out the cable.
Illustration 3.72
1) Max. 0.4 x 2.5 mm
Illustration 3.73
MG33U402 - Rev. 2013-12-16
1) in the square hole.
