How to Install
EARTH
TERMINALS

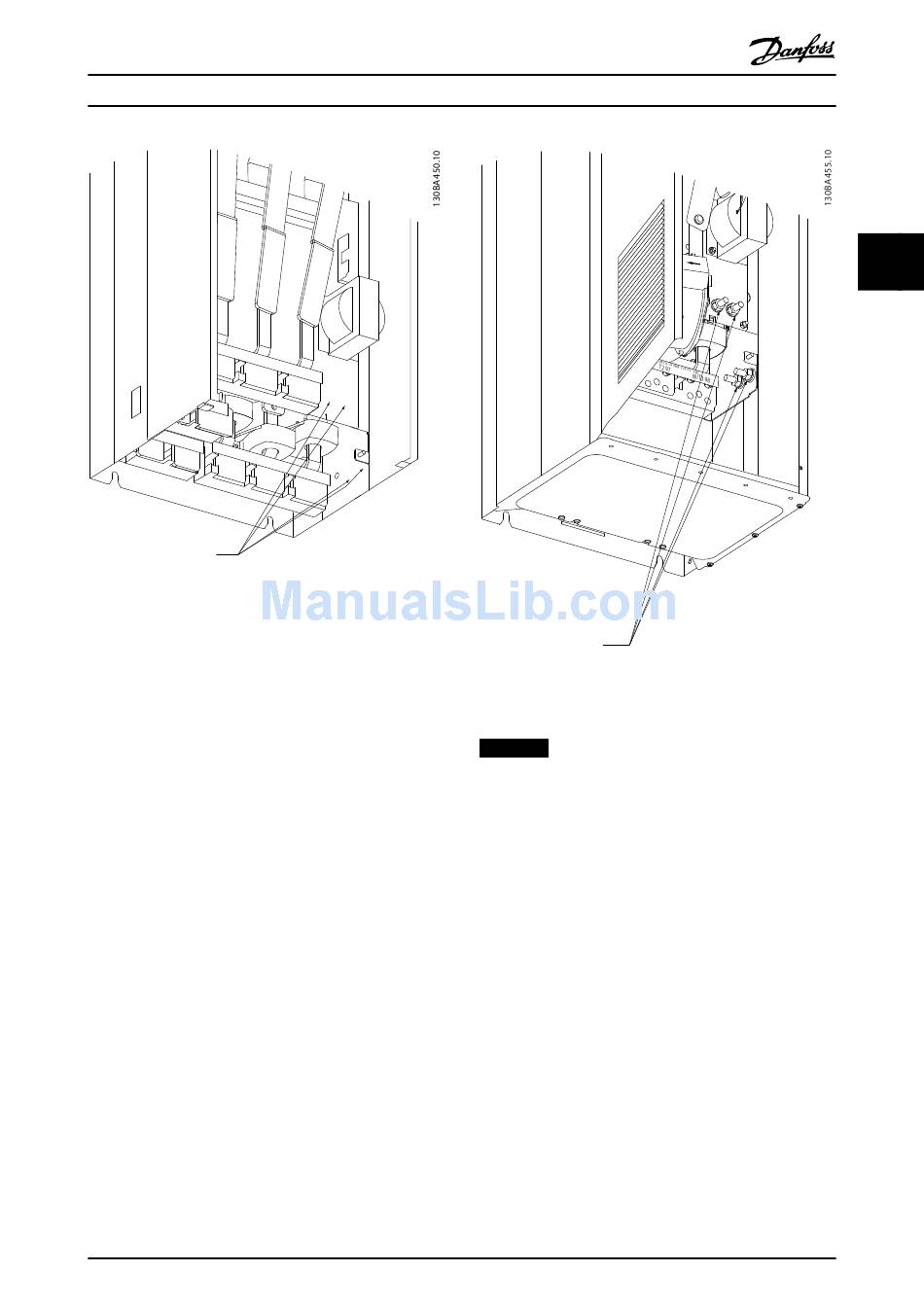

Illustration 3.54 Position of Earth Terminals IP00, Enclosure
Type D
®
VLT
Automation Drive FC 300 Operating Instructions
Illustration 3.55 Position of Earth Terminals IP21 (NEMA type
1) and IP54 (NEMA type 12)
NOTICE
D2 and D4 shown as examples. D1 and D3 are
equivalent.
MG33U402 - Rev. 2013-12-16
EARTH
TERMINALS
3
3
47
