How to Install

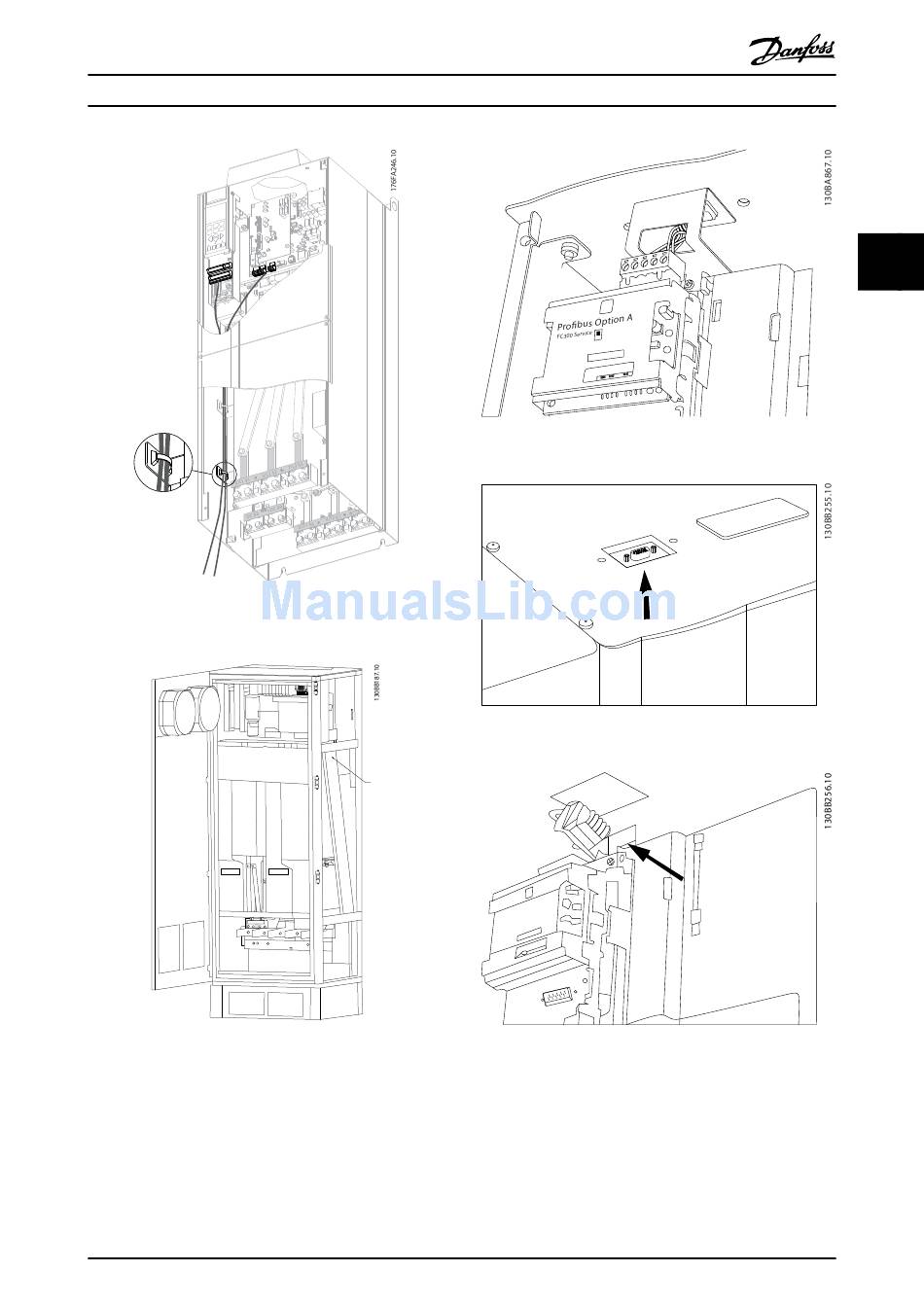

Illustration 3.65 Control Card Wiring Path for the D3. Control
Card Wiring for the D1, D2, D4, E1 and E2 use the same Path
Illustration 3.66 Control Card Wiring Path for the F1/F3.
Control Card Wiring for the F2/F4 use the same Path
In the Chassis (IP00) and NEMA 1 units, it is also possible
to connect the fieldbus from the top of the unit as shown
in the following pictures. On the NEMA 1 unit a cover
plate must be removed.
Kit number for fieldbus top connection: 176F1742
®
VLT Automation Drive FC 300 Operating Instructions
Illustration 3.67 Top Connection for Fieldbus.
Illustration 3.68
1
Illustration 3.69
