1.4.3 THE SEVEN RECEIVER DISPLAYS

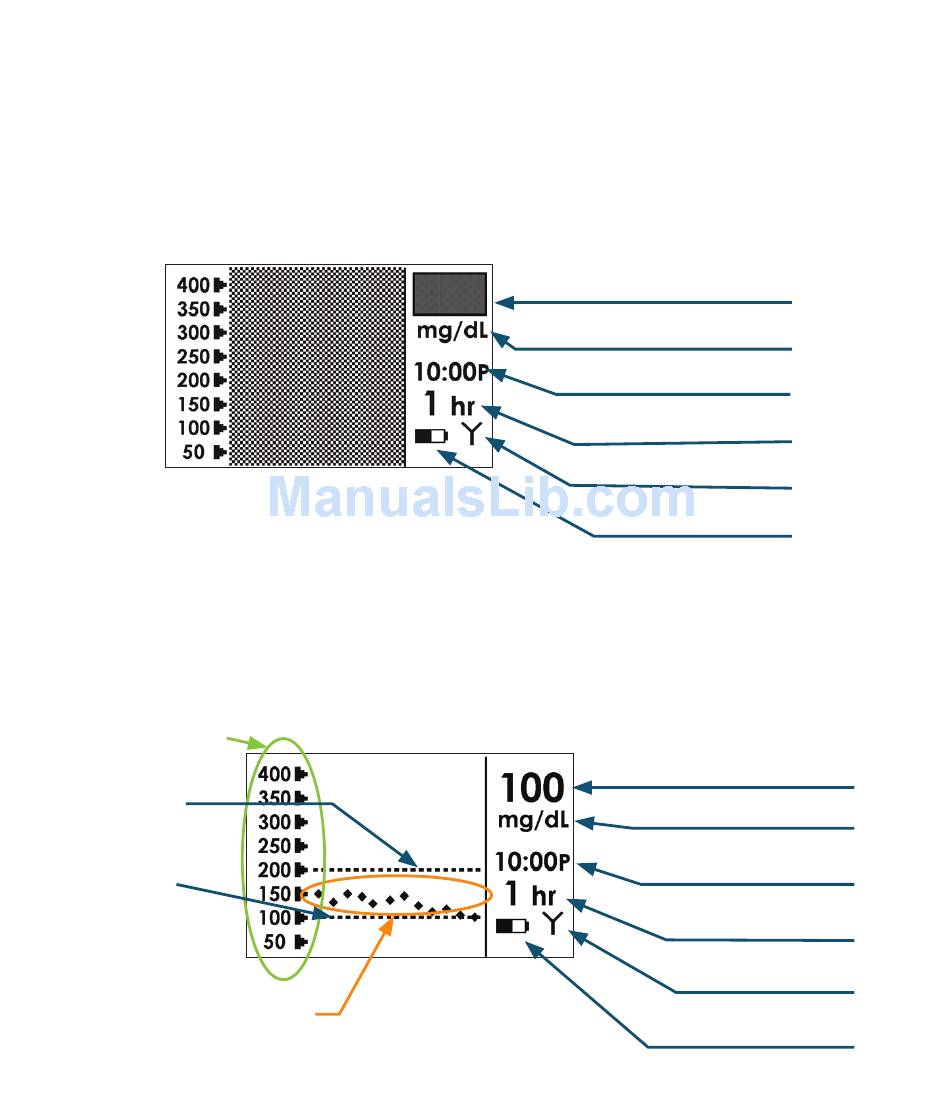

SEVEN SYSTEM "OFF" MODE:
•
You will see this screen when the Seven System is in "off" mode (is not reading)
•
This screen will show that a Sensor is not inserted and a session ended more than
one hour ago
•
If you are in the Start-Up Period, the screen and Status Box will be partially shaded
SEVEN SYSTEM "ON" MODE:
•
This screen will show if the System is in "on" mode:
»
The Seven System must be in calibration (a glucose reading will be showing)
»
The Receiver and Transmitter are in range (the Y symbol will be showing)
•
In this example, the Seven System has been on for the past hour, and the glucose
readings for the past hour are showing.
Glucose Reading Axis
High Glucose
Alert Level
Low Glucose
Alert Level
Glucose Readings
from Past Hour
Current Glucose Reading
Glucose Units
Current Time
1-Hour Trend
Antenna
Battery
Current Glucose Reading/
Glucose Units
Current Time (A/P)
1-Hour Trend
Battery Life Indicator
Seven System User's Guide | 29
™
Status Box
Antenna
