・ "Camera Device Information"
"Camera Device Information" Items
(ID, Segment Partition, Live Image Resolution, Rotate Image, Reverse Image, Update Black
Balance, Zoom, Scroll Position, Auto View, PC Lock and Lock Remote Control can be set. Other
items are for display only and the settings cannot be changed.)
ID
TYPE
Nickname
FC-AL node
IP Address
MAC Address
CID
DRP Version
Archive
HD-Mag
Memory
Master/Slave
Memory Segment
Live Image Resolution Live image resolution(Only fx camera)
Rotate Image
Reverse Image
BATT.STATUS
(NONE: no battery, SMALL: limited charge, MIDDLE: medium charge, LARGE: high
charge)
Video Output
Auto View
Video Out
All Camera Auto View Auto View setting(Only indivisal)
PC Lock
Lock Remote Control
Update Black Balance Black Balance calculation
Zoom
X Scroll Position
Y Scroll Position
Rotate Video
(00292)H

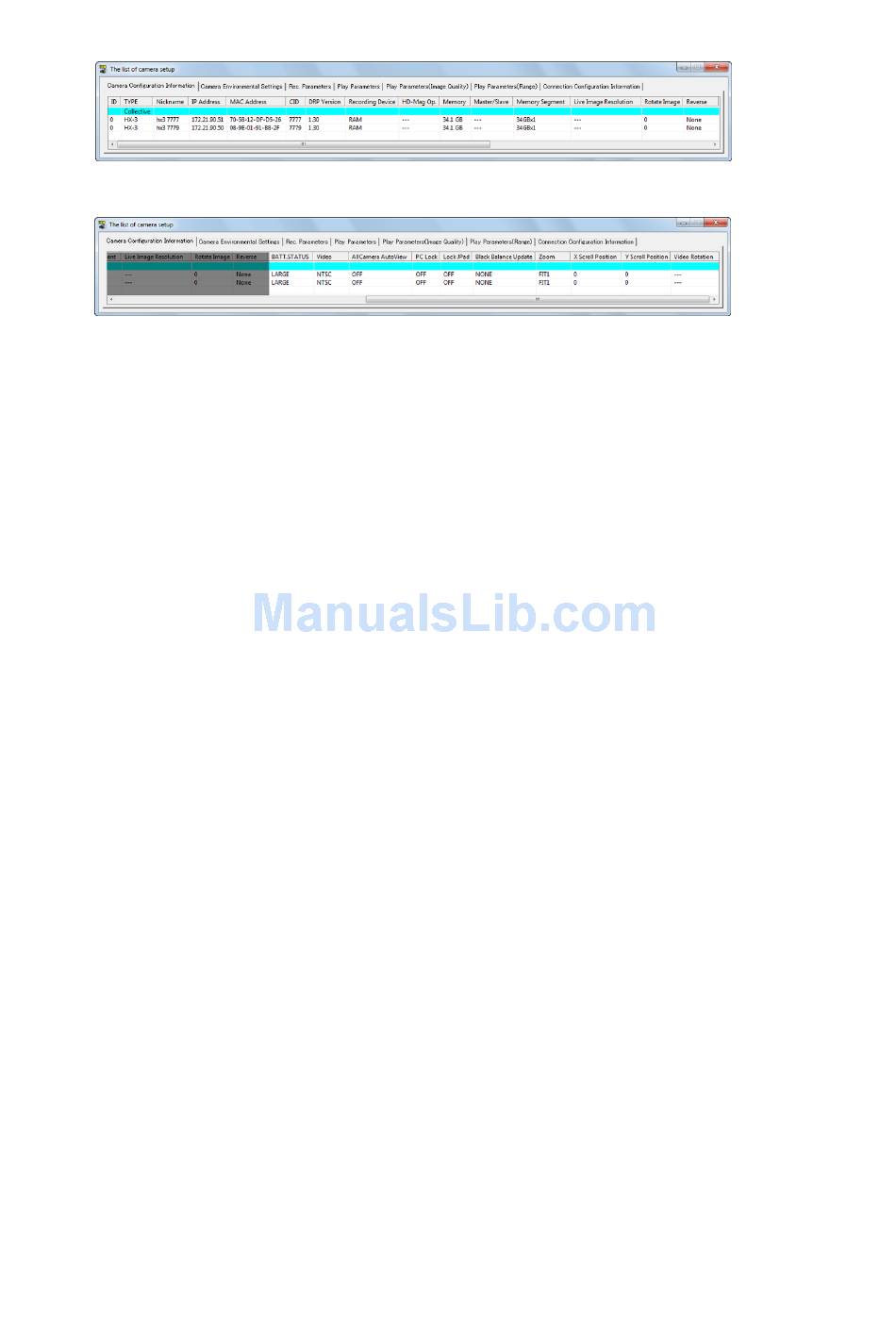

Camera Device Information (HX Camera Connection) 1
Camera Device Information (HX Camera Connection) 2
Camera (DRP) ID
Camera (DRP) type
Camera (DRP) nickname (refer to page 4-2)
Camera (DRP) fiber channel node name (shown with FC-AL connection)
Camera (DRP) IP Address (shown with TCP/IP or Gbit connection)
Camera (DRP) MAC Address (shown with TCP/IP or Gbitconnection)
Camera (DRP) identification number
Camera (DRP) firmware version
Select the destination to save the HX camera image (RAM/HD-Mag)
Shows the HD-Mag status for the HX camera option (HX-1 option)
Maximum recording memory
If multiple camera heads, the memory used for each camera head.
Camera synchronization master, synchronization slave settings
Memory for one segment, and number of segments
Image rotation angle
Image reverse direction
Battery status
Video output method (NTSC/PAL)
Auto View setting
Video output method (NTSC/PAL)
Operation locks status from PC(Only indivisal)
Operation lock status from remote control(Only indivisal)
Video display zoom setting
Video display X scroll setting
Video display Y scroll setting
Rotation angle of video display
