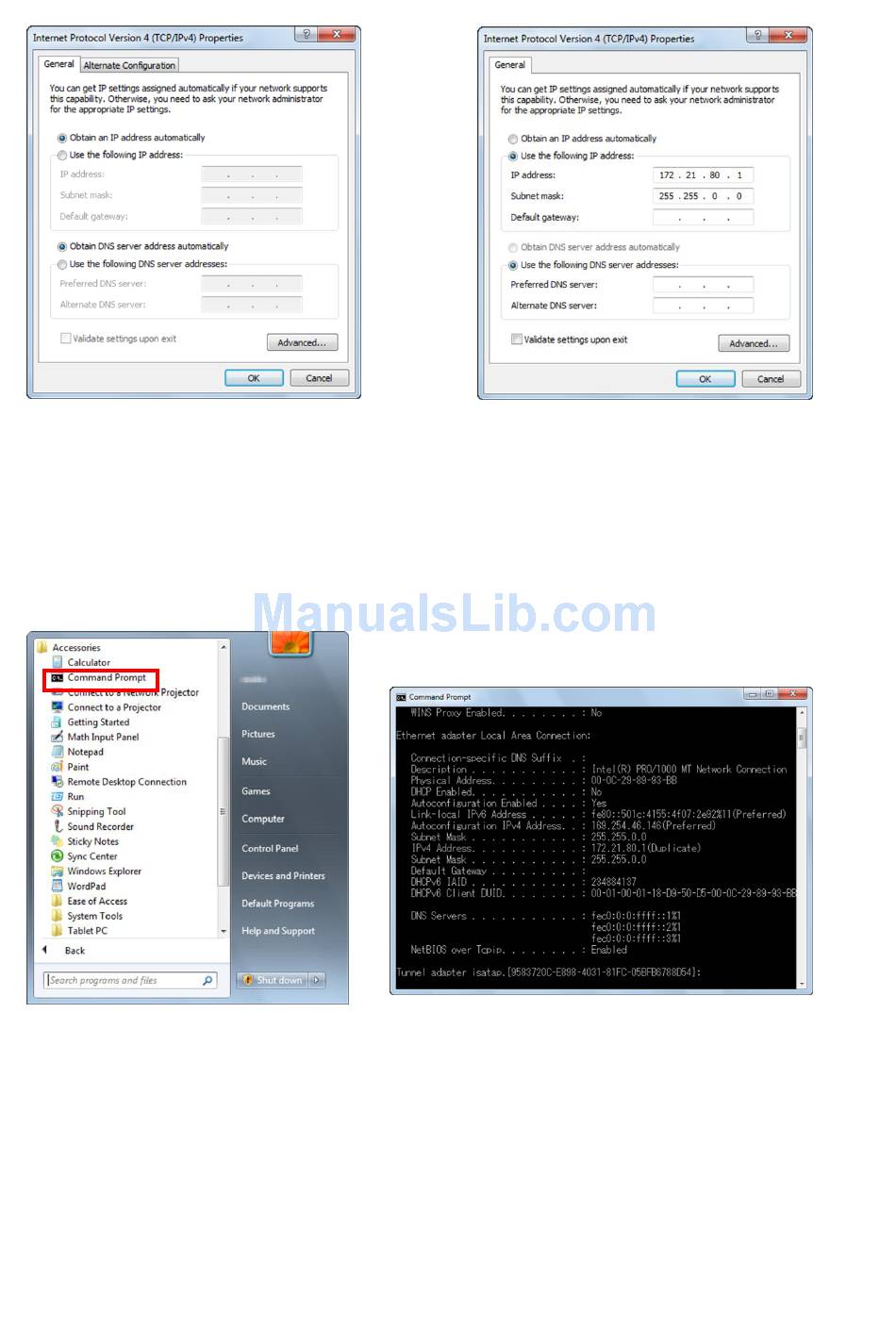

As shown in the figure on the right, set the PC IP address to 172.21.80.1 and set the subnet mask to
255.255.0.0.
Click OK for "Internet Protocol (TCP/IP) Properties", and then click OK for the "Local Area
Connection Properties" to confirm the settings. Close the "Local Area Connection Status" window.
Confirm the IP address set for the PC by performing the ipconfig command with the command
prompt.
Open accessories from the Windows start button and click "Command Prompts" to open.
Type in ipconfig and press Enter to display the PC IP address.
(*)If the PC IP address for the IP address setting is set to something other than 172.21.80.1, set the
PC IP address the same as that for the camera IP address.
At this point, communication is not possible if the PC and the camera don't have the same LAN IP
address set, so in the example, the IP address for both the PC and the camera must be 172.21.*.* . If
the camera IP address is changed, refer to the user's manual for the camera.
■For an FC-AL connection, before installing the MEMRECAM HXLink, the FC-AL host bus
adapter driver should be installed by attaching the FC-AL host bus adapter to the PC.
Refer to Appendix E for Windows8, or later.
