800424-0A

High Speed Camera System

Model ST-857

User's Manual

FEB 2017

Table of Contents

Need help?

Do you have a question about the MEMRECAM HX-7S and is the answer not in the manual?

Questions and answers

Summary of Contents for NAC Image Technology MEMRECAM HX-7S

Page 1 800424-0A High Speed Camera System Model ST-857 User's Manual FEB 2017...
Page 3: Read Before Use
Read before Use Information to the User FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 4 KC marking Company / Manufacturer nac Image Technology Inc. Country of Origin Japan Product name Basic Model no. Cert. no. MEMRECAM HX-7S MODEL V-1001 MSIP-REM-nac-V-1001 J-PAD3 MODEL CR-1011 MSIP-REM-nac-CR-1011 A 급 기기 (업무용 방송통신기자재) 이 기기는 업무용(A 급) 전자파적합기기로서 판매자 또는 사용자는 이 점을...
Page 5: Features Of This Device
Superior Performance The Memrecam HX-7S is provided with HXLink software for remote operation via a computer. As an option the J-PAD3 Hand Held Remote Controller and Viewfinder allow the user to setup up the camera, display live images on the Viewfinder or Monitor and record and playback the images without a computer.
Page 6 Flexible data storage to external USB stick or Cfast cards Memory Backup The Memrecam HX-7S has a built in Memory Backup Battery function that protects against the loss of valuable data and images during unexpected loss of power to the camera for up to one hour.
Page 7 Reproduction of all or part of this manual without the express written consent from NAC Image Technology, Inc. is prohibited. The contents of this manual may be changed without notification. Copyright (C) 2017 NAC Image Technology, Inc. The copyright for this manual is owned by NAC Image Technology, Inc. (00424)
Page 8: Safety Precautions
Safety Precautions Safety Precautions Please adhere to the following precautions to prevent bodily injury or damage. ■ Distinctions between the levels of bodily injury and damage. The distinctions between the levels of bodily injury and damage occurring from improper use are described below.
Page 9 Safety Precautions Using the AC Adapter ● Only use the Memrecam HX-7S dedicated AC adapter with the Memrecam HX-7S camera. (Malfunction or fire may occur.) (00424)
Page 10 ⇒ Do not use in dirty, dusty or humid locations. ● Do not subject to strong vibration or impact The MEMRECAM HX-7S does not have vibration or impact resistance properties based on actual impact testing. If subjected to strong impact or vibration a malfunction or injury may occur.
Page 11 Safety Precautions Using the AC Adapter ● Do not dismantle or alter (Do not loosen the screws on the AC adapter or open the cover even if the AC adapter malfunctions.) ⇒ Contact the store where purchased for inspection・maintenance・repair. ● Do not use in locations with smoke, flammable or corrosive gases and strong magnetic fields A malfunction, injury or fire may occur.
Page 12 ● Do not interfere with the release of heat from the camera The Memrecam HX-7S has a fan that cools the camera. Do not block the intake ports or vents. Do not place the camera where there is no air circulation on carpet or bedding.
Page 13 Problems may occur depending on the use of and conditions of the camera. Therefore, carefully read this manual in addition to HXLink Users Guide regarding handling the camera and use of peripheral devices. Contact your service center for additional questions about the use of the Memrecam HX-7S camera. (00424)
Page 14 ■ Warning Labels There are warning labels located on the Memrecam HX-7S camera that require precautions for safe use. Please read these warnings before operating. Please read the HXLink Users Guide or Instruction Manual for safe and proper use. Contact your service center for additional questions.
Page 15: This Booklet
This Booklet This Booklet About the notation in the text Indicates the page referenced  A (00424)
Page 16: Table Of Contents
Table of Contents Table of Contents Read before Use ............. 1 Frame advance ・ Fast Forward ・ Quick Reverse Features of this Device .......... 3 ................3-30 Safety Precautions ..........6 Jump to a Specific frame ........3-31 This Booklet ............13 Change the Playback Speed ........
Page 17 Table of Contents Set the Contents of the Trigger Time Display ..8-12 ５ Live Image Settings Set the Contents of the Frame Counter Display ................8-13 Items that Can be Set for the Live Display ..5-2 Select the Standard Frame Time .......8-16 Zoom the Live Image ..........
Page 18 Table of Contents １１ Index Index ..............11-2 (00424)
Page 19: Introduction
Introduction Check the Standard Components ....... 1-2 Optional Products Sold Separately ....1-4 Exterior View and Names of Each Part ....1-5 Flow of Operations .......... 1-12 (00424)
Page 20: Check The Standard Components
Check the Standard Components Check the Standard Components The standard components of the MEMRECAM HX-7S include the following. Check to make sure all of them are included.  MEMRECAM HX-7S main unit： HX-7S camera unit  Simple J3 Cable： Cable to connect to control PC ...
Page 21 Check the Standard Components  HX-7S KIT：HX-7S PC control software and instruction manual set  HXLink CD-ROM： PC Control Software CD-ROM  HXLink User’s Manual： HXLink Detailed User’s Manual(Electronic Manual)  HXLink Quick Start Guide： HXLink Simple Users Guide  HX-7S user’s Manual（Basic）： HX-7S camera Basic Operation User’s Manual ...
Page 22: Optional Products Sold Separately
Optional Products Sold Separately Optional Products Sold Separately The main products for the MEMRECAM HX-7S sold separately (options) are as follows.  AC POWER SYSTEM： HX-7S dedicated AC adapter, power cable set  J-PAD3 Remote Controller： HX-7S wired controller for settings and operation ...
Page 23: Exterior View And Names Of Each Part
Exterior View and Names of Each Part Exterior View and Names of Each Part The functions and use of each part can be found on the page listed for each item. ■ External View and Names on Main Unit Right Side Exhaust vents A 2-2 Viewfinder shoe fitting A 2-5 Handle...
Page 24 Exterior View and Names of Each Part Left Side Intake ports A 2-2 Exhaust vents A 2-2 Nameplate (where the serial number is located) Factory time of shipment IP address (an IP address at the time of the factory shipment is displayed) (00424)
Page 25 Exterior View and Names of Each Part Front and Back Lens mount A 2-3 (00424)
Page 26 Exterior View and Names of Each Part Rear Panel ２ IP address （IP address mention space） Status LED A 10-36 TRIG connector A 4-52 Memory size label (16GB or 32GB) DP (DisplayPort) connector A 2-10 10 USB 2.0 Port A 3-37 CTL connector A 9-42 11 USB 3.0 Port A 3-37 J-PAD3 connector A 2-9...
Page 27 Exterior View and Names of Each Part ■ External View Names on J-PAD3（Remote controller） LCD A 3-4 11 WAVE button A 3-7 Dial A 3-7 12 DOWNLOAD button A 3-37 SHUTTER Arrows A 3-17 13 SET button A 3-8 FRM RATE Arrows A 3-17 14 MENU button A 3-8 STOP button A 3-13 15 TRIG button A 3-22...
Page 28 Exterior View and Names of Each Part ■External View of the Memrecam HX-7S AC Power Supply DC connector A 2-8 Power switch A 2-12 AC connector A 2-8 AC cable A 2-8 DC cable A 2-8 AC POWER SYSTEM sold separately.
Page 29 Exterior View and Names of Each Part ■ External View and Names on the Viewfinder HDMI connector Liquid crystal display A 3-2 Power switch A 2-12 Shoe fitting HDMI Cable （sold separately）. Displayport-HDMI Conversion Cable (sold separately.)  The appropriate image resolution of a view finder is 800x480. Viewfinder sold separately.
Page 30: Flow Of Operations
Flow of Operations Flow of Operations There are four ways to operate the Memrecam HX-7S. J-PAD3 remote control operation Windows control software HXLink operation External input signal operation Auto pilot from the sequence file on the USB storage device This manual describes operation using the J-PAD3 remote control.
Page 31 Preparations Camera Installation........2-2 Mounting the Lens ........... 2-3 Adjusting the Lens Aperture ......2-3 Connecting the Camera and Cables ....2-5 Turning the Power ON/OFF ......2-12 Mount the EF mount adapter ......2-16 Mount the EF lens .......... 2-18 (00424)
Page 32: Camera Installation
Make sure not to obstruct or cover the intake ports or exhaust vents. ■ Connecting the Memrecam HX-7S to a Tripod The Memrecam HX-7S requires two 3/8-16UNC diameter screws less than 7mm in length for mounting to a Tripod. Mounting screws (Depth 7mm) ...
Page 33: Mounting The Lens
(①), turn in the direction of the arrow (②) .  It is recommended to put the mounting cap on the MEMRECAM HX-7S when a lens is not attached. Avoid having dirt, dust or other foreign matter adhere to the interior of the mount.
Page 34: Adjusting The Lens Aperture
Adjusting the Lens Aperture Adjusting the Lens Aperture This describes the F mount lens aperture adjustment. The diaphragm on the Memrecam HX-7S can be used for adjusting lenses without diaphragms or external aperture rings. There is a diaphragm adjustment on the F mount adapter of the MEMRECAM HX-7S.
Page 35 Adjusting the Lens Aperture If the lens does not have a diaphragm Adjust the aperture with the diaphragm  Turn the diaphragm to adjust the aperture.  The aperture closes when turned in the CLOSE direction.  Image darkens  The depth of field and focal range are increased ...
Page 36: Connecting The Camera And Cables
Connecting the Camera and Cables Connecting the Camera and Cables This describes the peripherals and cable connections including the power source, J-PAD3 and monitor. ■ Input/Output Connectors List of Input/output Connectors Name of Branch Name of Connector Input/output Signal Connector TRIG ―...
Page 37 Connecting the Camera and Cables Diagram of Input/Output Connections on the Rear Panel (00424)
Page 38 Electrical shock may occur if used without properly grounding the power supply.  If connecting to an outlet using a 3P-2P conversion plug connect the grounding wire of the conversion plug to external grounding.  Do not use the MEMRECAM HX-7S dedicated AC adapter on other devices. (00424)
Page 39 Insert the J-PAD3 cable to the J-PAD3 connector on the rear  panel of the Memrecam HX-7S main unit. Once the Memrecam HX-7S power is ON, power is automatically  supplied to the J-PAD3.  The J-PAD3 cable can be left inserted into the HX-7S power or unplugged.
Page 40 Connecting the Camera and Cables ■ Connect the Monitor Connecting a digital monitor. Monitor Specifications Connectors DisplayPort terminal Monitor signals DisplayPort Scanning frequency 60～85Hz 640 × 480 800 × 600 1024 × 768 Screen resolution 1280 × 1024 1920 × 1080 （recommended resolution）...
Page 41 Connecting the Camera and Cables ■Connect the Control Windows PC Connect using the Ethernet to connect to a PC. １ Connect the Simple J3 Cable to the REMOTE connector  Connect the Simple J3 Cable or the J3 Splitter Cable (sold separately) to the REMOTE connector.
Page 42: Turning The Power On/Off
Turn the AC adapter power switch ON. Turn the switch ON after confirming that the AC and DC cables  are connected to the AC adapter and the MEMRECAM HX-7S (A 2-8) . The AC adapter power switch LED lights up.
Page 43 If started up with the image recorded in the memory, the recorded image is displayed. (A 3-24)  In addition to the rear panel power button the Memrecam HX-7S power can also be controlled remotely from the external input/output Power Control Input signal or PWRCNT.
Page 44 Turning the Power ON/OFF ■Status LED Display during Startup The Power Status, PWR STS, on the rear panel of the Memrecam HX-7S is red until the power button is pressed and the self-diagnosis is complete. During The PWR STS:Lit Red Start Up Once the self-diagnosis is done and startup is complete the PWR STS goes green and the CAM MODE is lit blue.
Page 45 Turning the Power ON/OFF ■Turning Off the Memrecam HX-7S Power １ Turning off the HX Link and HX-7S connection with a Windows PC  Save any required images before turning off.  Disconnect the HX Link and the HX-7S. Turn the AC adapter power switch to OFF.
Page 46: Mount The Ef Mount Adapter
Mount the EF mount adapter Mount the EF mount adapter This describes the installation of the optional EF mount adapter.  Make sure the HX-7S power is turned off when mounting or removing the EF mount adapter. （A 2-15）  Adjust the lens mounting adapter for the EF mount adapter and such for each camera. Do not mount on other cameras.
Page 47 Turning the Power ON/OFF ６ Connect the cable to the HX-7S. 2-17 (00424)
Page 48: Mount The Ef Lens
 Turn in the direction of the arrow () while pressing the lens removal button on the mounting adapter ().  When mounting the lens to the MEMRECAM HX-7S, make sure to mount the mounting cap. Also, use caution to avoid getting dirt or dust inside the mount.
Page 49 Basic Operations Screen Display ............ 3-2 J-PAD3 Operation ..........3-7 Stop (STOP Mode) ..........3-13 Display Live Video (VIEW Mode) ...... 3-15 Basic Recording Settings ......... 3-17 Start Recording (ARM Mode) ......3-19 Trigger Input (REC Mode) ........ 3-22 Memory Backup ..........3-24 Playback (PLAY Mode) ........
Page 50: Screen Display
Screen Display Screen Display The status information displayed on the Monitor, Viewfinder screen and J-PAD3 LCD screen are described in this section. The recording and playback settings and information are superimposed on the live image and playback image on the Monitor and Viewfinder. Viewfinder and Monitor Display 1 Scene Status...
Page 51 Screen Display Symbols Shown on the Frame Counter Symbols showing the frame status during recording or playback are displayed on the frame counter. Number Symbol Description A Trigger or event symbol (yellow) 3-26 ① The currently displayed frame is the trigger or the event frame. 9-22 EVENT input symbol (light blue) 4-59...
Page 52 Screen Display J-PAD3 Status Display In the STOP, VIEW, ARM and REC modes there are 11 status indicators. Press the MENU key to display the MENU settings. STATUS: Current display Status SHUTTER: Displays the shutter speed MODE: Displays camera status RIGGER: Displays the trigger timing FRAME: Displays current frame 10 ID: Displays the ID number of the...
Page 53 Screen Display LED Panel Display Status There are 6 status LEDs on the rear panel of the Memrecam HX-7S camera. (00424)
Page 54 Screen Display LED Status Operation A Lit Red In accessing CFast Cards not set at Cardslot properly / Failed in access / No － power Lit Orange 1000BASE-T network communication － ETHERNET Flashing Green 100BASE-TX network communication － No network connection －...
Page 55: J-Pad3 Operation
J-PAD3 Operation J-PAD3 Operation The MEMRECAM HX-7S camera setup and playback operation can be made from the J-PAD3. ■Buttons and Switches ① Direct Buttons FRM RATE Direct button (A 3-17) Changes the frame rate. SHUTTER Direct button (A 3-17) Changes the shutter speed.
Page 56 J-PAD3 Operation PLAY button (A 3-26) Switches the operational mode to the PLAY mode or LOOP mode and plays back the video. REV button (A 3-30) Quick reverse, frame advance reverse. FWD button (A 3-30) Fast forward, frame advance forward. S.SET button (A 3-33) Sets the playback start frame.
Page 57 J-PAD3 Operation MENU Display J-PAD3 recording or playback settings and saving of recorded images can be changed with the direct button and the display can be switched to any MENU from the MENU button. MENU displayed during the STOP mode During status display in the STOP mode press the MENU button to switch the LCD display to the TOP ...
Page 58 J-PAD3 Operation 3-10 (00424)
Page 59 J-PAD3 Operation ■Accessing the Desired Setting Screen from the TOP MENU The following describes the transition from the STATUS display to INFO. １ Access the STOP mode (A 3-13)  If in the VIEW mode or ARM mode, switch to the STOP mode. ２...
Page 60 J-PAD3 Operation ■Accessing the SYSTEM SETUP MENU １ Access the STOP MODE (A 3-13) If in the VIEW mode or ARM mode, switch to the STOP mode.  ２ Simultaneously press the STOP, TRIG, and SET buttons  Simultaneously press the STOP, TRIG and SET buttons.
Page 61: Stop (Stop Mode)
Stop (STOP mode) STOP (STOP Mode) The MEMRECAM HX-7S defaults to the STOP mode after startup. During the STOP mode the image is not live. ■Selecting the STOP Mode Press the STOP button while in the STATUS screen on the J-PAD3 ...
Page 62 Stop (STOP mode) STOP Mode J-PAD3 Display LCD STATUS Display The image saved in the memory and the information on recording and playback settings are displayed.  MODE： STOP (current camera mode)  FRAME： FRAME Number is Displayed  TIME： Frame Time is Displayed ...
Page 63: Display Live Video (View Mode)
Display Live Video (VIEW Mode) Display Live Video (VIEW Mode) Displays the live image in the VIEW mode, camera setup and lens adjustment. ■Selecting to the VIEW Mode Press the VIEW/ARM button while the STOP mode status is displayed  Switch to the VIEW mode from the STOP mode. ...
Page 64 Display Live Video (VIEW Mode) VIEW Mode J-PAD3 Display LCD STATUS Display The information for the recording settings and the information just before the STOP mode is displayed.  MODE： VIEW (current camera mode)  FRM RATE： Displays current Record Rate ...
Page 65: Basic Recording Settings
Basic Recording Settings Basic Recording Settings Select the frame rate, shutter speed and trigger timing according to the phenomenon recorded. ■ Select the Frame Rate Set the frame rate, frames per second, according to the speed of the event to be recorded. １...
Page 66 Basic Recording Settings ■Select the Trigger Timing Set the trigger timing for capturing the event. The type of Trigger Timing depends on the number of frames recorded from the start of recording to when the trigger is received and the number of frames recorded from the trigger input to the end of the recording. １...
Page 67: Start Recording (Arm Mode)
Start Recording (ARM mode) Start Recording (ARM mode) After setting the camera frame rate, exposure time, trigger type in the VIEW mode switch to the ARM mode to start recording.  Before switching to the ARM mode save the images recorded to the memory. (A 3-37) ...
Page 68 Black Balance has been previously explained in the Black Balance section The noise of the image from the image sensor of the MEMRECAM HX-7S changes according to the speed. This noise is called fixed pattern noise, which has a different pattern from each sensor. The HX-7S reduces noise by correcting the fixed pattern noise as well as noise from temperature variations.
Page 69 Start Recording (ARM mode) Ring Buffer In the ARM mode the Memrecam HX-7S continuously records images to the memory. The camera records in a ring buffer, first in, first out writing over its memory until stopped. The Memrecam HX-7S continues to record over its memory until the trigger is received.
Page 70: Trigger Input (Rec Mode)
Trigger Input (REC mode) Trigger Input (REC mode) Using the correct Trigger Imput for the event to be recorded. ■Trigger Input Input the trigger for the event to be recorded and to stop the recording with the correct trigger timing settings.
Page 71 Trigger Input (REC mode) REC Mode J-PAD3 Display LCD STATUS Display The information for the current recording settings appears.  MODE： REC (current camera mode)  FRM RATE： Displays current Record Rate  FRM SIZE： Displays current Image Size  SHUTTER： Displays current Shutter Speed ...
Page 72: Memory Backup
Memory Backup Memory Backup The Memrecam HX-7S has a built-in battery that retains the recorded images in memory in the event of a loss in power to the camera for up to 1 hour.  The recorded images may be lost when you turn off the power to the camera if the built-in battery is not charged enough.
Page 73 Memory Backup Flashing Orange: Memory Backup is valid (by built-in battery only)  Charge: Medium Lit Red: Memory Backup is valid (by AC adapter plus built-in battery)  Charge: Low  Memory Backup time is getting short. Use Memory Backup function after charging.
Page 74: Playback (Play Mode)
Playback (PLAY Mode) Playback (PLAY Mode) Plays back the recorded images. ■Playback Press the PLAY button while the STOP mode status is displayed (or press the dial)  Select the PLAY mode from the STOP mode to play the recorded images. ...
Page 75 Playback (PLAY Mode) PLAY Mode J-PAD3 Display LCD STATUS Display Information on the current playback ・recording settings appears.  MODE： PLAY (current camera mode)  FRAME： Displays current Frame Number  TIME： Displays Recorded Time  PLAY： Displays Playback Rate ...
Page 76: Repeated Playback (Loop Mode)
Repeated Playback (LOOP mode) Repeated Playback (LOOP mode) Repeated playback of the playback range or the entire recorded range. (Loop playback) ■Loop Playback Press the PLAY button again while playing back in the PLAY mode  Switch to the LOOP mode from the PLAY mode and repeatedly playback the playback range.
Page 77 Repeated Playback (LOOP mode) LOOP Mode J-PAD3 Display LCD STATUS Display Information on the current playback ・recording settings appears.  MODE： LOOP (current camera mode)  FRAME： Displays current Frame Number  TIME： Displays previously Recorded Time  PLAY： Display the Playback Rate ...
Page 78: Frame Advance ・ Fast Forward ・ Quick Reverse
Frame advance ・Fast Forward ・Quick Reverse Frame Advance ・ Fast Forward ・ Quick Reverse Repeated playback of the playback range or the entire recorded range. (Loop Playback ) ■ Frame Advance, Reverse Frame, Fast Forward, Quick Reverse Frame advance, reverse frame, fast forward and quick reverse are performed during the STOP mode. The J-PAD3 LCD display shows the status.
Page 79: Jump To A Specific Frame
Jump to a Specific frame Jump to a Specific frame Jump to a start or end frame of a recording, a frame where the trigger has been input or the frame where the event trigger has been input for event recording（A 4-47） ■Jump Frames Available in the STOP mode.
Page 80: Change The Playback Speed
Change the playback speed Change the Playback Speed Changes the playback rate. Reverse playback can also be set. Changes to the playback speed are done during playback. ■ Change the Playback Speed Change the playback speed during playback (PLAY or LOOP mode). Select the PLAY mode or LOOP mode. Speed up the playback speed Press the FWD button during playback or turn the dial in the direction of the arrow...
Page 81: Set The Range For Playback・Saving
Set the range for playback・saving Set the Range for Playback・Saving Set the playback range, and set the position to end playback or the position to repeat during loop playback. This set range also becomes the range for saving the recorded images. ■...
Page 82 Set the range for playback・saving J-PAD3 Playback Range Bar Display When setting the playback start frame and the playback end frame, the position is shown on the J-PAD3 playback range bar. First frame position Position of playback end frame Playback start frame position Position of last frame Position of frame currently displayed The playback range, playback start frame and playback end frame, are set from the recorded frames displayed...
Page 83 Set the range for playback・saving If played back in the LOOP mode (A 3-28) Playback Start Position Operation Before the playback end Plays back to the playback end frame, returns to the playback start frame frame and repeatedly plays back the playback range. After the playback end Plays back to the end frame, returns to the playback start frame and frame...
Page 84 Set the range for playback・saving On-screen Display Information on the Monitor and Viewfinder when Setting the Playback Range In addition to the current display frame number shown by the on-screen display information on the monitor and viewfinder, it shows whether or not a playback range is set as well as a symbol showing the relationship between the current frame position and the playback range.
Page 85: Saving The Images
 When two or more USB devices/CFast cards will be connected  (A 7-15)  The Memrecam HX-7S uses Windows Embedded in the camera operating system. Write protection is not performed in the system area for camera system protection. Use caution and avoid viruses and malware when using USB devices / CFast card.
Page 86  （A 7-15）  The Memrecam HX-7S uses Windows Embedded in the camera operating system. Write protection is not performed in the system area for camera system protection. Use caution and avoid viruses and malware when using USB devices / CFast card.
Page 87 Saving the Images ■ Save １ Set the save range  After saving the images to the memory set the save range for the recording.  The range set for the playback range is the range saved on the USB storage device. (A3-33) ２...
Page 88  The save time varies according to the performance of the device connected.  Saved video files cannot be played back on the MEMRECAM HX-7S. Play back the saved video file with the control software HXLink. See the HXLink User’s Guide for details.
Page 89: Lens Control
Lens Control Lens Control If using the optional EF mount adapter, lens adjustment and focus can be controlled with a simple key stroke  Menu for the EF mount adapter. Does not operate other lens mount options. ■Display LENS MODE １...
Page 90 Lens Control ■Key operation In the following explanation, the operation for lens control which operates in LENS MENU is indicated by the highlight. ① Direct Buttons FRM RATE direct keys Changes the recording speed. SHUTTER direct keys Changes the shutter speed. TRIG direct keys Changes the focus step.
Page 91 Lens Control VIEW ARM key Switches the operating mode to VIEW or ARM mode. TRIG key Inputs the trigger. PLAY key Changes the focus value. REV key Changes the focus value. FWD key Switches operation with the dial (focus/iris). The menu selection selects “FOCUS” or “IRIS” according to operation of the dial. S.SET key Changes the f-stop value.
Page 92 Lens Control Hold switch Temporarily disables operation from the J-PAD3. 3-44 (00424)
Page 93 Lens Control While pressing the [WAVE] key during the status screen display of J-PAD3 in Temporarily disables operation from the J-PAD3. STOP mode[MENU] If a key is pressed, a display will change to the "LENS MODE" menu. ■Items performed with lens control Settings Details Refer...
Page 94 Lens Control ■Initialization Make sure to perform initialization in the following instances when using the EF lens mount. • When turning the power on to the HX-7S • When changing lenses Turn the focus mode switch on the EF lens mount to “AF”. ...
Page 95 Lens Control ■Initialize iris from the LENS MODE １ Access the LENS MODE （A 3-41） Access the LENS MODE from the status screen. ２ Select “IRISINT” with the up/down arrows ３ Press the SET key Warning is displayed to press the SET key. When initializing, the SET key is pressed once again.
Page 96 Lens Control ■Adjust the iris from the LENS MODE Adjust the iris from the LENS MODE. １ Access the LENS MODE （A 3-41） Access the LENS MODE from the status screen. There are three kinds of adjustment methods of an iris. ...
Page 97 Lens Control ③Change by the up/down/left/right arrows and set key. ２ Select “IRIS” with the up/down arrows ３ Adjust the iris “IRIS” with the up/down/left/right arrows 8 Change the f-stop value and the f-stop value after the change is displayed in “IRIS”. ...
Page 98 Lens Control ■Adjust the focus from the LENS MODE Adjust the focus. １ Access the LENS MODE （A 3-41） Access the LENS MODE from the status screen. A focal step can also be changed by the TRIG UP key and the TRIG DOWN key.（A 3-42） ...
Page 99 Lens Control ④ Change by the up/down/left/right arrows and set key ２ Select “FOCUS” with the up/down arrows ３ Adjust the focus with the up/down/right/left arrows Adjust "FOCUS" by left/right key. New value will be indicated at "FOCUS" Change by right/left arrows. ...
Page 100 3-52 (00424)
Page 101 Recording Settings Items that can be Set for Recording ....4-2 Set the Recorded Scene Number ....4-42 Recording Mode ..........4-7 Partitioning the Memory........ 4-44 Select the Frame rate ........4-9 Select the Recording Method ......4-46 Select the Frame Size ........4-11 Trigger Input from an External Trigger ..
Page 102: Items That Can Be Set For Recording
Items that can be Set for Recording Items that can be Set for Recording Set the recording conditions from the MENU to record according to various objectives. Press the J-PAD3 MENU button while in the STOP mode to switch to the TOP MENU display. ■Items that can be set from the TOP MENU Items to Set Details...
Page 103 Items that can be Set for Recording After accessing the SYS MENU from the TOP MENU, settings can be performed for the system, synchronization, timing and input/output. ■Items that can be set from the SYS MENU Items to Set Details Refer to A ID number settings...
Page 104 Items that can be Set for Recording Items to Set Details Refer to A SCROLL Video display scroll settings BEEP Remote control BEEP settings 8-22 AUTOVIEW Auto view settings 8-23 AUTO BB Auto black balance settings 8-25 SHLNC Shutter line noise correction selecting 8-26 settings WARNING...
Page 105 Items that can be Set for Recording Press the J-PAD3 MENU button while in the VIEW mode to switch to the VIEW MENU. In VIEW MENU, various settings not needed for recording can be set. ■Items that can be set from the VIEW MENU Items to Set Details Refer to...
Page 106 Items that can be Set for Recording Items to Set Details Refer to A KNEE Knee settings 5-11 RGB COR. RGB matrix settings 5-11 LUMINANC Luminance settings 5-12 DEPTH Recording bit length settings 4-41 ZOOM Video display zoom settings SCROLL Video display scroll Items in the table with dark backgrounds are items not described in “Recording Settings”.
Page 107: Recording Mode
Recording Mode Recording Mode "Sensitivity" Mode, which increases the light sensitivity, is available with HX-7S. The recording mode becomes activate (setting reflected on image sensor) when going into VIEW or ARM. Light Sensitivity in each mode (Recommended Exposure Index : REI) Quality Mode Sensitivity Mode Color...
Page 108 Items that can be Set for Recording ■Recording Mode １ Access the TOP MENU (A 3-11) Access the TOP MENU from the STOP mode.  ２ Select the RECPRIO with the up/down arrows  Use the up/down arrows to move to the selected frame rate and select RECPRIO.
Page 109: Select The Frame Rate
Select the Frame rate Select the Frame rate Select the frame rate from the VIEW MENU. ■Select the Frame Rate from the VIEW MENU Select the frame rate, frames per second, based on the speed of the event. １ Access the VIEW MENU (A 3-12) ...
Page 110 Select the Frame rate Selectable Frame rates HX-7S Preset Frame Rates 50、60、100、250、500、850、1,000、1,250、1,500、2,000、2,500、 Recoding mode: Quality 3,000、 4,000、 5,000、 6,000、 8,000、 10,000、 12,000、 15,000、 20,000、 25,000、 30,000、 40,000、 50,000、 60,000、 80,000、 100,000、 150,000、 200,000 frames/second Preset Frame Rates 50、60、100、250、500、850、1,000、1,250、1,500、2,000、2,500、 Recoding mode: Sensitivity 3,000、...
Page 111: Select The Frame Size
Select the Frame Size Select the Frame Size Select the frame size, available pixels, from the VIEW MENU. The recording time increases as the frame size decreases. As the frame size increases the images recorded will have higher resolution in addition to a larger Field of View, FOV. ■Select the Frame Size from the VIEW MENU Set the frame size or number of horizontal and vertical pixels per frame.
Page 112 Select the Frame Size Frame Rate and Frame Size HX-7S The frame size that can be set varies according to the frame rate selected. Recoding mode: Quality Frame rate Frame Size that can be Selected 50～850 2560 × 1920 2560 × 1440 1920 ×...
Page 113 Items that can be Set for Recording Recoding mode: Quality Frame rate Frame Size that can be Selected 25,000 448 × 312 448 × 304 384 × 352 384 × 344 320 × 352 320 × 344 30,000 384 × 296 384 ×...
Page 114 Select the Frame Size Recoding mode: Sensitivity Frame rate Frame Size that can be Selected 50～850 2560 × 1920 2560 × 1440 1920 × 1080 1280 × 960 1280 × 720 2560 × 1904 1,000 2560 × 1664 2560 × 1440 2304 ×...
Page 115 Select the Frame Size Recoding mode: Sensitivity Frame rate Frame Size that can be Selected 100,000 320 × 80 320 × 32 150,000 320 × 40 4-15 (00424)
Page 116: Custom Settings For Frame Rate And Frame Size
Custom Settings for Frame rate and Frame Size Custom Settings for Frame rate and Frame Size In addition to the preset selections, custom frame rates and frame sizes can be set. ■Custom Settings for Frame rate and Frame Size As the frame rate increases, the maximum frame size that can be set decreases. When custom setting the frame rate and frame size, select one to take priority.
Page 117: Size
Custom Settings for Frame rate and Frame Size ６ Press the SET button  Press the SET button to set the frame rate. ７ Select FRM SIZE and press the SET button  Use the up/down arrows to move to the selected item (reverse display) and select FRM SIZE.
Page 118 Custom Settings for Frame rate and Frame Size Priority Settings for Frame rate and Frame Size If custom setting the frame rate and frame size, select either the frame rate or the frame size to have priority.  Frame rate Priority: The upper limit for the frame size that can be set is limited by the frame rate input.
Page 119: Select The Shutter Speed
Select the Shutter Speed Select the Shutter Speed Select the shutter speed from the VIEW MENU. A value can also be input to set a custom shutter speed. ■Select a Preset Shutter Speed Set the shutter speed. １ Access the VIEW MENU (A 3-12) ...
Page 120 Select the Shutter Speed ■Custom Settings for Shutter Speed １ Select the left side of the shutter speed and press the SET button  A 6 digit number such as 000100us is displayed at the left side of the preset. ２...
Page 121: Set The Trigger Timing
Set the Trigger Timing Set the Trigger Timing Set the trigger timing to the event to be recorded. The following five types of trigger timing are available.  Start Trigger (START)  Center Trigger (CENTER)  End Trigger (END)  Custom Trigger (+000%) ...
Page 122 Set the Trigger Timing End Trigger With the End Trigger 95% of the record time is recorded from the start of recording to trigger input. Use the End Trigger when recording an event that ends when the trigger is input. Custom Trigger With the Custom Trigger, if positive numbers are set, the frame numbers recorded from the start of the recording to the trigger input and the frame rate recorded from the trigger input to the end of recording can...
Page 123 Set the Trigger Timing When using a Custom Trigger if a negative number is set it functions as a direct trigger and the recording starts at a set time period after trigger input. For example, if the trigger timing is set to -100%, the recording starts at the point after trigger input when the same time elapses.
Page 124 Set the Trigger Timing ■Select the Trigger Timing １ Access the VIEW MENU (A 3-12) Access the VIEW MENU from the VIEW mode  ２ Select TRIGGER with the up/down arrows  Use the up/down arrows to move to the TRIGGER type and select TRIGGER.
Page 125 Set the Trigger Timing ■Set the Custom Trigger １ Select Custom Trigger and press the SET button  When selecting the trigger type use the left/right arrows to select Custom Trigger and press the SET button.  The Custom Trigger position is 2 from the right and is displayed as +000%.
Page 126 Set the Trigger Timing ■Set the Post Trigger １ Select the Post Trigger and press the SET button  Select the Post Trigger with the left/right arrows when selecting the trigger type and press the SET button.  The Post Trigger position is displayed as 000000001.
Page 127: Black Balance
Black Balance corrects noise, black level data and fixed pattern noise of the sensor. The noise in the image sensor of the MEMRECAM HX-7S changes according to the sensor temperature or recording settings. This noise is called fixed pattern noise which has a pattern that is unique to each sensor.
Page 128 Black Balance ４ Use the left/right arrows to select the black balance settings Use the left/right arrows to switch the black  balance setting details. No black balance correction  Black balance correction  Black balance  ５ Perform black balance Select SET and the HX-7S black balance ...
Page 129: Recording With Enhanced Sensitivity
Recording with Enhanced Sensitivity Recording with Enhanced Sensitivity Use the enhanced sensitivity function (GXC) to record at four times the sensitivity without any increase in noise. GXC Function Use the GXC function to increase the sensitivity about 4x without increasing the level of noise. However, the maximum frame size is limited to 1/2 at 1280 ×...
Page 130: Set Variable Frame Rates
Set Variable Frame Rates Set Variable Frame Rates The variable frame rate function (DUALRATE) is a function making the frame rate variable before and after the trigger. With a speed ratio (RATIO) during low speed recording, the number of frames (BASERATE) during normal recording is set.
Page 131 Set Variable Frame Rates ■ Using the Variable Speed Recording Function １ Access the VIEW MENU (A 3-12) Access the VIEW MENU from the VIEW mode.  ２ Select DUALRATE with the up/down arrows and press the SET button Use the up/down arrows to move to the ...
Page 132 Set Variable Frame Rates ６ Select BASERATE (normal frame rate) with the up/down arrows and press the SET button  Use the up/down arrows to move to the selected item (reverse display) and select BASERATE.  Press the SET button to set the normal frame rate.
Page 133: Input The Trigger With Image Trigger
Input the Trigger with Image Trigger Input the Trigger with Image Trigger The trigger can be automatically input when the luminance of an image recorded changes. Image Trigger (Luminance Detection Auto Trigger Input Function) This is a function to automatically input the trigger when the luminance in a set area of interest rapidly changes while recording in the ARM mode.
Page 134 Input the Trigger with Image Trigger  The image trigger cannot be used at the same time as the auto exposure function (AE).  If enabling the image trigger while using the auto exposure function, a confirmation message is displayed asking to confirm turning the auto exposure function OFF.
Page 135 Input the Trigger with Image Trigger ■Set the Update Method for the Image Trigger Luminance Standard Set the luminance standard (if a photographic event is not being generated) when the image trigger detects changes in luminance in the image. １ Access the VIEW MENU (A 3-12) Access the VIEW MENU from the VIEW mode.
Page 136 Input the Trigger with Image Trigger ■ Select the Area of interest The area of interest (AOI: Area Of Interest) can be designated when using the image trigger function (A 4-33) and the auto exposure function (A 4-38). １ Access the VIEW MENU (A 3-12) Access the VIEW MENU from the VIEW mode.
Page 137 Input the Trigger with Image Trigger ■Input Image Trigger to Record After setting the image trigger, switch to the ARM mode and input the trigger from the luminance changes of the image. １ Set the detection sensitivity, luminance detection area and luminance standard update method Set the image trigger to enable.
Page 138: Use The Auto Exposure Function
Use the Auto Exposure Function Use the Auto Exposure Function The auto exposure function (AEC：Automatic Exposure Control) automatically adjusts the shutter speed to make the image an appropriate brightness using photometry specified for the image photographed. Use when recording outdoors to when the ambient brightness changes due to varying states of cloud cover, time or weather.
Page 139 Use the Auto Exposure Function  The auto exposure response speed is set low. It does not work with photographs where there are dramatic changes in brightness, such as strobe lights or explosive events.  When the auto exposure function is used, the shutter speed is adjusted during the exposure time set with SHUTTER from 10 μs.
Page 140 Dynamic Range Expansion Shutter Use the Use the Dynamic Range Expansion Shutter If DRES (DRES:Dynamic Range Expansion Shutter dynamic range expansion shutter) is used, the sensor of a camera suppresses the saturation for high-intensity, and the large image of a dynamic range can be recorded.
Page 141: Select The Recording Bit Length
Select the Recording Bit Length Select the Recording Bit Length The number of bits per recorded image pixel can be changed. As the number of bits increase, the gradient (amount of change in the brightness) of the image gets finer, so the gradient representation is one of high image quality.
Page 142: Set The Recorded Scene Number
Set the Recorded Scene Number Set the Recorded Scene Number The scene number can be simultaneously recorded as data to control the recorded video. Recorded Scene Number The recorded scene number is saved in the recorded video. This number is displayed as on screen display during playback and saved in the MCFF data.
Page 143: Partitioning The Memory
Partitioning the memory Partitioning the memory The scene number can be simultaneously recorded as data to control the recorded video. Memory Segments The recording memory can be divided into a maximum of 64 “segments”. The recording time for a single memory segment shortens according to the number of segments, and each of these segments is an independent recording range.
Page 144 Partitioning the memory ■Partition the Memory １ Display SYS SET (A 3-11) Access TOP MENU ＞SYS MENU ＞ SYS SET from the STOP mode.  ２ Select SEG SIZE with the up/down arrows and select the number of partitioned segments with the left/right arrows •...
Page 145 Partitioning the memory ■ Select the Recording Segments Select the memory recording segments from the partitioned memory segments. For this description, a segment has been selected from four partitioned segments. １ Display MEM SEG (A 3-11) Access TOP MENU ＞MEM SEG from the STOP mode. ...
Page 146: Select The Recording Method
• The J-PAD3 REC MODE is displayed as REC METH on some J-PAD3 versions. Recording Method In addition to the recording method with the normal trigger input, the MEMRECAM HX-7S enables selection of the following recording method.  Normal Recording Method: Method of recording images to the corresponding memory segment for a single trigger input ...
Page 147 Select the Recording Method Auto Segment Switching, Auto Block Switching When selecting any of the recording methods, segments (or blocks) automatically switch at the same time and the next recording functions are combined for selection. See (A 4-44) for partitioning memory into segments for recording Auto Segment Switching ...
Page 148 Select the Recording Method Recording Method Selection using the J-PAD3 When selecting the recording method from the J-PAD3, the recording method and the switching of auto segments (or blocks) are combined for selection. J-PAD3 Settings Recording Method Switching of Auto Segments (or Blocks) NORMAL Normal NORMAL(A)
Page 149 Select the Recording Method ■ Select the Recording Method Combines the recording method and auto segment switching for selection. １ Display TRIG SET (A 3-11)  Access TOP MENU ＞SYS MENU ＞ TRIG SET from the STOP mode. ２ Select REC MODE with the up/down arrows ...
Page 150 Select the Recording Method ■Set the Number of Partitions for the Multi Trigger Blocks If using the multi trigger recording method, the number of blocks can be designated.  It can not be used in a multi manual recording mode (A 9-33) １...
Page 151 Select the Recording Method ■The number of frames of a block of a Multi Manual is set up.  If using the multi manual （A 9-33）, the number of frames of a block is set. １ Display TRIG SET (A 3-11) Access TOP MENU ＞SYS MENU ＞...
Page 152: Trigger Input From An External Trigger
Trigger Input from an External Trigger Trigger Input from an External Trigger The HX-7S has two external triggers called TRIG1 and TRIG2 for trigger input with signals from other devices or the switch. ■ Connect the External Trigger Connect to TRIG1 External trigger signal specifications from the TRIG connector require TTL level contact input at an isolated input.
Page 153 Trigger Input from an External Trigger １ Connect the J3 split cable to the REMOTE connector Connect the J3 split cable (sold separately) to the REMOTE  connector. ２ Connect the BNC cable (male) to the J3 split cable TRIG2 input •...
Page 154 Trigger Input from an External Trigger ■ Trigger Input from an External Trigger １ Access the ARM mode  Select the ARM mode and start recording. (A 3-19) ２ Input the trigger signals from the selected external input/output  Input the trigger signals (enabled if L) to input the trigger and select the REC mode.
Page 155: Synchronized Recording To The External Synchronization Signals (Est)
External and Internal Synchronization The MEMRECAM HX-7S records with the sensor exposure start timing as the standard. This exposure start timing is synchronized with the synchronization signals in the camera or the exposure start signals externally input .
Page 156 Synchronized Recording to the External Synchronization Signals (EST) Restrictions on the Timing for External Synchronization Signals The external synchronization signals (EST signals) must satisfy the following two timing conditions.  EST signal cycle (Hz) ≦ maximum frame rate for the frame size in the settings(frames/sec) ...
Page 157 Synchronized Recording to the External Synchronization Signals (EST) ■ Select Synchronization Signals Select the synchronization signals (internal synchronization, external synchronization) to be used. １ Access the SYS MENU (A 3-11) Access TOP MENU ＞SYS MENU from the STOP mode.  ２...
Page 158 Synchronized Recording to the External Synchronization Signals (EST) ■Select the EST synchronization accuracy Two synchronous modes, the normal EST synchronization (EST) and the high precision synchronization (A-EST) which enabled the highly precise synchronization, can be selected as an EST synchronization. ：Exposure time is set up per line.
Page 159 Synchronized Recording to the External Synchronization Signals (EST) ■ Connect EST (External Synchronization Signals) Connect to EST2 EST2 Signals • TTL level, 5V pull up, insulation, allowable voltage:-0.5～5.5Vdc • EST2 signal specifications:(A 9-49), EST2 input (REMOTE connector) specifications:(A 10-43) １ Connect the J3 split cable to the REMOTE connector •...
Page 160 Synchronized Recording to the External Synchronization Signals (EST) EST2/EVENT Event Signal Recording EST2 input can be used as input for event signal recording. If EST2 has polarity during frame standard time, an event signal is recorded to the frame and “Event input mark” is displayed during playback. Event signal recording is performed automatically and the settings cannot be switched to enable/disable the function.
Page 161 Synchronized Recording to the External Synchronization Signals (EST) External Synchronization Signals with Irregular Timing According to (A 4-56) external synchronization timing limitations, if the exposure start signal is input during exposure (the sensor electronic shutter is OPEN) it will not record properly. If the exposure start signal (H →...
Page 162 Synchronized Recording to the External Synchronization Signals (EST) ■ Disable the Synchronization Signals with Irregular Timing １ Access the SYS MENU (A 3-11) Access TOP MENU ＞SYS MENU from the STOP mode.  ２ Select EST SAFE with the up/down arrows •...
Page 163 Synchronized Recording to the External Synchronization Signals (EST) ■ Synchronize Recording to the EST Signals １ After the selected external EST input, input the EST signals  Input from the connector selected for the EST signals for synchronized exposure to EST signals. ２...
Page 164 Synchronized Recording to the External Synchronization Signals (EST) ■ Import Images Synchronized to the EST Signals in the VIEW Mode If recording with external synchronization signals (EST signals), select either “Import the image with synchronized signals in the EST signals and display” or “Import the image with synchronized signals in the camera and display”...
Page 165: Synchronized Record Timing
Synchronized Record Timing Synchronized Record Timing Recording can be synchronized to the timing of a device connected to the MEMRECAM HX-7S. The HX-7S uses internal camera time and recording is synchronized to that time. Recording can be done by synchronizing the time and frame with another device by synchronizing with the device that outputs the IRIG-B time code for this time or the GX-HUB sold separately.
Page 166 Synchronized Record Timing ■ Select the Time Synchronization Select the time synchronization from internal synchronization or IRIG-B. １ Access the SYS MENU (A 3-11) Access TOP MENU ＞SYS MENU from the STOP mode.  ２ Select SYNC TIME with the up/down arrows •...
Page 167 Synchronized Record Timing ■ Synchronize IRIG-B Signals with the Time • IRIG-B signal specifications:(A 9-58), IRIG-B input (REMOTE connector) specifications:(A 10-43) １ Connect the J3 split cable to the REMOTE connector • Connect the J3 split cable (sold separately) to the REMOTE connector.
Page 168 Synchronized Record Timing ■Synchronize the Trigger with the Time Input the trigger using the trigger input signals (TRIG1,TRIG2) for trigger RESET. １ Connect the external trigger • Input the trigger from external input/output(A 4-52) ２ Select RESET in the time synchronization selection •...
Page 169: Piv (Particle Image Velocimetry) Recording
PIV (Particle Image Velocimetry) recording PIV (Particle Image Velocimetry) recording The frame straddling function enables recording two images with a very short time separation that is used with PIV (Particle Image Velocimetry). PIV (Particle Image Velocimetry) is the technology to quantitatively measure the velocity distribution of a flow from the movement of the particles based on the premise of following the flow of particles that are mixed in a flow of liquid or gases.
Page 170 PIV (Particle Image Velocimetry) recording ■ Frame Straddling Recording Enables frame straddling recording. １ Display STRADDL (A 3-11) Access TOP MENU ＞SYS MENU ＞ STRADDL from the STOP mode.  ２ Select STRADDL with the up/down arrows • Use the up/down arrows to move to the selected item (reverse display) and select STRADDL.
Page 171 PIV (Particle Image Velocimetry) recording ■Select the Video Display during Frame Straddling Recording Either the 1 or 2 frame can be shown on the live display in the VIEW or ARM modes during frame straddling recording to start checking the laser pulse timing. １...
Page 172: Select The Exposure Timing
Select the Exposure Timing Select the Exposure Timing Select a compatible exposure timing to perform recording synchronized with current products (fx series). ■ Select the Exposure Timing Compatible to K4 and K3 The sensor exposure timing for exposure start signals varies between the MEMRECAM HX and GX series and the previous MEMRECAM series (fx, ci series).
Page 173: Select The External Input/Output Signal Polarity
Select the External Input/Output Signal Polarity Select the External Input/Output Signal Polarity The external input/output signals can be selected according to the polarity of the connected device ■ Select the External Input/Output Signal Polarity The polarity of the following external input/output signals can be set to the H level (leading edge) or the L level (trailing edge).
Page 174 Select the External Input/Output Signal Polarity External Polarity Details Input/Output Signals POSI Detects the external trigger signals from the TRIG connector at the H level (isolation) TRIG1 NEGA ※ Detects the external trigger signals from the TRIG connector at the L level (short circuit) CRNTON ※...
Page 175 Select the External Input/Output Signal Polarity EST1 FLT Not available with HX-7S EST2 FLT EST2 filter setting (SAME ※) TRIGEDGE Trigger signal detection method (OFF ※) 「※」 refer to the factory settings 4-75 (00424)
Page 176 Select the External Input/Output Signal Polarity ■Set the Trigger Filter A digital noise filter is embedded in the HX-7S trigger input. If there is noise in the trigger signals, set the filter value higher to enable the filter. The filter value is the delay when clean pulses without chattering are input. A range of 0.0～6553.5μsec can be set, in units of 0.1μsec.
Page 177 Select the External Input/Output Signal Polarity ■ Set the EST Filter A digital noise filter is embedded in the HX-7S EST input. If there is noise in the EST signals, set the filter value higher to enable the filter. The filter value is the delay when clean pulses without chattering are input. A range of 0.0～6553.5μsec can be set, in units of 0.1μsec.
Page 178 Select the External Input/Output Signal Polarity ■The trigger signal detection method is selected.  When using external trigger signals with HX camera multi trigger or multi manual recording, and the level is “Trigger Signal Detection Method”, if moved to the next block with the trigger still input, the trigger is input at the next block but there may be times when you do not get the expected result.
Page 179: A Cooling Fan Is Stopped
A cooling fan is stopped A cooling fan is stopped In order to prevent the rise in heat of the camera which can prevent the shake of the image by vibration of a camera by stopping a cooling fan with a built-in camera, the cooling fan's stop period is limited in 1 minute.
Page 180 4-80 (00424)
Page 181 Live Image Settings Items that Can be Set for the Live Display ..5-2 Zoom the Live Image .......... 5-4 Scroll the Live Image ........5-6 Adjust the Image Quality of the Live Image ..5-7 Using the Low Light Function ......5-13 (00424)
Page 182: Items That Can Be Set For The Live Display
Items that Can be Set for the Live Display Items that Can be Set for the Live Display Live display zoom, scroll and image quality adjustment can be performed in the VIEW mode. Press the J-PAD3 MENU button in the VIEW mode to switch to the VIEW MENU display. Settings for the image quality or zoom can be made from the VIEW MENU in the VIEW or ARM modes.
Page 183 Items that Can be Set for the Live Display Items to Set Details Refer to A CHROMA Chroma settings 5-10 KNEE Knee settings 5-11 RGB COR. RGB matrix settings 5-11 LUMINANC Luminance settings 5-12 DEPTH Recording bit length settings 4-41 ZOOM Video display zoom settings SCROLL...
Page 184: Zoom The Live Image
Zoom the Live Image Zoom the Live Image The live image displayed can be enlarged or reduced. The live image displayed on the monitor or viewfinder can be zoomed in the VIEW or ARM modes. ■Zoom Images in the VIEW Mode １...
Page 185 Items that Can be Set for the Live Display  The zoom can be changed after recording, during playback . (A 6-5)  The size of the display area changes according to the settings for the connected monitor and monitor display resolution. Change the display resolution on the monitor (A 8-5) ...
Page 186: Scroll The Live Image
Scroll the Live Image Scroll the Live Image Areas outside the display area zoomed can be scrolled for display. If using the enlarged or reduced display in the VIEW mode and the entire image does not fit in the display area, the display range can be scrolled for display.
Page 187: Adjust The Image Quality Of The Live Image
Adjust the Image Quality of the Live Image Adjust the Image Quality of the Live Image The image quality of the live image displayed during recording can be adjusted. The image quality of the live image can be adjusted in the VIEW or ARM modes. The image quality on the display is adjusted without changing the data from the sensor.
Page 188 Adjust the Image Quality of the Live Image ■Set the White Balance The following settings are available for the white balance. Auto White Balance： Automatically distinguishes the color temperature from the image recorded and adjusts to the optimal white balance. Preset White Balance：...
Page 189 Adjust the Image Quality of the Live Image SET/REG White Balance Settings Determines the white balance when recording white objects. Photograph an entire image using a large white paper or white wall to obtain the white balance photographed. １ Photograph “white” as the entire angle of view ...
Page 190 Adjust the Image Quality of the Live Image ■Set the Gamma １ Access the VIEW MENU (A 3-12)  Access the VIEW MENU from the VIEW mode. ２ Select GAMMA with the up/down arrows  Use the up/down arrows to move to the selected item (reverse display) and select GAMMA.
Page 191 Adjust the Image Quality of the Live Image ■Set the KNEE １ Access the VIEW MENU (A 3-12)  Access the VIEW MENU from the VIEW mode. ２ Select KNEE with the up/down arrows  Use the up/down arrows to move to the selected item (reverse display) and select KNEE.
Page 192 Adjust the Image Quality of the Live Image ■ Set the Luminance Properties １ Access the VIEW MENU (A 3-12)  Access the VIEW MENU from the VIEW mode. ２ Select LUMINANC with the up/down arrows  Use the up/down arrows to move to the selected item (reverse display) and select LUMINANC.
Page 193: Using The Low Light Function
Using the Low Light Function Using the Low Light Function Use when a bright live image cannot be obtained in the VIEW mode at the set frame rate. If using the low light function, an image brighter than the photographed image at the set frame rate is displayed, and the angle of view and focus can be easily verified.
Page 194 Using the Low Light Function ■Set the Brightness for Low Light １ Access the VIEW MENU (A 3-12)  Access the VIEW MENU from the VIEW mode. ２ Select LOWLIGHT with the up/down arrows  Use the up/down arrows to move to the selected item (reverse display) and select LOWLIGHT.
Page 195 Using the Low Light Function ■Set Low Light Exposure Time with Custom Setting １ Under the low light brightness settings, select ****pps and press the SET button  Select ****pps with the left/right arrows and press the SET button to set a custom value. ２...
Page 196 5-16 (00424)
Page 197 Playback Settings Items that Can be Set for Playback ....6-2 Zoom the Playback Image........6-5 Scroll the Playback Image ........6-6 Adjust the Image Quality of the Playback Image ................6-7 Select the Memory Segment for Playback ..6-13 (00424)
Page 198: Items That Can Be Set For Playback
Items that Can be Set for Playback Items that Can be Set for Playback Settings for image quality adjustment, zoom or scroll can be made from the MENU in the PLAY or LOOP mode . Press the J-PAD3 MENU button while in the STOP mode to switch to the TOP MENU display. Playback image quality adjustment and memory segment switching can be performed with the TOP menu.
Page 199 Items that Can be Set for Playback Move to the SYS MENU from the TOP MENU to zoom or scroll. ■Items that can be set from the SYS MENU Items to Set Details Refer to A ID number settings DATETIME Date and time settings OSD DISP On screen display settings...
Page 200 Items that Can be Set for Playback 」 Items to Set Details Refer to A ZOOM Video display zoom display settings SCROLL Synchronization signal selection settings BEEP Remote control BEEP settings 8-22 AUTOVIEW Auto view settings 8-23 AUTO BB Auto black balance settings 8-25 SHLNC Shutter line noise correction selecting...
Page 201: Zoom The Playback Image
Zoom the Playback Image Zoom the Playback Image The image displayed can be enlarged or reduced. The image displayed can be zoomed in the STOP mode. ■Zoom Images in the STOP Mode １ Access the SYS MENU (A 3-11)  Access TOP MENU ＞ SYS MENU from the STOP mode. ２...
Page 202: Scroll The Playback Image
Scroll the Playback Image Scroll the Playback Image The entire image does not fit in the display area. The display range can be scrolled for display. If viewing an enlarged or reduced display using the zoom function in the STOP mode and the entire image does not fit in the display area, the display range can be scrolled for viewing.
Page 203: Adjust The Image Quality Of The Playback Image
Adjust the Image Quality of the Playback Image Adjust the Image Quality of the Playback Image The image quality of the playback image can be adjusted while in the STOP mode. Adjust image quality of recorded image by pressing STOP in playback. The image quality can be adjusted in the VIEW mode before recording.
Page 204 Adjust the Image Quality of the Playback Image ■Set the Digital Gain １ Access the TOP MENU (A 3-11)  Access the TOP MENU from the STOP mode. ２ Select D-GAIN with the up/down arrows  Use the up/down arrows to move to the selected item (reverse display) and select D-GAIN.
Page 205 Adjust the Image Quality of the Playback Image ■Set the White Balance The following settings are available for the white balance. Auto White Balance： Automatically distinguishes the color temperature from the image recorded and adjusts to the optimal white balance. Preset White Balance：...
Page 206 Adjust the Image Quality of the Playback Image ■Set Enhance １ Access the TOP MENU (A 3-11)  Access the TOP MENU from the STOP mode. ２ Select ENHANCE with the up/down arrows  Use the up/down arrows to move to the selected item (reverse display) and select ENHANCE.
Page 207 Adjust the Image Quality of the Playback Image ■Set the Chroma (Saturation) １ Access the TOP MENU (A 3-11)  Access the TOP MENU from the STOP mode. ２ Select CHROMA with the up/down arrows  Use the up/down arrows to move to the selected item (reverse display) and select CHROMA.
Page 208 Adjust the Image Quality of the Playback Image ■Set the RGB Matrix １ Access the TOP MENU (A 3-11)  Access the TOP MENU from the STOP mode. ２ Select RGB COR. with the up/down arrows  Use the up/down arrows to move to the selected item (reverse display) and select RGB COR.
Page 209: Select The Memory Segment For Playback
Select the Memory Segment for Playback Select the Memory Segment for Playback You can select a memory segment to be played in case of the memory segment reordering. The playback segment can be selected for playback when recording by partitioning the memory into segments. Recording is conducted on the selected segments.
Page 210 6-14 (00424)
Page 211 Save Settings Items that can be Set for Saving ..... 7-2 Saving Video Files ..........7-3 Saving Still Image Files ........7-14 Selecting the USB/CFast Media for Storage .. 7-15 Formatting USB/CFast Media ......7-16 (00424)
Page 212: Items That Can Be Set For Saving
Items that can be Set for Saving Items that can be Set for Saving The images recorded can be saved as a video file or a still image file. Saving and save settings can be performed from the SAVEMENU while in the TOP MENU. Press the J-PAD3 MENU button while in the STOP mode to display the TOP MENU display.
Page 213: Saving Video Files
Saving Video Files Saving Video Files Videos recorded can be saved as MCFF or AVI video files.  Refer to (A 3-37) for the USB/CFast devices that can be used and for USB/CFast device connections. The two methods to save recorded videos are shown below. ...
Page 214 Saving Video Files Required Settings for Saving The following settings are required for saving recorded videos.  Image quality adjustment (A 6-7)  Save range settings  Save file format selection  Compression rate (with MJPEG) and playback speed (with AVI, MJPEG) settings Image quality adjustment can be performed before recording or during playback after recording.
Page 215 Saving Video Files ■ Set Save Range The following two methods are used to set the save range.  Playback and save range settings in the STOP mode (A 3-33)  Set the save frame range from the SAVE MENU This describes the setting method from the SAVE MENU.
Page 216 Saving Video Files ■ Set the Compression Quality and Playback Speed The playback frame rate (frames per second) can be set if saving as AVI or MJPEG. Additionally, the compression quality can be set if saving as MJPEG. (These settings are not required if saving as MCFF) １...
Page 217 Saving Video Files ６ Compression Quality：Select QUALITY with the up/down arrows and press the SET button  Press the SET button to input the compression quality. ７ Input the compression quality  Use the left/right arrows to move columns and increase or decrease the value with the up/down arrows.
Page 218 Saving Video Files ■ Save as MCFF File １ Access the SAVEMENU (A 3-11)  Access TOP MENU ＞ SAVEMENU from the STOP mode. ２ Set the save range (A 7-5) ３ Select FILETYPE with the up/down arrows and select MCFF with the left/right arrows ...
Page 219 Saving Video Files MCFF Image Quality Settings The MCFF image quality settings are the contents set to the file in the STOP mode (A 6-7). Open a file with HXLink to read the saved image quality settings. The MCFF image quality settings can be changed without deterioration during playback using HXLink. Refer to the HXLink user guide for details.
Page 220 Saving Video Files ■ Save as Uncompressed AVI １ Access the SAVE MENU (A 3-11)  Access TOP MENU ＞ SAVE MENU from the STOP mode. ２ Set the range to be saved (A 7-5) ３ Select FILETYPE with the up/down arrows and select AVI with the left/right arrows ...
Page 221 Saving Video Files Press the SET button once saving is complete  Once saving is complete, the display on the 4 row SAVE? switches to COMPLETE.  Press the SET button to end saving and return to the SAVE MENU. Press the STOP button to stop saving.
Page 222 Saving Video Files ■ Save as MJPEG １ Access the SAVE MENU (A 3-11)  Access TOP MENU ＞ SAVE MENU from the STOP mode. ２ Set the range to be saved (A 7-5) ３ Select FILETYPE with the up/down arrows and select MJPEG with the left/right arrows ...
Page 223 Saving Video Files Press the SET button once saving is complete Once saving is complete, the display on the  row SAVE? switches to COMPLETE. Press the SET button to end saving and  return to the SAVE MENU. Press the STOP button to stop saving. The save will be interrupted and it will return to the SAVE MENU. MJPEG Image Quality Settings The AVI image quality settings are the details saved in the video file adjusted in the STOP mode (A 6-7) .
Page 224: Saving Still Image Files
Saving Still Image Files Saving Still Image Files Images displayed can be saved as YC TIFF files. ■ Save Images Being Displayed Images displayed in the STOP mode can be saved as still YC TIFF files. １ Access the SAVE MENU (A 3-11) Access TOP MENU ＞...
Page 225: Selecting The Usb Media For Storage
Selecting the USB/CFast Media for Storage Selecting the USB/CFast Media for Storage If multiple USB media are connected, select the USB/CFast media to be used for storage. ■ Select the USB/CFast Media There are 2 USB ports and a CFast card slot on the HX-7S multiple devices can be simultaneously connected. If connecting two or more media, select the USB media to use.
Page 226: Formatting Usb Media
Formatting USB/CFast Media Formatting USB/CFast Media Enable to initialize the USB/CFast media for data storage.  When formatting, all of the data will be erased, including the video saved with HX-7S. Format only after checking to make sure any required data is not included. ...
Page 227 Formatting USB/CFast Media Select FORMAT with the up/down arrows and press the SET button  Use the up/down arrows to select FORMAT.  Press the SET button to display the format screen. Press the SET button to start formatting  A verification message is displayed to confirm formatting.
Page 228 7-18 (00424)
Page 229 System Settings System Setting Items ............8-2 Changing the Monitor Resolution ........8-5 Settings to Allow/Lock Operations from the Control PC ..................8-7 ID Number Settings ............8-8 Date and Time Settings ............. 8-9 Set the On-Screen Display Information to Show/Hide . 8-10 Set the Contents of the Trigger Time Display ....
Page 230: System Setting Items
System Setting Items System Setting Items Make the settings relating to the system or screen display from the MENU. Press the J-PAD3 MENU button while in the STOP mode to switch to the TOP MENU display. ■Items that can be set from the TOP MENU Items to Set Details Refer to...
Page 231 System Setting Items ■Items that can be set from the SYS MENU Items to Set Details Refer to A ID number settings DATETIME Date and time settings OSD DISP On-screen display information settings 8-10 OSD MODE On-screen display information settings for 8-11 the camera mode OSD TIME...
Page 232 System Setting Items Items to Set Details Refer to A BEEP Remote control BEEP settings 8-22 AUTOVIEW Auto view settings 8-23 AUTO BB Auto black balance settings 8-25 SHLNC Shutter line noise correction selecting 8-26 settings WARNING Warning display settings 8-27 TRIG SET Trigger settings...
Page 233: Changing The Monitor Resolution
Changing the Monitor Resolution Changing the Monitor Resolution Change the display resolution to fit the monitor connected. If the HX-7S is started up while connected to the monitor, the optimal display resolution and refresh rate will be automatically selected but the resolution settings can be changed if part of the monitor is not optimal or if you wish to display with a different resolution.
Page 234 Changing the Monitor Resolution ４ After rebooting, the screen display resolution will switch After rebooting, the monitor display will switch to the display resolution set. The display resolutions and refresh rates shown in the list vary according to the monitor connected. (00424)
Page 235: Settings To Allow/Lock Operations From The Control Pc
Settings to Allow/Lock Operations from the Control PC Settings to Allow/Lock Operations from the Control PC Allow/lock operations when connected to the PC via the Ethernet for the REMOTE connector. In addition to operations from the J-PAD3, the HX-7S can be operated from the control software HXLink connected to a PC.
Page 236: Id Number Settings
ID numbers can be assigned to multiple cameras used to identify which camera is recording the data. If using multiple MEMRECAM HX-7S or if simultaneously using other MEMRECAM series cameras, it is possible to assign ID numbers from 0~127 for each camera to understand which is the date from what camera. The ID numbers are saved on USB media or as MCFF data downloaded from HXLink, and can be confirmed in HXLink.
Page 237: Date And Time Settings
Date and Time Settings Date and Time Settings Sets the date and time. The date and time can be saved as data for the recorded video. ■ Set the Date and Time １ Access the SYS MENU (A 3-11)  Access TOP MENU ＞ SYS MENU from the STOP mode. ２...
Page 238: Set The On-Screen Display Information To Show/Hide
Set the On-Screen Display Information to Show/Hide Set the on-screen display information to show/hide Set the on screen display (OSD) for the image to show/hide. ■ Set the On-screen Display Items Frame rate and status information is displayed on the monitor or viewfinder during recording or playback. This on-screen display can be set to show/hide from the MENU.
Page 239 Set the On-Screen Display Information to Show/Hide ■ Set the Display of On-screen Display according to the Camera Mode Select to either display on-screen display only in the STOP mode or in all of the operating modes. １ Access the SYS MENU (A 3-11) ...
Page 240: Set The Contents Of The Trigger Time Display
Set the Contents of the Trigger Time Display Set the Contents of the Trigger Time Display Select the contents displayed for the on screen information trigger time as either trigger time or current time. ■Set the Trigger Time Display The trigger time for the on-screen display is the trigger information for the VIEW, ARM and REC mode, and the current time can be set to display.
Page 241: Set The Contents Of The Frame Counter Display
Set the Contents of the Frame Counter Display Set the Contents of the Frame Counter Display Change the units or number of columns for the on screen information frame counter. ■Set the Units for the Frame Counter In addition to the frame number, the frame counter can be set to display the time and percentage (%). １...
Page 242 Set the Contents of the Frame Counter Display Number of Decimal Places Displayed for the Frame Time The HX-7S performs high speed photograph at 100000～1300000 frames/sec and can handle precision time display by showing the frame time rounded to the 7 decimal place (0.1μs units).
Page 243 Set the Contents of the Frame Counter Display Round to 6 or 7 Decimal Places on the Frame Counter (On-screen Display) Display TIME rounded to the 6 decimal place The relative time shown is rounded to the 6 decimal place. Display TIME rounded to the 7 decimal place The relative time from the trigger frame is rounded to the 7...
Page 244: Select The Standard Frame Time
Select the Standard Frame Time Select the Standard Frame Time If the frame counter display is set to either relative time or absolute time, the standard time can be selected. Frame Time Standards The following two choices are available for the time standards when displaying the frame time. ...
Page 245 Select the Standard Frame Time ■Set the Time Standard for the Frame Counter １ Access the SYS MENU (A 3-11)  Access TOP MENU ＞ SYS MENU from the STOP mode. ２ Select FRM TIME with the up/down arrows Use the up/down arrows to move to the selected item (reverse display) and select FRM TIME.
Page 246 Select the Standard Frame Time Relative Time Standard When the current frame time is set to display the relative time from the trigger frame (TIME) on the frame counter display FRM DISP) and the frame time display setting (FRM TIME) is set to the center exposure time (EXPOSURE), select one of the two choices below as the time standard (0 timing).
Page 247 Select the Standard Frame Time ■ Select the Relative Time as the Standard １ Access the SYS MENU (A 3-11)  Access TOP MENU ＞ SYS MENU from the STOP mode. ２ Select REL TIME with the up/down arrows Use the up/down arrows to move to the selected item (reverse display) and select REL TIME.
Page 248: Set The Image Center Mark To Show/Hide
Set the Image Center Mark to Show/Hide Set the Image Center Mark to Show/Hide A mark (CAFM：Camera Alignment Fiducially Mark) can be displayed to show the center of the image. ■ Set Show/Hide for the Image Center Mark Displays a mark at the center of the image, and can be used as a guide for recording and playback. Select from hide (OFF), white mark (WHT) or black mark (BLK) for the image center mark settings.
Page 249: Set The Image To Show/Hide On The Monitor
Set the Image to Show/Hide on the Monitor Set the Image to Show/Hide on the Monitor The image output to the monitor or viewfinder can be shown/hidden. Useful when using video signal switcher. ■Set the Image to Show/Hide on the Monitor １...
Page 250: Sound/Mute The Remote Control Operation
Sound/Mute the Remote Control Operation Sound/Mute the Remote Control Operation Turns the J-PAD3 sound ON/OFF. ■Set the Operating Sounds for the Remote Control １ Access the SYS MENU ( A 3-11)  Access TOP MENU ＞ SYS MENU from the STOP mode. ２...
Page 251: Auto View Function Settings
Auto View Function Settings Auto View Function Settings Function to set to automatically switch to the VIEW mode when the recording is finished. If the video input with the trigger uses the auto view function, it automatically switches to the VIEW mode. If split into multiple segments in the memory (A 4-43), it switches to the next segment when switching to the ARM mode, and the subsequent video can be made.
Page 252 Auto View Function Settings ■Use the Auto View Function １ Access the SYS MENU ( A 3-11)  Access TOP MENU ＞ SYS MENU from the STOP mode. ２ Select AUTOVIEW with the up/down arrows Use the up/down arrows to move to the selected item (reverse display) and select AUTOVIEW.
Page 253: Auto Black Balance Settings
Auto Black Balance Settings Auto Black Balance Settings HX-7S sets the auto black balance ON/OFF. About black balance (A 3-20) The black balance function should be the correction which unites the black level for every pixel of the sensor of HX-7S, and after it changes a shutter and frame size, please carry it out. If automatic black balance is turned ON, black balance will be automatically maintained at ""the "time of a VIEW start, an ARM start, and the end of REC""."...
Page 254 Auto Black Balance Settings However, if shutter line noise correction is turned ON, a horizontal line noise can be prevented, but recording rate performance falls. Example: The recording rate at the time of the HX-7S frame size 1920x1080, Recoding mode: Quality Shutter line noise correction A maximum of 1,940 tops / second (preset 1,500 top / second)
Page 255: Set The Warning Messages To Show/Hide
Set the Warning Messages to Show/Hide Set the Warning Messages to Show/Hide Some of the warning messages can be set to show/hide. Display of the following warning messages can be set to ON or OFF.  Battery warning (BATTERY) ： Warning when the memory backup battery charge or camera input power voltage drops or experiences something abnormal.
Page 256 Set the Warning Messages to Show/Hide ■ Set the Warning Messages to Show/Hide １ Display WARNING (A 3-11)  Access TOP MENU ＞ SYS MENU from the STOP mode. ２ Select the items to set with the up/down arrows and set them with the left/right arrows Select the warnings to set with the up/down arrows and select ON or OFF with the...
Page 257: Display System Information
Display System Information Display System Information Displays the system information. Settings cannot be changed. ■Set the System Information １ Display INFO (A 3-11)  Access TOP MENU ＞ SYS MENU ＞ INFO from the STOP mode. ２ Check the system information with the up/down and left/right arrows Select the item with the up/down arrows.
Page 258: Network Settings
Network Settings Network Settings Network settings can be made to control the PC control software HXLink. Other than operation with the J-PAD3, the HX-7S can operate and set while connected to a PC via a gigabit Ethernet and can download videos. This sets the network for connecting PC with a network. Refer to the PC or network device user guide for the PC connection and the network settings.
Page 259 Network Settings ■ Set the IP Address and Sub-net Mask If DHCP is set to disabled, you can set the IP address and sub-net mask yourself. Check with your network administrator for the IP address and sub-net mask settings or read the user guide for the devices such as routers.
Page 260: Restore Settings
Restore Settings Restore Settings Restores all of the settings to the factory settings. ■Restore Factory Settings Restores the default settings.  Even the recorded videos are erased. Make sure to save the videos you need. １ Access the SYSTEM SETUP MENU ( A 3-12) ...
Page 261 Other List of MENU Items ..........9-2 Details of the Recording Method ....9-14 Input of Individual Control Signals....9-42 Output of Exposure Pulse Signals ....9-45 External Input/Output Signal Circuits .... 9-47 (00424)
Page 262: List Of Menu Items
List of MENU Items List of MENU Items A list of the times that can be set from the J-PAD3 MENU. Items in bold are factory settings. ■TOP MENU BLK BAL OFF, REG, SET Black balance settings A 4-27 D-GAIN LOW, NORMAL, HIGH Digital gain settings during playback A 6-8...
Page 263 List of MENU Items ■SYS MENU(TOP MENU ＞ SYS MENU) 0～127 ID settings A 8-8 DATETIME ** ** ** ** ** ** Date and time settings: year, month, day, hour, A 8-9 minute, second OSD DISP NONE, FRAME, ALL Video on-screen display settings A 8-10 OSD MODE ALWAYS, STOP...
Page 264 List of MENU Items STRADDL Frame straddling settings menu A 9-5 VIDEOOUT OFF, ON Video output settings A 8-21 ZOOM FIT1, FIT2, 1/4, 1/2, x1, x2, x4 Video zoom display settings A 6-5 SCROLL Video scroll display, XY coordinate settings and A 6-6 display OFF, ON...
Page 265 List of MENU Items ■STRADDL (TOP MENU ＞ SYS MENU ＞ STRADDL) STRADDL OFF, ON Frame straddling settings A 4-69 PREVIEW ANY, 1ST, 2ND Preview frame A 4-71 ■WARNING (TOP MENU ＞ SYS MENU ＞ WARNING) BATTERY OFF, ON Memory backup battery life, abnormal camera input A 8-27 voltage warning RTC BATT...
Page 266 List of MENU Items AFTERFRM The number setting of frames aftere the trigger of a A 4-50 multi manual ■SIG SET (TOP MENU ＞ SYS MENU ＞ SIG SET) TRIG1 POSI, NEGA Trigger 1 input polarity setting A 4-73 TRIG2 CRNTON, CRNTOFF Trigger 2 input polarity setting A 4-73...
Page 267 List of MENU Items ■SYS SET (TOP MENU ＞ SYS MENU ＞ SYS SET) SEG SIZE 1～64, CUSTOM Memory segment partition settings A 4-44 REBOOT System reboot － ■DISP SET (TOP MENU ＞ SYS MENU ＞ DISPSET) AUTO DISP #1 Auto selection of monitor resolution settings A 8-5 DISP #2...
Page 268 List of MENU Items ELAPSED Show time elapsed A 8-29 ■SAVE MENU (TOP MENU ＞ SAVE MENU) DOWNLOAD Show USB save mode A 9-8 FREE FRM Show number of recordable USB frames A 7-5 SAVE FRM Show save range and settings for USB external media A 7-5 REC FRM Show recording frame range...
Page 269 List of MENU Items FILE Show file name A 7-3 ■AVI SET (TOP MENU ＞ SAVE MENU ＞ AVI SET) QUALITY 1～100(75) Image quality settings for MJPEG (Motion JPEG AVI) A 7-6 file compression PLAYRATE 1～60(30) AVI file playback rate settings A 7-6 ■SAVE SET (TOP MENU ＞...
Page 270 List of MENU Items ■SYSTEM SETUP MENU DHCP OFF, ON DHCP settings A 8-30 IP ADDR IP address, sub-net mask settings A 8-31 MAC ADDR Show MAC address － RESET Restore factory settings A 8-32 REBOOT System reboot A 8-32 9-10 (00424)
Page 271 List of MENU Items ■VIEW MENU BLK BAL OFF, REG, SET Black balance settings A 4-27 SCENE 0～65535 Scene number settings A 4-42 TRIGGER START, CENTER, END, CUSTOM, POST Trigger timing settings A 4-21 FRM RATE According to settings for other items (1000) Recording speed settings A 4-9 FRM SIZE...
Page 272 List of MENU Items D-GAIN LOW, NORMAL, HIGH Digital gain settings A 5-7 WHT BAL AUTO, 3100, 5000, 9000, REG, SET White balance settings A 5-8 ENHANCE OFF, LOW, NORMAL, HIGH Enhance settings A 5-9 GAMMA OFF, LOW, NORMAL Gamma settings A 5-10 CHROMA 0, 50, 100, 150, 200...
Page 273 List of MENU Items ■DUALRATE (VIEW MENU ＞ DUALRATE) DUALRATE OFF, ON Variable speed settings A 4-30 RATIO 2～100 Ratio A 4-30 BASERATE 2～ max value Number of standard recording speed frames A 4-30 ■LENS MODE FOCUS Focus value A 3-50 IRIS Changes the f-stop value with the f-stop value A 3-48...
Page 274: Details Of The Recording Method
Details of the Recording Method Details of the Recording Method Describes the screens for the normal, burst, event and multi trigger recording method as well as their operation. Select the recording method（A 4-46） ■ On-screen Display for the Recording Method Shows the current settings on-screen for the video when set to the normal, burst, event, multi-trigger, multi-manual,and linear recording method.
Page 275 Details of the Recording Method Multi Trigger Recording Method MULTI(A), MULTIS(A), MULTIS(L)  The letter A (①) is displayed in the frame counter when the current method multi-trigger recording method (excluding CONTINUOUS).  During the VIEW mode, the number of partitioned blocks is shown (②), and during the ARM mode, the block number currently being written is shown (③).
Page 276 Details of the Recording Method Multi Mamual Recording Method MULTI１(A)、MULTI1(C)、MULTI3(A)、MULTI3(C)  The character (①) of "A" (or "C") showing the present recording system being ALLBLOCKS (or CONTINUOUS) of an automatic block change is displayed.  t is displayed on trigger timing as "Multi1 ((②))" (or Multi3). ...
Page 277 Details of the Recording Method LINEAR Recording Method  The character (①) of "L" which displays that the present system is a linear recording method with a frame counter is displayed.  It is displayed on trigger timing as "LINEAR (②). ...
Page 278 Details of the Recording Method Memory Segment Number Display The letter shows the setting for the auto segment switch to the memory segment number. No auto segment switch  A letter is not shown for an auto segment switch.  Shown when set to NORMAL, EVENT, BURST, MULTI (A), MULTI(C), MULTI1/2/3(A/C), LINEAR .
Page 279 Details of the Recording Method ■ Normal Recording Method Operation The normal recording method is the recording method for videos input with a single trigger for the selected segment. The three settings of NORMAL, NORMAL (A), and NORMAL (L) match the auto segment switch settings.
Page 280 Details of the Recording Method NORMAL (A) Normal recording method, auto segment switch: AUTO Example partitioned into 4 segments auto segment switch with AUTO. ① After switching to the ARM mode, it switches to the REC mode upon trigger input and completes recording with the trigger timing.
Page 281 Details of the Recording Method NORMAL (L) Normal recording method, auto segment switch: LOOP Example partitioned into 4 segments, auto segment switch with LOOP. ① After switching to the ARM mode, it switches to the REC mode upon trigger input and completes recording with the trigger timing.
Page 282 Details of the Recording Method ■ Event Recording Method Operation The event recording method is the recording method for videos and events input from the first trigger for the selected segment and then input from external input/output for the second and subsequent triggers (event triggers) until the recording has been completed.
Page 283 Details of the Recording Method EVENT (A) Event recording method, auto segment switch: AUTO Example partitioned into 4 segments auto segment switch with AUTO. ① After switching to the ARM mode, it switches to the REC mode upon trigger input. The external trigger input is treated as an event trigger and records until recording is completed.
Page 284 Details of the Recording Method EVENT (L) Event recording method, auto segment switch: LOOP Example partitioned into 4 segments, auto segment switch with LOOP. ① After switching to the ARM mode, it switches to the REC mode upon trigger input. The external trigger input is treated as an event trigger and records until recording is completed.
Page 285 Details of the Recording Method ■ Burst Recording Method Operation The burst recording method is the recording method for videos where the frames for the recording time to the segments are controlled by trigger (burst trigger) input from external input/output. In the next figure, recording occurs for a single segment with three burst signals.
Page 286 Details of the Recording Method BURST Burst recording method, no auto segment switch Example partitioned into 4 segments, recording on segment 1. ① After switching to the ARM mode, it switches to the REC mode upon trigger input. ② Blocks are partitioned when the trigger input is disabled and the REC mode is paused. Recording restarts when the trigger input is enabled.
Page 287 Details of the Recording Method BURST (A) Burst recording method, auto segment switch: AUTO Example partitioned into 4 segments auto segment switch with AUTO. ① After switching to the ARM mode, it switches to the REC mode upon enabling trigger input. ②...
Page 288 Details of the Recording Method BURST (L) Burst recording method, auto segment switch: LOOP Example partitioned into 4 segments, auto segment switch with LOOP. ① After switching to the ARM mode, it switches to the REC mode upon valid trigger input. ②...
Page 289 Details of the Recording Method ■ Multi-Trigger Recording Method Operation The multi-trigger recording method can successively record multiple effects individually by previously partitioning segments into a maximum of 16 uniform blocks. After recording to a block, it automatically moves to the next block. The four settings of MULTI(A), MULTI(C), MULTIS(A), MULTIS(L) match the auto segment switching and block switching settings.。...
Page 290 Details of the Recording Method MULTI(C) Multi-trigger recording method, auto segment (block) switch: CONTINUOUS Example partitioned into two segments of four blocks, recording on segment 1. ① After switching to the ARM mode, it switches to the REC mode upon trigger input. Recording stops according to the trigger timing and it automatically moves to the next block and switches to the ARM mode.
Page 291 Details of the Recording Method MULTIS(A) Multi-trigger recording method, auto segment (block) switch: AUTO Example partitioned into two segments of four blocks, auto switch of segments according to AUTO. ① After switching to the ARM mode, it switches to the REC mode upon trigger input. Recording stops according to the trigger timing and it automatically moves to the next block and switches to the ARM mode.
Page 292 Details of the Recording Method MULTIS(L) Multi-trigger recording method, auto segment (block) switch: LOOP Example partitioned into two segments of four blocks, auto segment switch with LOOP. ① After switching to the ARM mode, it switches to the REC mode upon trigger input. Recording stops according to the trigger timing and it automatically moves to the next block and switches to the ARM mode.
Page 293 Details of the Recording Method ■Multi-Munual Recording Method The multi manual recording method designates the number of frames per single block and successively records the images repeatedly generated. After the block is recorded, it automatically moves to the next block. The six settings of “MULTI1(A)”, “MULTI1(C)”, “MULTI2(A)”, “MULTI2(C)”, “MULTI3(A)”, “MULTI3(C)”...
Page 294 Details of the Recording Method MULTI1(A) Multi trigger recording method, auto segment (block) switching: ALL BLOCKS Example split into two segments with recording in segment 1. ① After switching to the ARM mode, input the trigger to switch to the REC mode. After completing recording according to the trigger timing, it automatically moves to the next block and switches to the ARM mode.
Page 295 Details of the Recording Method MULTI1(C) Multi trigger recording method, auto segment (block) switching: CONTINUOUS Example split into two segments with recording in segment 1. ① After switching to the ARM mode, input the trigger to switch to the REC mode. After completing recording according to the trigger timing, it automatically moves to the next block and switches to the ARM mode.
Page 296 Details of the Recording Method MULTI2 A method of synchronized recording for internal synchronization/IRIG signals/EST signals with input of trigger signals. Additionally, this can be combined with the frame straddling function. For example, for engine combustion photography, this can be used when synchronizing the angle of the crank rotation or photographing a rotating body and a fluid.
Page 297 Details of the Recording Method MULTI2(C) Multi trigger recording method, auto segment (block) switching: CONTINUOUS Example split into two segments with recording in segment 1. ① After switching to the ARM mode, input the trigger to switch to the REC mode. After completing recording according to the trigger timing, it automatically moves to the next block and switches to the ARM mode.
Page 298 Details of the Recording Method MULTI3 A recording method identical to MULTI2 except there are no limits to the number of trigger inputs. The number of blocks (number of possible trigger inputs) are determined according to the number of frames per block.
Page 299 Details of the Recording Method MULTI3(C) Multi trigger recording method, auto segment (block) switching: CONTINUOUS Example split into two segments with recording in segment 1. ① After switching to the ARM mode, input the trigger to switch to the REC mode. After completing recording according to the trigger timing, it automatically moves to the next block and switches to the ARM mode.
Page 300 Details of the Recording Method ■Linear recording method The linear recording method is a method of recording images by controlling the number of frames to the segment for the recorded time with “Pause” and “Play” using the J-PAD3 button input. In the following figure, recording is conducted with two pauses.
Page 301 Details of the Recording Method LINEAR Example split into four segments with recording in segment 1. ① After switching to the ARM mode, it automatically switches to the REC mode. ② The block is split upon input of the trigger button and stands by in the PAUSE mode. Press the ARM button again to restart recording in the REC mode.
Page 302: Individual Control Signal Input/Output
Individual control signal input/output Individual control signal input/output This describes the ARM command, ARM status, FAULT status external input/output. Independent input/output control is available on the HX-7S using the HX-7S CTL Cable (sold separately).  ARM command input： Input of valid signals switches to the ARM mode from the STOP or VIEW modes. ...
Page 303 Individual control signal input/output ARM Command（ARM CMD） ARM Command Signals  TTL level, 5V pull-up, isolation, allowable voltage range：-0.5～5.5VDC  ARM command input circuit specifications(A 9-55), ARM command connector specifications(A 10-41)  Settings for first enabled signals：Trailing edge detection of ARM command signals(A 4-73) ■...
Page 304 Individual control signal input/output FAULT Status（FAULT STS） FAULT Status Signals  Open collector output, isolation, maximum applied voltage：50VDC  FAULT status output circuit specifications (A 9-54), FAULT status connector specifications (A 10-41) The FAULT status outputs the enabled polarity (initial value: NEGA) for the next states (fail state). ...
Page 305: Exposure Pulse Signal Output
Exposure pulse signal output Exposure pulse signal output This describes the EPO (Exposure Pulse Output) output. The HX-7S outputs exposure pulse signals to photograph synchronously with cameras and devices from other manufacturers. ■Connect the EPO • A J3 split cable (sold separately) is required for EPO use. １...
Page 306 Exposure pulse signal output EPO signals  5V CMOS level, isolation, input/output current±4mA or less  EPO output circuit specifications (A 9-51), EPO connector specifications (A 10-43) During exposure, the L level is output but at all other times the H level is output. The polarity can be changed with the setting.
Page 307: External Input/Output Signal Circuits
External input/output signal circuit External input/output signal circuit ■TRIG1 Input Equivalence Circuit Diagram Isolated 5V Internal Vdd 100Ω TRIG1 HCT14 Isolated GND Internal GND Isolation, TTL level, 5Ｖ pull-up resistance4700Ω, Ｌ level：－0.5V(minimum applied voltage)～0.8V, Ｈ level：2V～5.5V(maximum applied voltage), trigger enabled for Ｈ→Ｌ, contact point input possible, polarity reverse function Recommended Interface Circuit SWITCH...
Page 308 External input/output signal circuit ■TRIG2 Input Equivalence Circuit Diagram Internal Vdd 1500Ω TLP291 TRIG2 RETURN Internal GND Isolation, photo coupler current loop, current limiting resistance 1500Ω, trigger enabled at 5V or higher, maximum applied voltage ±32V, CRNTOFF(current OFF) level：0.1mA or less, CRNTON (current ON) level： 2.4mA or more, photo coupler TLP124, polarity reverse function Recommended Interface Circuit 5～12V...
Page 309 External input/output signal circuit ■EST2／EVENT Input Equivalence Circuit Diagram Isolated 5V Internal Vdd 100Ω EST2 HCT14 RETURN Isolated GND Internal GND Isolation, TTL level, 5V pull-up resistance 4700Ω, Ｌ level：－0.5VDC (minimum applied voltage)～0.8VDC, Ｈ level：2VDC～5.5VDC (maximum applied voltage), exposure starts at Ｈ→Ｌ, photographs one image Recommended Interface Circuit EST2 RETURN...
Page 310 External input/output signal circuit Timing HX-7S 5μs or more EST signal 0.8V Sensor Exposure exposure 0～1.5μs Timing diagram when the noise filter setting is０μs. Exposure delay (T) ＝ Indefinite delay ＋ delay from EST filter ↓ ↓ Ａ-ＥＳＴ： Synchronous accuracy 0～486ns 1.5μs ＥＳＴ...
Page 311 External input/output signal circuit ■EPO Input Equivalence Circuit Diagram Internal Vdd Isolated 5V 5V CMOS RETURN Internal GND Isolated GND Isolation, 5V CMOS level, Ｌlevel ： 0.4VDC or less, Ｈlevel ： 4.0VDC or more, input/out current ±4mA or less, L exposure. Polarity reverse function Recommended Interface Circuit RETURN Timing...
Page 312 External input/output signal circuit Simple Synchronized Recording Synchronized recording can be easily performed because the multiple HX/GX series cameras or the fx series cameras with the exposure start signal (EST) input function use exposure pulse output (EPO). Additionally, synchronized recording is also possible with other cameras that have equivalent functions. Since there is a possibility that the time precision cannot be guaranteed due to signal delays or time changes, the limitation is that all of the cameras must have the same frame rate.
Page 313 External input/output signal circuit ■ARM Status Input Equivalence Circuit Diagram Internal Vdd Isolated 5V 2SC5876 ARM STS RETURN Isolated GND Isolation, open collector output, maximum applied voltage 50VDC, maximum current 100mA, short circuit in the ARM mode. Polarity reverse function. Recommended Interface Circuit１...
Page 314 External input/output signal circuit ■FAULT Status Input Equivalence Circuit Diagram Internal Vdd Isolated 5V 2SC5876 FAULT RETURN Isolated GND Isolation, open collector output, maximum applied voltage 50VDC, maximum current 100mA, short circuit in the FAULT state. Polarity reverse function. Recommended Interface Circuit１ FAULT RETURN To detect that multiple cameras are all in FAULT, use circuit 1, connect the FAULT status output for all of...
Page 315 External input/output signal circuit ■ARM Command Input Equivalence Circuit Diagram Isolated 5V Internal Vdd 100Ω ARM CMD HCT14 RETURN Isolated GND Internal GND Isolation, TTL level, 5Ｖ pull-up resistance 4700Ω, Ｌlevel：－0.5V(minimum applied voltage)～0.8V, Ｈ level：2V～5.5V(maximum applied voltage), jump to the ARM mode with L, contact input possible. Polarity reverse function.
Page 316 External input/output signal circuit ■TRIG OUT Output Equivalence Circuit Diagram Internal Vdd Isolated 5V TRIG OUT CMOS RETURN Internal GND Isolated GND Isolation, 5V CMOS level, Ｌlevel ： 0.4VDC or less, Ｈlevel ： 4.0VDC or more, input/out current ±4mA or less, H exposure.
Page 317 External input/output signal circuit ■Power Control Input (PWRCNT) Input Equivalence Circuit Diagram Isolated 5V Internal Vdd 100Ω PWR CNT TC7SET08 RETURN Isolated GND Internal GND Isolation, TTL level, 5Ｖ pull-up resistance 4700Ω, Ｌlevel：－0.5V(minimum applied voltage)～0.8V, Ｈ level：2V～5.5V(maximum applied voltage), power ON with H, power OFF with L, contact input possible. No polarity reverse function.
Page 318 External input/output signal circuit ■IRIG-B Standards IRIG Standard 200-98, IEEE1344 Compatible with１kHz carrier modulated IRIG-B (B120, B122, B123 format). Not compatible with carrier signals used, BCD codes, some CF (IEEE1344 の TMOF) un-modulated IRIG-B (B000, B003 format). Modulated IRIG-B waveform and exposure timing Ｐ（reference）bit ０...
Page 319 External input/output signal circuit Exposure Phase Shift Function Used as a method of realizing the high resolution and high recording speeds while using multiple cameras. Used for remote recording to ignore the parallax from camera placement. The setting is the phase angle (1 degree units, 0～359). The exposure phase shift settings can only be made from the camera control software HXLink.
Page 320: Troubleshooting
Troubleshooting Troubleshooting ■Power Problem Solution No power  Check the power cable connection  Turn the power switch on the AC adapter ON 2-12  If power is supplied from someplace other than the AC adapter, check the voltage and the rated output Can’t charge the battery ...
Page 321 Troubleshooting ■Recording Problem Solution Unable to access the ARM mode  If the auto segment switch (recording method) is set to AUTO, or if the auto view function is used, recorded segments are protected and it won’t switch to the ARM mode → ...
Page 322 Troubleshooting ■Images Problem Solution The video is completely black  Remove the lens cap  Set the record speed and shutter speed and prepare the 3-17 necessary lighting Too much noise  Gain too high → Set the sensor gain and digital gain ...
Page 323 Troubleshooting ■List of Warning Displays Warning Message Details Response Auto pilot init failed!  The auto pilot sequence  Read the auto pilot section in the － file cannot be read HXLink user’s guide Auto pilot sequence error!  The auto pilot sequence ...
Page 324 Troubleshooting sure they aren’t blocked Warning Message Details Response Memory protected.  Memory protected with the  Erase the recorded video 4-44 AUTOVIEW=AUTO auto view function  Turn OFF the auto view function 8-23 Memory protected. REC  Memory protected with the ...
Page 325 Troubleshooting Warning Message Details Response 4-73 Trigger signal is asserted.  External trigger is input  The external input/output Trigger signal is asserted. during startup and when enabled polarity is not set [ARM] switching to the VIEW/ARM properly mode  Error in external input/output 4-52 connection (Ex.：EST1 signals connected to TRIG1) →...
Page 326 9-66 (00424)
Page 327 Specifications Image Sensor ..........10-2 Recorder............10-16 Video Converter ........... 10-34 System Control ..........10-36 Input/output Connector ......10-40 Configuration, Environment, Applicable Standards, Precision, Supplies ........10-52 Main Attachments, Products Sold Separately ..............10-53 Figures ............10-58 10-1 (00424)
Page 328: Image Sensor
2560 × 1920 pixels(4,910,000 pixels) Size of Area 28.16 × 21.12 mm Precision at Center Optical Axis ±0.5 mm ■Frame Rates MEMRECAM HX-7S Recording mode: Quality Mode Preset Frame Rates 50、60、100、250、500、850、1,000、1,250、1,500、2,000、2,500、 3,000、 4,000、 5,000、 6,000、 8,000、 10,000、 12,000、 15,000、 20,000、...
Page 329 Image Sensor ■Frame Rate and Valid Pixels MEMRECAM HX-7S Pre-set value for internal timing. GXC is OFF. Limited number of preset available in the recording mode of "Sensitivity" Note 1 ) Limitation in the recording mode (Sensitivity / Quality) ○：...
Page 330 Image Sensor Center image Center image Size of Valid Maximu Recording shifted to center of shifted to center Photographic Area Horizontal/ m Frame mode sensor by 32pixel sensor (mm) Vertical Rate Note 1 ) (H) and 4 lines (V) 32pixel (H) and 4 GXC OFF Ratio (frames/...
Page 331 Image Sensor Center image Center image Size of Valid Maximu Recording shifted to center of shifted to center Photographic Area Horizontal/ m Frame mode sensor by 32pixel sensor (mm) Vertical Rate Note 1 ) (H) and 4 lines (V) 32pixel (H) and 4 GXC OFF Ratio (frames/...
Page 332 Image Sensor Center image Center image Size of Valid Maximu Recording shifted to center of shifted to center Photographic Area Horizontal/ m Frame mode sensor by 32pixel sensor (mm) Vertical Rate Note 1 ) (H) and 4 lines (V) 32pixel (H) and 4 GXC OFF Ratio (frames/...
Page 333 Image Sensor Center image Center image Size of Valid Maximu Recording shifted to center of shifted to center Photographic Area Horizontal/ m Frame mode sensor by 32pixel sensor (mm) Vertical Rate Note 1 ) (H) and 4 lines (V) 32pixel (H) and 4 GXC OFF Ratio (frames/...
Page 334 Image Sensor ＜Recording mode: Quality＞ Pre-set value for internal timing. GXC is ON or OFF. Note 1 ) Limitation in the recording mode (Sensitivity) ○： Available ×： Not available △： Available with limited sync function (no line sync) Note 2) Lower frame rate available Note 3) Conditions showing inconsistency in between center of Image &...
Page 335 Image Sensor Center of image Center of image shifted to center shifted to center Recording Size of Valid Horizonta Maximum sensor sensor mode Photographic Area l/Vertical Frame Rate 32pixel (H) and 4 32pixel (H) and 4 Note 1 ) (mm)GXC OFF Ratio (frames/sec) lines (V)
Page 336 Image Sensor Center of image Center of image shifted to center shifted to center Recording Size of Valid Horizonta Maximum sensor sensor mode Photographic Area l/Vertical Frame Rate 32pixel (H) and 4 32pixel (H) and 4 Note 1 ) (mm)GXC OFF Ratio (frames/sec) lines (V)
Page 337 Image Sensor Center of image Center of image shifted to center shifted to center Recording Size of Valid Horizonta Maximum sensor sensor mode Photographic Area l/Vertical Frame Rate 32pixel (H) and 4 32pixel (H) and 4 Note 1 ) (mm)GXC OFF Ratio (frames/sec) lines (V)
Page 338 Image Sensor Center of image Center of image shifted to center shifted to center Recording Size of Valid Horizonta Maximum sensor sensor mode Photographic Area l/Vertical Frame Rate 32pixel (H) and 4 32pixel (H) and 4 Note 1 ) (mm)GXC OFF Ratio (frames/sec) lines (V)
Page 339 Image Sensor Center of image Center of image shifted to center shifted to center Recording Size of Valid Horizonta Maximum sensor sensor mode Photographic Area l/Vertical Frame Rate 32pixel (H) and 4 32pixel (H) and 4 Note 1 ) (mm)GXC OFF Ratio (frames/sec) lines (V)
Page 340 Image Sensor ■Sensitivity MEMRECAM HX-7S Quality Mode Sensitivity Mode Color ISO 2,000 ISO 16,000 （about 3,000lx）（about 360lx） ISO 10,000 ISO 80,000 （about 600lx）（about 72lx）（Digital gain：NORMAL、Iris:F4、Frame rate:1000 frames/sec ,Shutter：1/1000s） ※ Illumination when the subject output signals for a reflection rate of 89% reach 100%, lens adjusted for the aperture.
Page 341 Image Sensor ■Lens Mount Type of Mount F Mount, C Mount, NM Mount, EF Mount(select at purchase) F Mount NIKON F Mount, compatible with lens without a diaphragm C Mount Vignetting from the image resolution NM Mount Compatible with Leica M Mount EF Mount CANON EF Mount Focus and diaphragm remote control, auto control function(HXLink)
Page 342: Recorder
Recorder Recorder ■ Recording Memory Installed Memory 16GB ／ 32GB Memory Segment Partitions 16GB model： 256MB×64, 512MB×32, 1GB×16, 2GB×8, 4GB×4, 8GB×2, 16GB×1 32GB model： 512MB×64, 1GB×32, 2GB×16, 4GB×8, 8GB×4, 16GB×2, 32GB×1 ■Recording Bit Length Image Sensor Output 12 bit Recording bits per pixel Select from 8／10／12 bit 12 bit：...
Page 343 Recorder ■Recording Times Recodding mode:Quality 16GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 2560 1920 2.70 3.24 4.06 2560 1904...
Page 344 Recorder Recodding mode:Quality 16GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 1024 4,000 2.97 3.57 4.46 1024 5,000 2.87 3.45...
Page 345 Recorder Recodding mode:Quality 16GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 25,000 3.23 3.88 4.85 25,000 3.32 3.98 4.98 25,000...
Page 346 Recorder Recodding mode:Quality 16GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 100,000 4.01 4.82 6.02 100,000 4.42 5.30 6.63 100,000...
Page 347 Recorder Recordingmode:QUALITY 32GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 2560 1920 5.44 6.53 8.17 2560 1904 5.49 6.59 8.24...
Page 348 Recorder Recordingmode:QUALITY 32GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 1024 4,000 5.99 7.18 8.98 1024 5,000 5.79 6.94 8.68...
Page 349 Recorder Recordingmode:QUALITY 32GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 25,000 6.51 7.81 9.77 25,000 6.68 8.02 10.03 25,000 6.73...
Page 350 Recorder Recordingmode:QUALITY 32GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 100,000 8.08 9.70 12.12 100,000 8.89 10.67 13.34 100,000 22.23...
Page 351 Recorder ■Recording time Recording mode:SENSITIVE 16GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 2560 1920 2.70 3.24 4.06 2560 1904...
Page 352 Recorder Recording mode:SENSITIVE 16GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 6,000 2.86 3.43 4.29 6,000 3.19 3.83 4.79 8,000...
Page 353 Recorder Recording mode:SENSITIVE 16GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 40,000 3.68 4.42 5.52 40,000 4.60 5.52 6.90 40,000...
Page 354 Recorder Recording mode:SENSITIVE 32GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 2560 1920 5.44 6.53 8.17 2560 1904 5.49 6.59...
Page 355 Recorder Recording mode:SENSITIVE 32GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 6,000 5.75 6.90 8.63 6,000 6.43 7.72 9.65 8,000...
Page 356 Recorder Recording mode:SENSITIVE 32GB model Preset settings. Recording time is when the Frame Rate is at the maximum value. Valid Pixels Recording Time (sec) Frame Rate Horizontal Vertical ( frames/sec ) 12bit 10bit 8bit 40,000 7.41 8.89 11.11 40,000 9.26 11.11 13.89 40,000...
Page 357 Recorder ■ Live Image Display Modes Displaying Live Images VIEW mode, ARM mode, REC mode Output Connector DP connector(Displayport) Refresh Rate approx.19～29fps (depends on the resolution)  approx.19fps in display resolution of 1920x1080 and recording resolution of 2560x1920, ZOOM: FIT1 ...
Page 358 Recorder ■Recording Trigger Mode Normal Trigger Normal recording trigger Event Trigger First trigger signal： Trigger and subsequent trigger signals： Records external trigger signals as event Number of possible input pulses： Burst trigger Recording when external trigger signals ON Multi Trigger Selected segments partitioned into 2 ～...
Page 359 Recorder ■ Synchronized Recording Data Recording scene number Closed caption method Closed caption method Recording trigger mode settings Closed caption method Frame Rate Closed caption method Frame size Closed caption method Shutter speed Closed caption method Recording image quality settings Closed caption method Recording comments Closed caption method...
Page 360: Video Converter
Video Converter Video Converter ■Video Output Output signals MONITOR OUT： Displayport signals Image refresh rate approx.19～29fps (depends on the resolution)  approx.19fps in display resolution of 1920x1080 and recording resolution of 2560x1920, ZOOM: FIT1  approx. 29fps in display resolution of 680x480, regardless of recording resolution and ZOOM settings Display resolution Displayport：...
Page 361 Video Converter ■Playback Display Playback speed Frame advance, 1～1920 frames/sec , forward and reverse Frame jump Trigger point, recording start point, recording end point Single playback, loop playback Playback mode Playback range setting Set start and end points 10-35 (00424)
Page 362: System Control
System Control System Control ■Status LED CFast Lit red： In accessing Off： No connection / No access / No power ※LED indication fully relis on CFast card spefication and therefore LED could not light ETHERNET Lit Orange 1000BASE-T network communication Flashing Green 100BASE-TX network communication No network connection...
Page 363 System Control MEM BACKUP Lit Green: Memory backup is valid by AC adapter (Charge: High). Flashing Green: Memory backup is valid by built-in battery only (Charge: High). Lit Orange: Memory backup is valid by AC adapter (Charge: Medium) Flashing Orange: Memory backup is valid by built-in battery only (Charge: Medium) Lit Red: Memory backup is valid by AC adapter...
Page 364 System Control trigger frame time for the currently displayed screen used as the trigger detection time, time displayed as “trigger standard” time or “exposure center” time added with the frame cycle Memory%： Displayed in % of the recording range for the currently displayed screen, top 0%, last 100% Memory segment number 1～64...
Page 365 About 1 hour (16GB model, at the time of new battery use) Backup start condition Power supply of MEMRECAM HX-7S is OFF after a recording start Battery backup start condition DC input voltage 19.0V or less to the MEMRECAM HX-7S after...
Page 366: Input/Output Connector
Input/output Connector Input/output Connector ■DC-IN Connector Application Power input Model LEMO EEG.2B.302 Plug ODU S12L0C-P02MTQ0-9200 Power voltage DC20 - 32V Power use HX-7S about 63W 850pps, ARM mode, when peripheral devices not connected Power protection Reverse polarity： Internal protection IC Excess voltage：...
Page 367 Input/output Connector ■CTL Connector Application Discreet control signal input/output Model LEMO EEG.1B.310 Plug LEMO FGG.1B310 ARM command input Signal level: TTL level, 5V pullup, isolation L Level: -0.5VDC (minimum applied voltage) ～ 0.8VDC H Level ： 2VDC ～ 5.5VDC (maximum applied voltage) Function: Switch to ARM mode for H→L when shifting to the...
Page 368 Input/output Connector Pin position Direction Function ・Input/output Level Notes Name ARM command IN TTL, contact ARM command IN RTN TTL, contact Isolation ground ARM status out Open collector RM status out RTN Open collector Isolation ground FAULT status out Open collector FAULT status out RTN Open collector Isolation ground...
Page 369 Input/output Connector ■REMOTE Connector Application Remote operation(compatible with the GX series J3 connector) Model LEMO EGG.2B.318 Plug LEMO FGG.2B.318 Ethernet 1000BASE-T (IEEE802.3ab), 100BASE-TX (IEEE802.3u) DHCP compatible, isolation EST2/EVENT input Signal level: TTL level, 5V pullup, isolation L level ： -0.5VDC(minimum applied voltage) ～ 0.8VDC H level ：...
Page 370 Input/output Connector Power control (PWRCNT) input Signal level: TTL level, 5Vpullup , isolation L level ： -0.5VDC(minimum applied voltage) ～ 0.8VDC H level ： 2VDC ～ 5.5VDC(Maximum applied voltage) Function: H：Power ON L：Power OFF contact input possible, polarity reverse function Pin Position Direction Function ・Input/output Level...
Page 371 Input/output Connector ■TRIG Connector Application TRIG1 trigger signal input Model BNC receptacle Plug BNC plug TRIG1 input Signal level: TTL level, 5V pullup, isolation L Level: -0.5VDC (minimum applied voltage) ～ 0.8VDC H Level ： 2VDC ～ 5.5VDC (maximum applied voltage) Function: Enabled trigger with H→L, Contact input...
Page 372 Input/output Connector ■J-PAD3 Connector Application Dedicated remote controller J-PAD3 connection Model LEMO EGG.0B.306 Plug LEMO FGG.0B.306 DC24V output Signal level: Power input(DC-IN connector)through output Maximum output current：1A, no protection circuit Data transmission Standards： RS-232C standards(only TXD and RXD), no isolation Pin position Direction Function ・Input/output Level...
Page 373 Input/output Connector ■USB2.0 Connector Application USB device connection Model USB Standard-A receptacle Plug USB Standard-A plug Number of connectors Standards USB2.0 standards, USB HOST Pin position Pin No. Name Direction Function ・Input/output Level Notes VBUS USB power output, 5V・0.5A USB2.0 HS signals USB2.0 HS signals USB power output return shell...
Page 374 Input/output Connector ■MONITOR OUT Connector Application DisplayPort video output Model DisplayPort receptacle (molex 47272-0001) Plug DisplayPort plug Standards DisplayPort 10-48 (00424)
Page 375 Input/output Connector Pin position Pin o. Name Direction Function ・Input/output Level Notes Main Lane 0+ Differential high-speed data signal Main Lane 0- Differential high-speed data signal Main Lane 1+ Differential high-speed data signal Main Lane 1- Differential high-speed data signal Main Lane 2+ Differential high-speed data signal Main Lane 2-...
Page 376 Input/output Connector ■LENS CTL Connector Application EF control lens mount control connection Model LEMO EEG.0B.309 Plug LEMO FHG.0B.309 DC12V output Signal level: DC12V, maximum output current：1A, no protection circuit Standards： RS-232C standards(only TXD and RXD), no isolation VIDEO output Function: lens focus control・aperture control ・focal length information acquisition Pin position...
Page 377 Input/output Connector Pin position Pin No. Name Direction Function ・Input/output Level Notes A+ (TX) A- (TX) B- (RX) B+ (RX) LED1 (Power Indicator) LED2 (Access Indicator) PC10 PC11 PC12 PC13 3.3V PC14 3.3V PC15 PC16 PC17 10-51 (00424)
Page 378: Configuration, Environment, Applicable Standards, Precision, Supplies
Configuration, Environment, Applicable Standards, Precision, Supplies Configuration, Environment, Applicable Standards, Precision, Supplies ■Configuration Exterior dimensions(W×H×D) W100×H100×D205mm (excluding connectors, protruding parts and mount) Weight of unit 3.0kg (excluding cable and option) Tripod with screws 3/8-16UNC, Depth 7mm(large screws)×2 ■Environment Operating temperature and 0～40℃, 30～80%RH(no condensation) humidity Storage temperature and...
Page 379: Main Attachments, Products Sold Separately
Main Attachments, Products Sold Separately Main Attachments, Products Sold Separatel ■F Mount Adapter Exterior dimensions(W×H×D) 88 × 88 × 37.2 mm Weight About 0.2 kg Lens F mount lens (vignetting from image resolution with some F mount lenses) ■C Mount Adapter Exterior dimensions(W×H×D) 88 ×...
Page 380 Main Attachments, Products Sold Separately ■Simple J3 cable Length 0.5 m Plug Camera： LEMO FGG.2B.318 ETHER： RJ45 receptacle ■HX-7S KIT CDROM HXLink CD-ROM： HXLink CD-ROM Control software HX-7S User’s guide： HX-7S User’s guide electronic manual(this document) HXLink User’s guide： HXLink detailed user’s guide Brochures HXLink Quick start guide：...
Page 381 Main Attachments, Products Sold Separately ■AC Adapter (Sold separately) Exterior dimensions(W×H×D) 120 × 49.3 × 250 mm(not including connectors) Weight 1.4 kg Operating temperature and 0～70℃, 5～95%RH(no condensation) humidity Storage temperature and -40～85℃, 10～95%RH(no condensation) humidity Connectors Camera： NANABOSHI NTE-243-RF AC：...
Page 382 Main Attachments, Products Sold Separately ■J3 Split Cable (Sold separately) Length 0.5 m Plug Camera： LEMO FGG.2B.318 ETHER： RJ45 receptacle EST2： BNC Plug IRIG-B： BNC Plug TRIG2： BNC Plug EPO： BNC Plug PWRCNT： BNC Plug ■HX-7S CTL Cable (Sold separately) Length 0.5 m Plug...
Page 383 Main Attachments, Products Sold Separately ■Viewfinder (Sold separately) Exterior dimensions (W×H×D) 129 × 88.5 × 28 mm(excluding protruding parts) Weight Approximately 0.25kg Operating temperature and 0～+40℃, 30～80%RH(no condensation) humidity Storage temperature and -20～60℃, 30～80%RH(no condensation) humidity Power DC7.2V Sony M series battery or AC Adapter 5 inch, TFT, 800x480, 400cd/m2 NP-FM500H：Approx.
Page 384: Figures
Figures Figures ■MEMRECAM HX-7S Camera Unit Dimensional Figure 10-58 (00424)
Page 385 Figures ■AC Adapter Dimensional Figure 10-59 (00424)
Page 386 10-60 (00424)
Page 387 Index Index ..............11-2 11-1 (00424)
Page 388 Index Index BEFORMFRM ···················································· 4-51 BLACK BALANCE ·············································· 4-27 MISMATCHED················································ 8-27 BLK BAL ··························································· 4-27 BLOCK ···················································· 4-46, 9-29 ABNORMAL FRAME RATE WARNING ················· 8-27 BLOCKS ···························································· 4-50 AC ADAPTER ······················································· 2-8 BURST ······························································ 9-26 AC CABLE ················································· 1-10, 2-8 BURST (A) ························································...
Page 389 Index EVENT (A) ························································ 9-23 EVENT (L) ························································ 9-24 EVENT FRAME ················································· 9-22 DATE AND TIME ················································· 8-9 EVENT INPUT SYMBOL ·······································3-3 DATETIME ·························································· 8-9 EVENT RECORDING METHOD ··························· 9-22 DC CABLE ················································· 1-10, 2-8 EVENT SIGNAL ················································· 4-60 DC CONNECTOR ··············································· 1-10 EVENT SYMBOL ··················································3-3 DC-IN CONNECTOR ············································...
Page 390 Index FRAME SIZE PRIORITY ······································ 4-18 INTERNAL SYNCHRONIZATION ························ 4-55 FRAME STRADDLING ········································ 4-69 IP ADDR ···························································· 8-31 FRAME TIME ······················································· 3-4 IP ADDRESS ······················································ 8-31 STANDARDS ·················································· 8-16 IRIG SYMBOL ······················································ 3-3 FRM DISP ·························································· 8-13 IRIG TIME SYNCHRONIZATION ··············· 4-65, 4-67 FRM RATE ·····························...
Page 391 Index LOW LIGHT BUTTON ································ 1-9, 5-13 MULTI3(A) ······················································· 9-38 LOW LIGHT FUNCTION ····································· 5-13 MULTI3(C) ······················································· 9-39 LOW SPEED RATIO ··········································· 4-31 MULTIS(A) ······················································· 9-31 LOWLIGHT ······················································· 5-14 MULTIS(L) ······················································· 9-32 LUMINANC ············································· 5-12, 6-12 MULTI-TRIGGER RECORDING METHOD ··········· 9-29 LUMINANCE PROPERTIES·······················...
Page 392 Index PLAYBACK END FRAME ···································· 3-33 RGB COR. ················································ 5-11, 6-12 PLAYBACK RANGE BAR ····································· 3-34 RGB MATRIX··········································· 5-11, 6-12 PLAYBACK SPEED ····························· 3-4, 3-32, 7-6 RING BUFFER ··················································· 3-21 PLAYBACK START FRAME ································ 3-33 ROUND DECIMAL PLACES································· 8-14 PLAYRATE ·························································· 7-6 RTC BATTERY WARNING ··································...
Page 393 Index STRADDL ·················································· 4-70, 9-5 TRIGGER TIME ····················································3-2 SUB-NET MASK ················································ 8-31 DISPLAY ······················································· 8-12 Symbol ······························································· 3-3 TRIGGER TIMING ······························ 3-2, 3-4, 3-18 SYNC SEL ························································· 4-57 SYNC TIME ······················································· 4-66 SYNCHRONIZATION SIGNAL ···························· 4-57 SYS MENU ·························································· 9-3 SYS SET ······························································...
Page 394 Index REG ································································· 6-9 SET/REG ························································· 5-8 WHITE BALANCE SETTINGS SET/REG ························································· 5-9 WHT BAL ···················································· 5-8, 6-9 YC TIFF ····························································· 7-14 ZOOM ························································· 5-4, 6-5 11-8 (00424)

This manual is also suitable for:

St-857

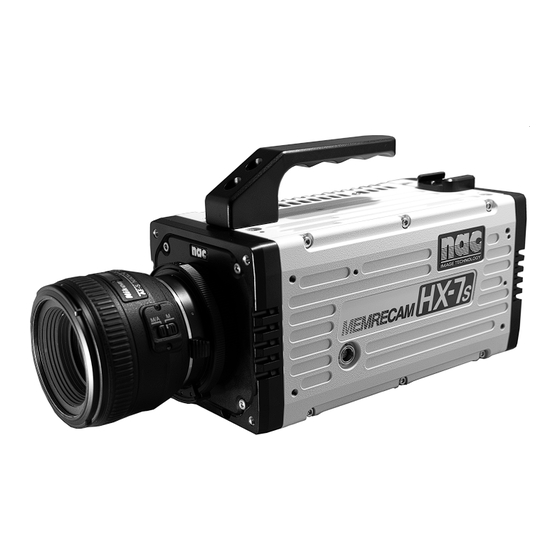

NAC Image Technology MEMRECAM HX-7S User Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NAC Image Technology MEMRECAM HX-7S

Summary of Contents for NAC Image Technology MEMRECAM HX-7S

This manual is also suitable for:

Table of Contents
