NAC Image Technology SP-642 User Manual page 156

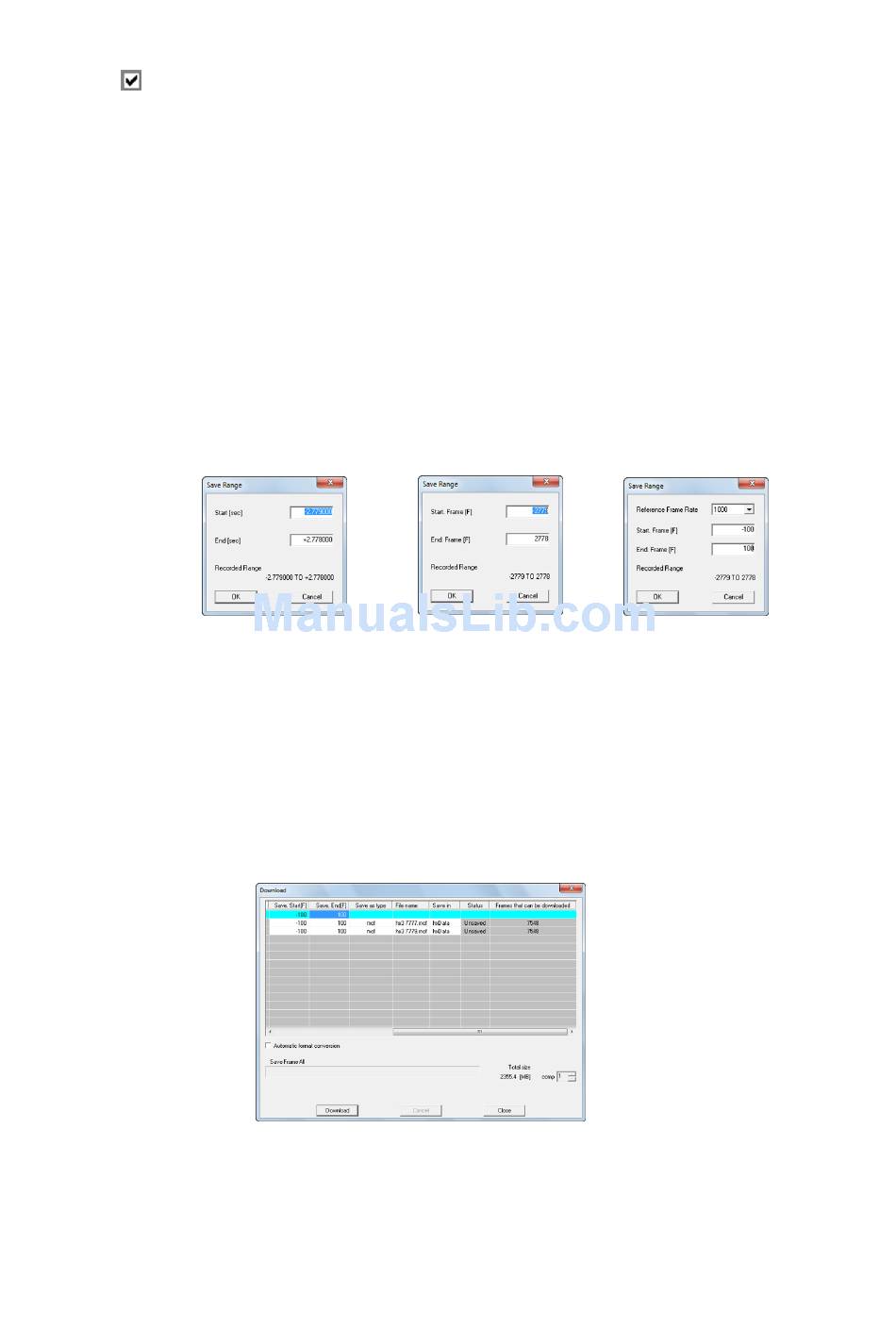

The following items can be set in the "Download" dialogue.
Start Save [sec]
Start Save [F]
End Save [sec]
End Save [F]
4 - 80
Data checked are subject to batch settings and downloads. If not
downloading, remove the check.
Start time for the save range.
Start frame for the save range.
The unit for relative time settings is seconds. Specify up to 1
microsecond.
The unit for frame settings is a single frame.
With multi trigger recording, the start save frame/time is set for all blocks.
End time for the save range.
End frame for the save range.
The unit for relative time settings is seconds. Specify up to 1
microsecond.
The unit for frame settings is a single frame.
With multi trigger recording, the start save frame/time is set for all blocks.
Double click on a cell to either start a save or end a save when specifying
the save range.
Double click to display the "Save Range" dialogue.
Set a range for downloading to a start time/frame and end time/frame, and
press OK.
If "Save Range" in "Batch" is selected when the frame counter display
indicates "Frame", the "Reference Frame Rate" must be selected. Set the
time corresponding to the "Reference Frame Rate" save the start frame and
end frame for each camera.
The figure below shows an example when the reference frame rate is set to
2000, and the start and end frame is -200~200. In this case, the save range
for each camera is the frame corresponding to -0.1 ~ 0.1[sec].
(00292)H
