4.4 Recording Settings

■

Parameter Settings

The parameter can be set from HXLink to the camera while connecting the camera with beginning
the camera connection.
Parameters set at the beginning of camera connections are specified in the "Camera Connection
Settings" dialogue. Refer to page 6-2 for details.
Perform any of the following for the method to set parameters for the camera during camera
connection.
・
"Camera Parameters Toolbar" (Refer to page 3-17 for details.)
・
"Controls" window
・

"List of Camera Settings" window

・
"Camera Details" dialogue
・
"Recording " menu(Refer to page 8-25 for details.)
・
"Options" dialogue (Refer to page 7-2 for details.)
If the camera recording parameters are set, the image displayed on the monitor (camera VIEW
image) is updated to the parameters set.
□ Parameter Setting File (prm file)
Parameters set for the camera can be saved in a file (prm).
Details of the saved parameter file (prm) can be set on the camera.
To save or read the parameter file, select the desired camera from the item list, click
"Save Camera Setting /Import Camera Setting" on the file menu and specify the file name.
Refer to Appendix C for details of the parameters file.

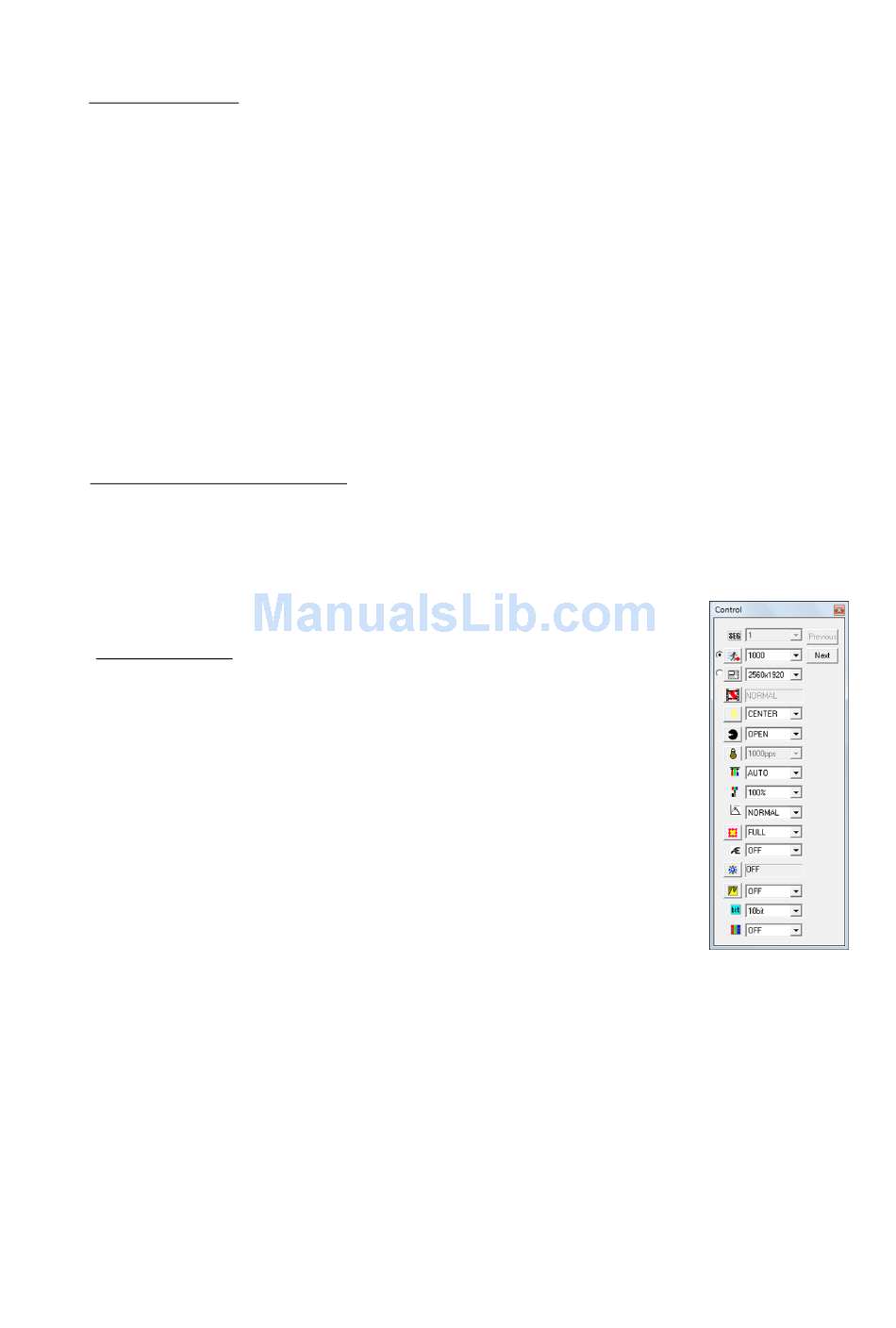

□"Control" Window
Select a camera on the "Item List" and click "Control" on the right
click menu of the mouse to open the "Control" window.
When the camera is in the VIEW mode, recording parameters can be set.
When the camera is in the READY mode, play parameters can be set.
Items that can be set include, from the top, current segment, f
(pps), frame size, recording trigger mode, trigger timing, shutter, low light,
white balance, chroma, gain, AOI, AE, image trigger, DRES mode, pixel
bit depth and RGB matrix correction.
Click "Previous" to move to a camera setting higher on the item list.
Click "Next" to move to a camera setting lower on the item list.
(00292)H
rame rate
4 - 13
