■Custom Trigger

Use any of the following to set the custom trigger.
・Click the "Trigger Timing" button
・ Click the "Trigger Timing" button
・ Select "CUSTOM" for individual cameras from "Trigger Timing" under the "Recording
Parameters" tab in the "List of Camera Settings" window.

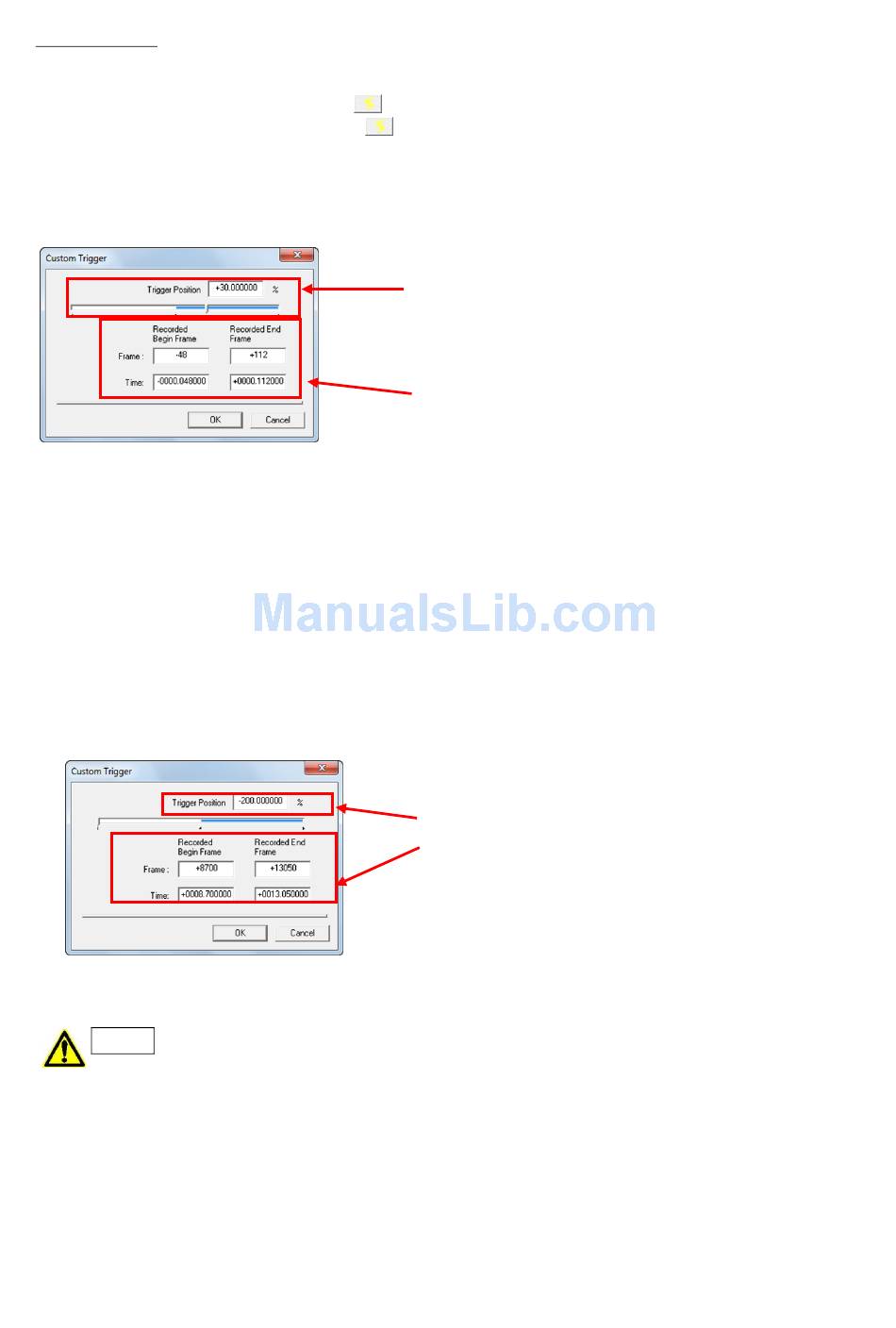

Specify the custom trigger with the "Custom Trigger" dialogue.
Since the memory segment size and number of recordable frames differs by camera, custom
trigger settings cannot be batch set on multiple cameras.
Furthermore, changes to custom trigger settings cannot be batch set with the following.
・ "Batch" in the "Recording Parameters" tab of the "List of Camera Settings" window
・ Camera parameters toolbar (but the trigger timing can be selected as CUSTOM）
With the HX cameras and the GX-8, the range of custom trigger positions is expanded.
The time from trigger input to the recording start frame is the maximum value for the number of
frames corresponding to the memory "-100%" ・ "65536 frames" ・ "10 minutes" (600 seconds).
・ The number of frames that can be recorded changes when the frame size, time
Caution
stamp or pixel bit length are changed. If specifying the custom trigger in frames,
confirm the recording range with the "Custom Trigger" dialogue and correct to the
proper range.
・ Event recording is not possible if the trigger position is less than 0%.
4 - 40
in the "Controls" window.
in the "Camera Details" dialogue.
Specify the trigger position in the recording
memory in percentages.
The range is -100~+100%.
The trigger position can also be set with the
slider.
Specify the start frame/end frame in the recording
memory with frame numbers or relative time.
Just as with other cameras, the custom trigger can
be specified with the GX-8 using numerical input
in "Trigger Location", "First Recorded Frame" or
"Last Recorded Frame". The slider can only be
set to -100%.
