■HX, GX and Q Camera Luminance

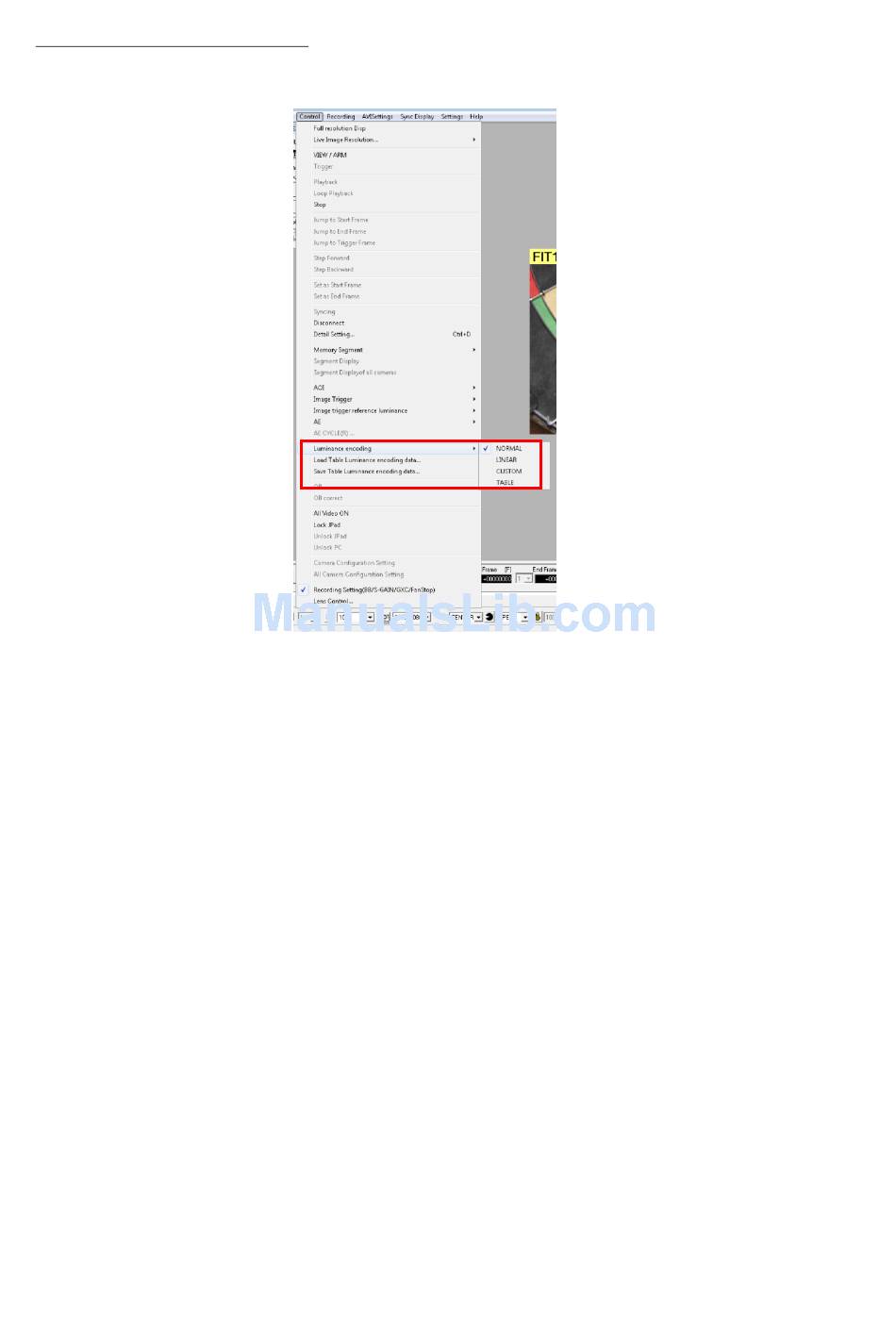

The input/output transfer properties for displaying HX, GX and Q camera image data can be
selected.
NORMAL
LINEAR
CUSTOM
TABLE
Luminance
Luminance
4 - 68
HX Camera Connection
Standard setting to display images with input/output transfer
characteristics matching the dynamic range of the camera. Uses gain /
gamma / knee.
Gain / Gamma / Knee settings ignored, data converted to linear for
display.
Setting to display camera data with the specified input/output transfer
properties.
Specify the minimum brightness input value, maximum brightness input
value and gamma value to adjust data with low amounts of brightness
differences for display.
Select CUSTOM to show the "Custom Luminance" dialogue.
Refer to page 5-14 for details of the "Custom Luminance" dialogue.
HX cameras only
Function to import/export the luminance of the recorded data transferred
to the image.
Create a user specific luminance file and apply to the HX camera and
MCFF files.
Import TABLE data
Imports the saved file of the luminance.
Save TABLE data
Saves the file of the luminance for the displayed image.
