■ Sync Display

Open multiple camera connections and image files and check "Sync Display Settings" in the item
list and then click on "Sync Display" in the synchronized display menu.
The frame matching the relative time (T=0 frame is the standard time 0) for the image checked is
displayed on the monitor simultaneously.
The playback rate can be specified for sync display in the same manner as when playing back a
single image.
With sync display, the single frame time unit depends on the frame rate for the selected item.
(Example: 0.001sec for 1000pps).
However, if the selected item does not include sync display (not checked), the single frame time unit
depends on the highest frame rate on the image for sync display.
Simultaneous sync display is possible for the camera and file.
If the camera status is VIEW, ARM, or REC, the file becomes a still image display.
Double click on a single image when playback is paused in sync display, and select the image to end
sync display. The double clicked image is shown on the monitor.
Items cannot be closed during sync display. Close after deleting the sync display.
(00292)H

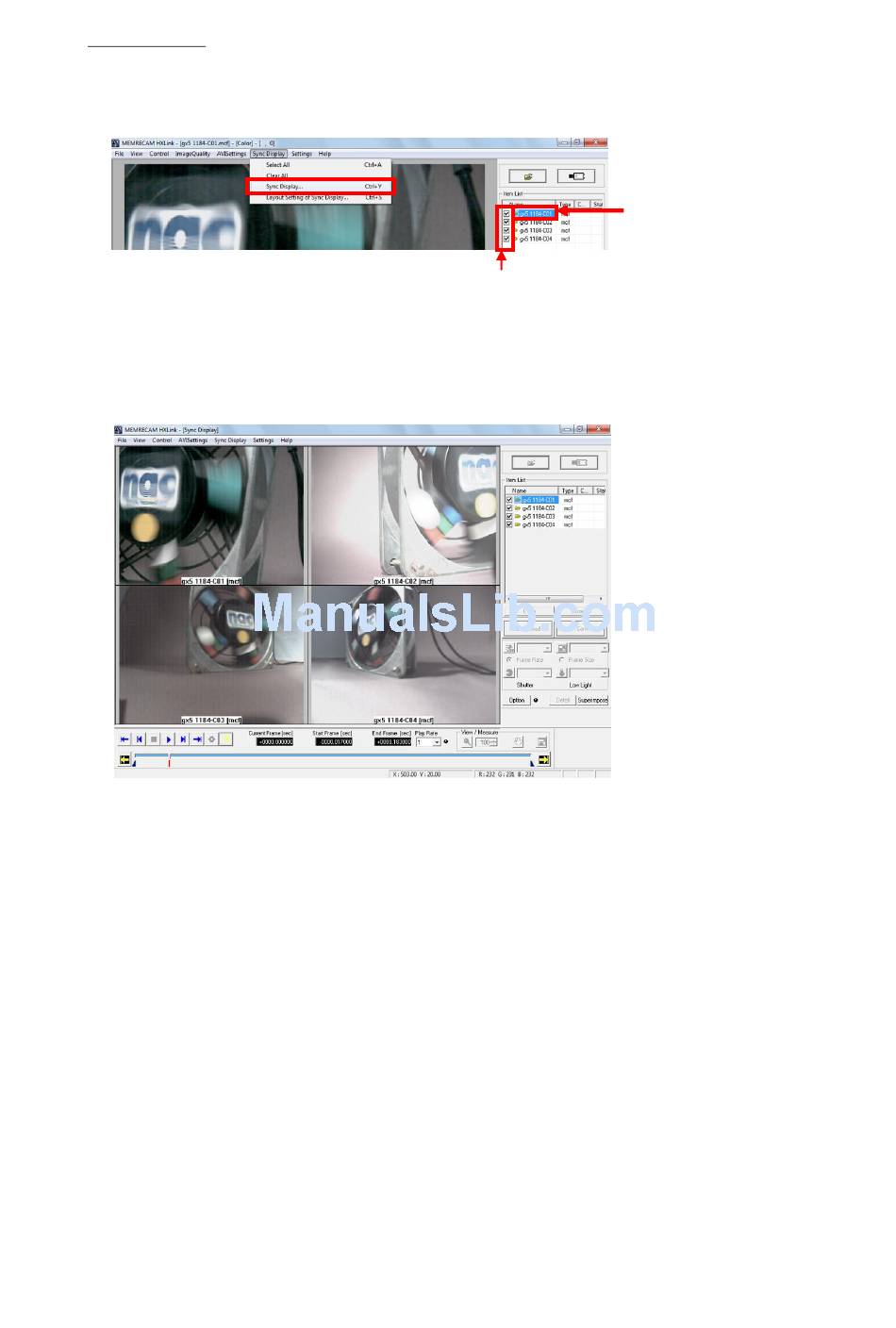

Selected Item
Synchronized display setting
checkboxes
