Connection Configuration Information (during M-Hub use)
"Connection Configuration Information" Items (only the ID can be set. The other items are for
display only.)
ID
TYPE
Nickname
Sync
IRIG
I-M SYNC
M S/N
M Port No.
M Port ID
M-S Connection
M-S Sync
S S/N
S Port No.
S Port ID
S-C Connect
S-C Sync
CID
(00292)H

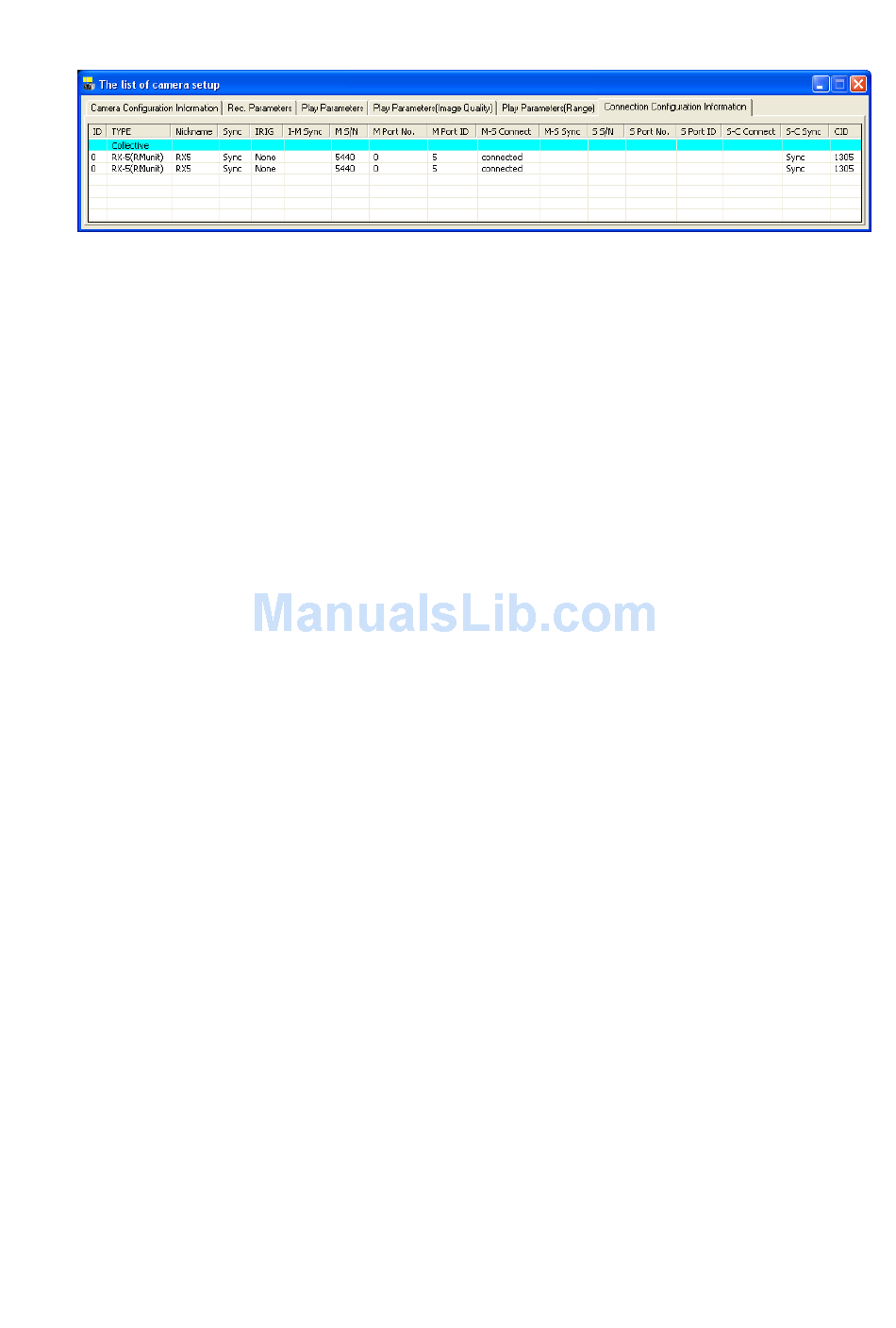

"Connection Configuration Information" (using GXLink images)
Camera (DRP) ID
Camera (DRP) type
Camera (DRP) nickname (refer to page 4-2)
Camera (DRP) sync status
All I-M sync, M-S sync, S-C sync, "Sync" displayed when sync
processing on camera (DRP) successful
IRIG signal status
IRIG and master M-Hub sync status
Master M-Hub serial number
Master M-Hub port number
Master M-Hub port ID
Master M-Hub and slave M-Hub connection status
(C:connected, D:disconnected)
Master M-Hub and slave M-Hub sync status
Slave M-Hub serial number
Slave M-Hub port number
Slave M-Hub port ID
Slave M-Hub and camera connection status
(C:connected, D:disconnected)
Slave M-Hub and camera sync status
Camera (DRP) identification number
