13.8 LAA Measurement Application Examples

Shows the application examples using the video. This application example describes the operating
method but the numerical values have no meaning.

■ Rotation Angle and Angle Speed

Using a video example filming a location rotating at a constant speed, the rotation angle and
angle speed can be determined.
After making the film speed settings, start angle measurement by specifying 4 points and click on
st nd
the 1 and 2
Setting the 1
13 - 26
points for angle measurement.
st nd

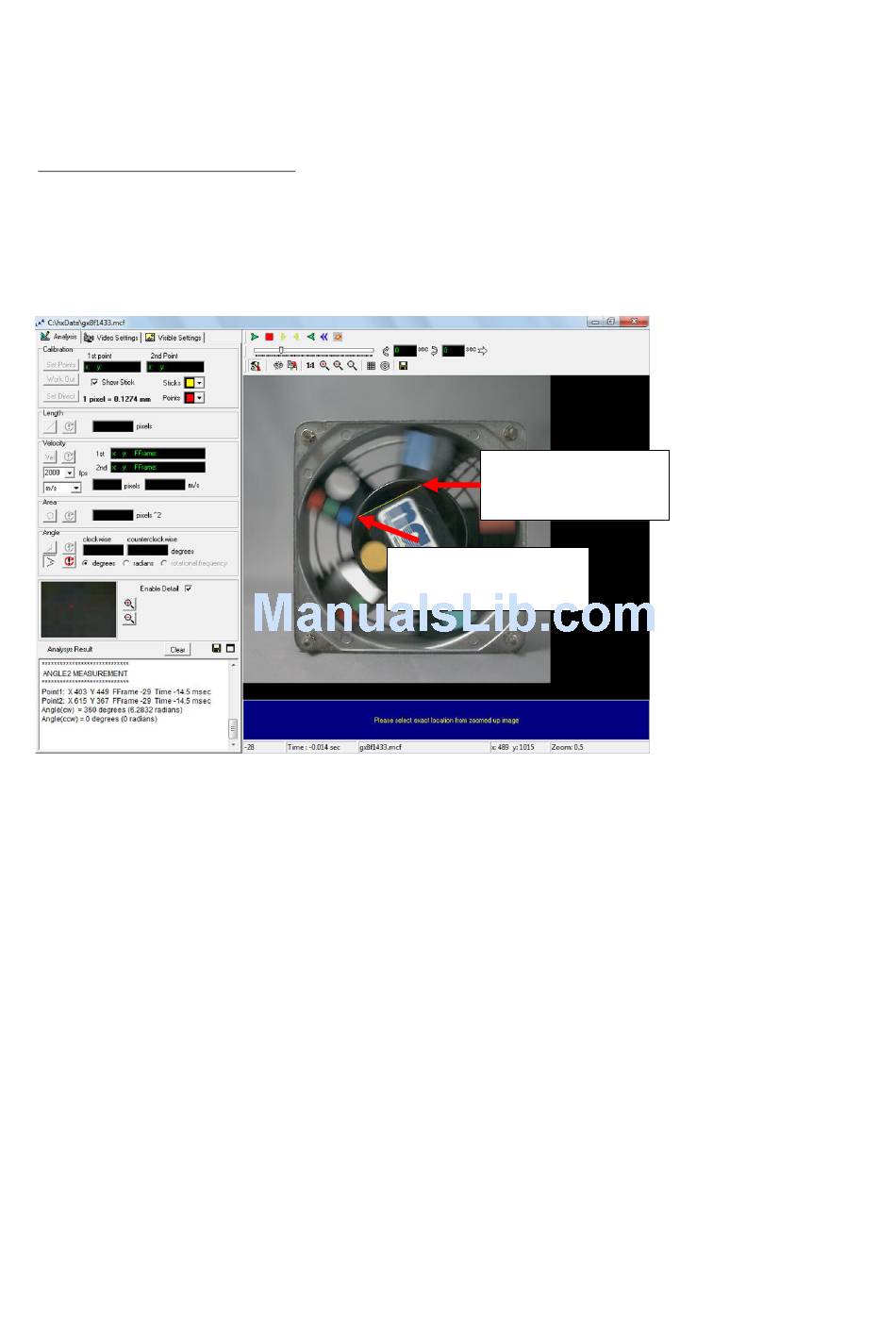

and 2 Points for Angle Measurement with 4 Points
st
1 point for angle
measurement
nd
2 point for angle
measurement
