3. How to Install

3.3.6. Electrical Installation, Control Terminals

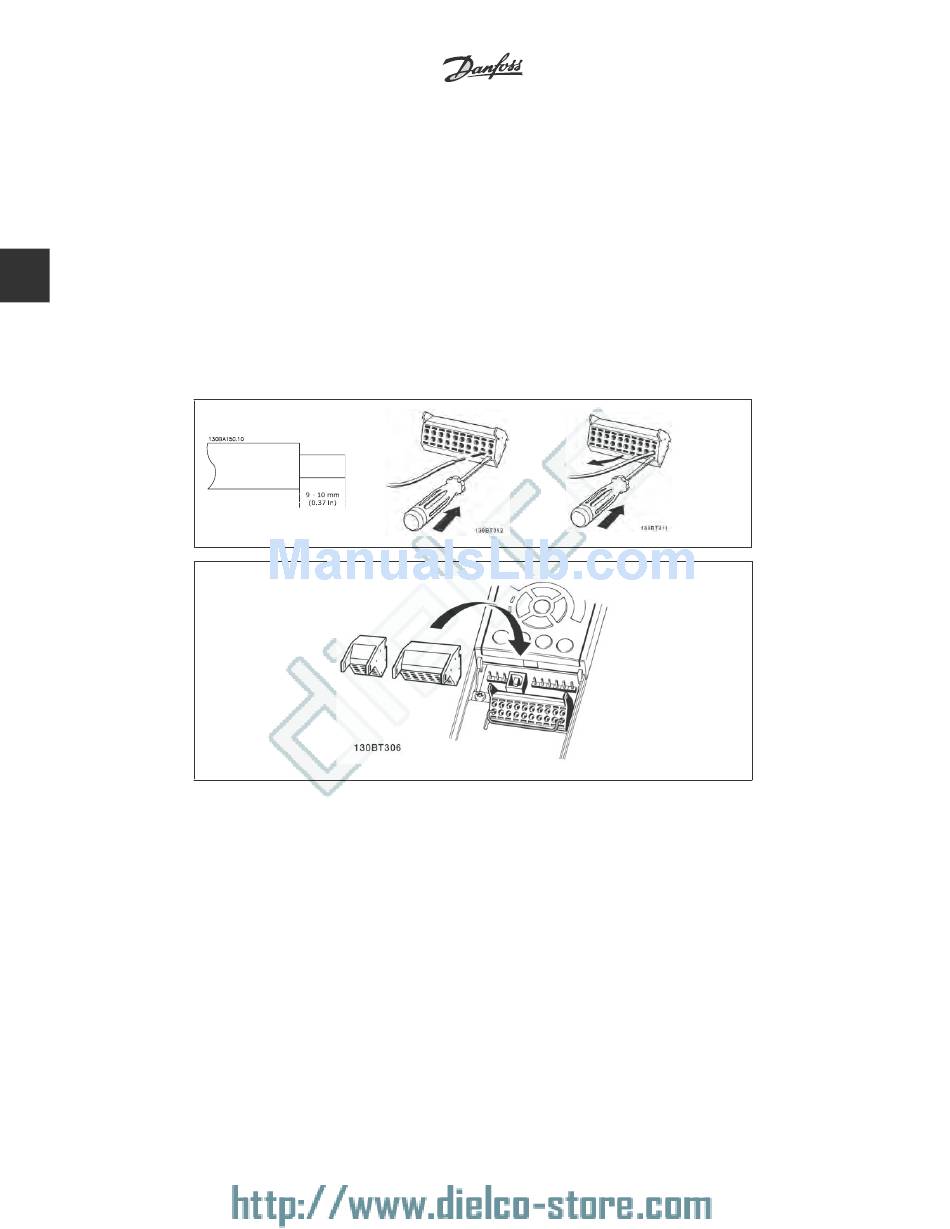

To mount the cable to the terminal:
3
To remove the cable from the terminal:
1)
Assembling of IP 55 / NEMA Type 12 (A5 housing) with line supply disconnector
The line power switch is placed on the left side on the B1, B2, C1 and C2 enclosures. The line
power switch on the A5 enclosure is placed on the right side
34
1. Strip isolation of 0.34-0.39 in [9-10 mm]
2. 1)
Insert a screw driver in the square hole.
3. Insert the cable in the adjacent circular hole.
4. Remove the screwdriver. The cable is now mounted to the terminal.
1)
1.
Insert a screw driver in the square hole.
2. Pull out the cable.
Max. 0.015 x 0.1 in. [0.4 x 2.5 mm]
1.
