Danfoss VLT AutomationDrive FC 300 Instruction Manual page 34

3. How to Install
Alternate Fuses 525 - 600V drives 50 hp
to 800 hp (37 kW - 630 kW)
3

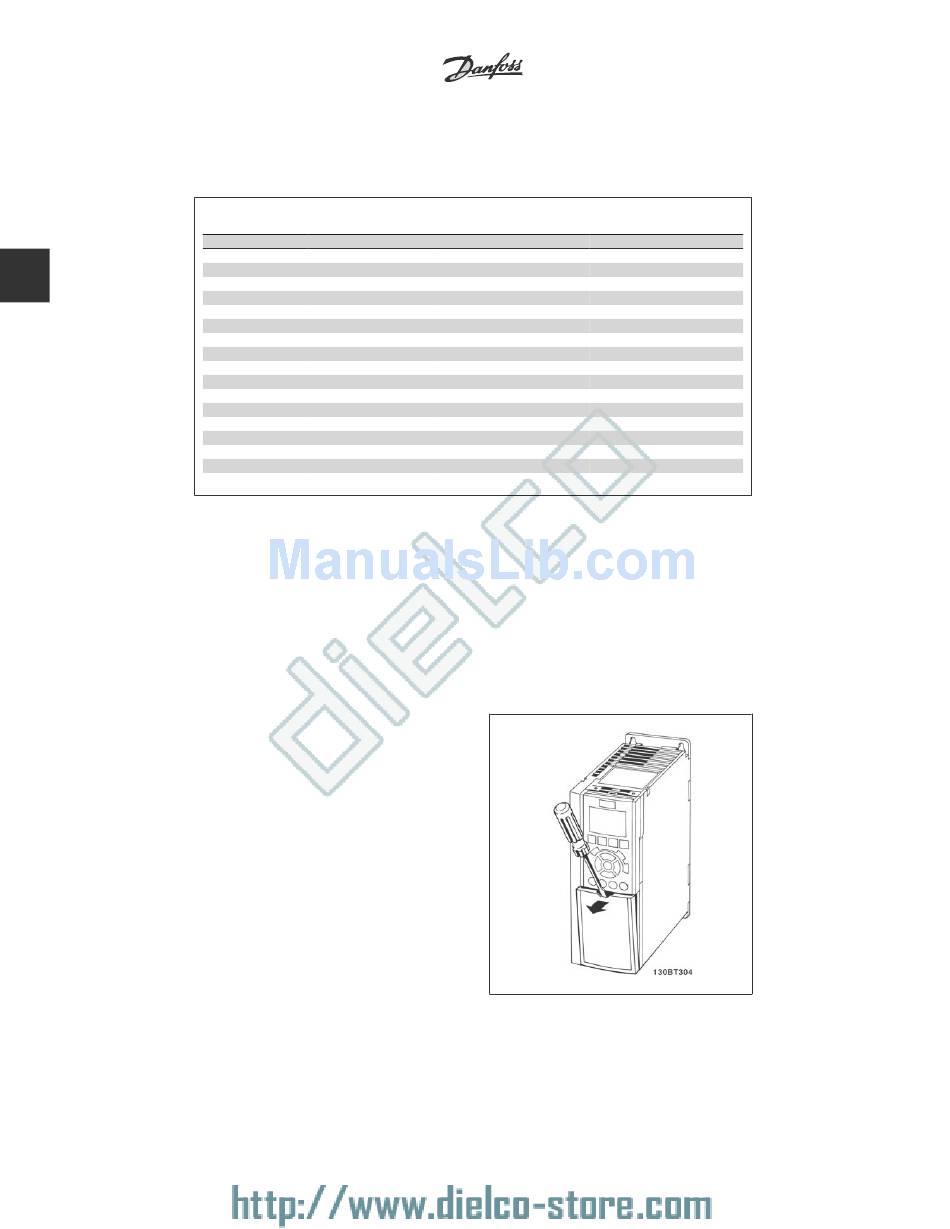

3.3.5. Access to Control Terminals
All terminals to the control cables are located
underneath the terminal cover on the front of
the adjustable frequency drive. Remove the
terminal cover with a screwdriver.
32
FC 300 Bussmann
kW JFHR2
P37K 170M3013
P45K 170M3014
P55K 170M3015
P75K 170M3015
P90K 170M3016
P110K 170M3017
P132K 170M3018
P160K 170M4011
P200K 170M4012
P250K 170M4014
P315K 170M5011
P355K 170M4017
170M5013
P400K 170M4017
170M5013
P500K 170M6013
P560K 170M6013
170M fuses shown from Bussmann use the -/80 visual indicator. –TN/80 Type T, -/110
or TN/110 Type T indicator fuses of the same size and amperage may be substituted.
170M fuses from Bussmann when provided in the 525-600/690 V FC-302 P37K-P75K,
FC-102 P75K, or FC-202 P45K-P90K drives are 170M3015.
170M fuses from Bussmann when provided in the 525-600/690V FC-302 P90K-P132,
FC-102 P90K-P132, or FC-202 P110-P160 drives are 170M3018.
170M fuses from Bussmann when provided in the 525-600/690V FC302 P160-P315,
FC-102 P160-P315, or FC-202 P200-P400 drives are 170M5011.
MG.33.A9.22 - VLT is a registered Danfoss trademark
®
VLT AutomationDrive FC 300 Instruction
Ferraz-
SIBA
Shawmut
Type RK1 Type RK1
2061032.125 6.6URD30D08A0125
2061032.160 6.6URD30D08A0160
2061032.200 6.6URD30D08A0200
2061032.200 6.6URD30D08A0200
2061032.250 6.6URD30D08A0250
2061032.315 6.6URD30D08A0315
2061032.350 6.6URD30D08A0350
2061032.350 6.6URD30D08A0350
2061032.400 6.6URD30D08A0400
2061032.500 6.6URD30D08A0500
2062032.550 6.6URD32D08A0550
2061032.700 6.9URD31D08A0700
2061032.700 6.9URD31D08A0700
2063032.900 6.9URD33D08A0900
2063032.900 6.9URD33D08A0900
3.10: A2 and A3 enclosures
Manual
