4. How to Program

4.1. The Graphical and Numerical LCP

The easiest way to program the adjustable frequency drive is to use the Graphical Local Control
Panel (LCP 102). It is necessary to consult the adjustable frequency drive Design Guide when
using the Numeric Local Control Panel (LCP 101).

4.1.1. How to Program on the Graphical LCP

The following instructions are valid for the graphical LCP (LCP 102):

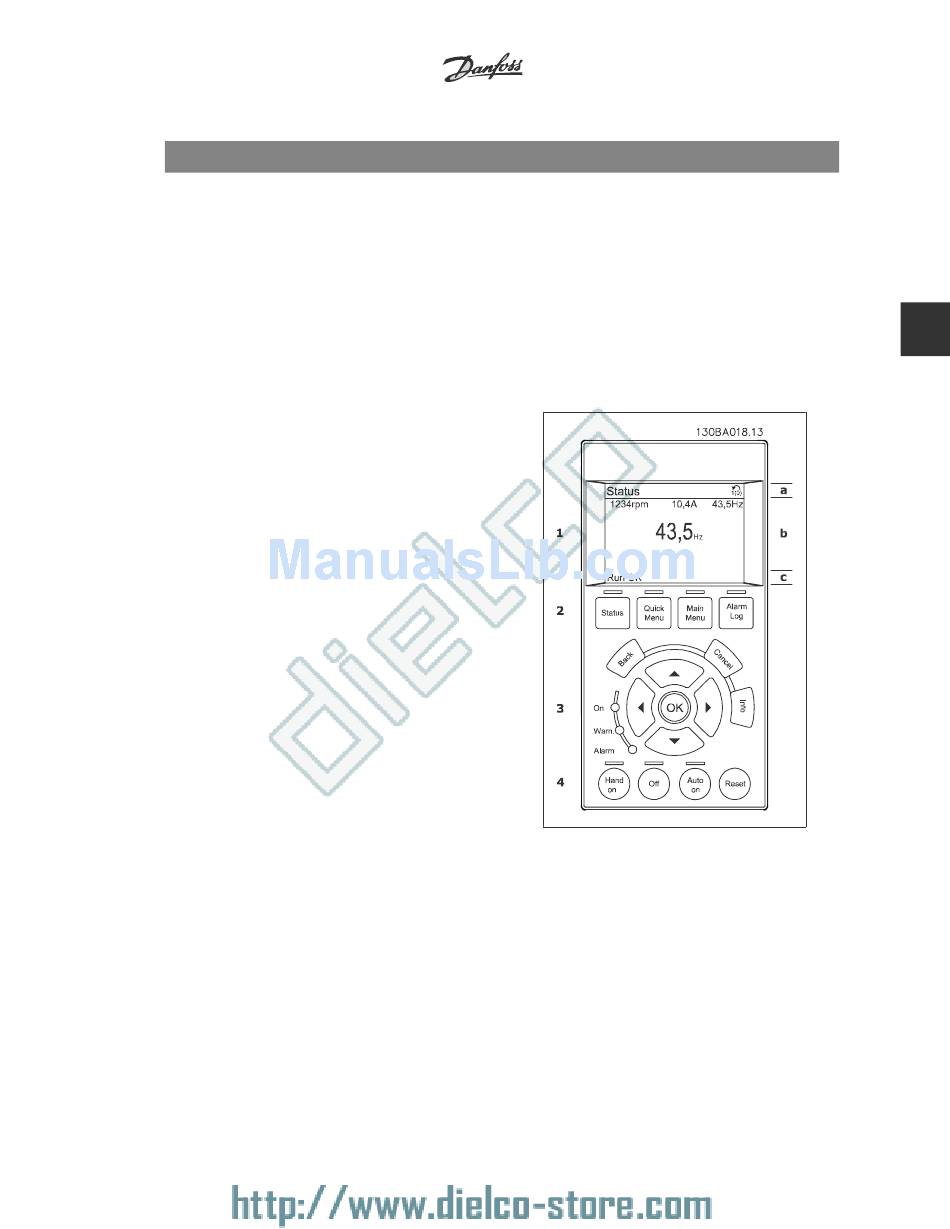

The control panel is divided into four
functional groups:
1.
2.
3.
4.
All data is displayed in a graphical LCP display,
which can show up to five items of operating
data while displaying [Status].
Display lines:
a.
b.
c.
Graphical display with status lines.
Menu keys and LEDs - changing pa-
rameters and switching between dis-
play functions.
Navigation keys and indicator lights
(LEDs).
Operation keys and LEDs.
Status line: Status messages dis-
playing icons and graphics.1
Line 1-2: Operator data lines dis-
playing data defined or chosen by
the user. By pressing the [Status]
key, up to one extra line can be add-
ed.1
Status line: Status messages dis-
playing text.1
