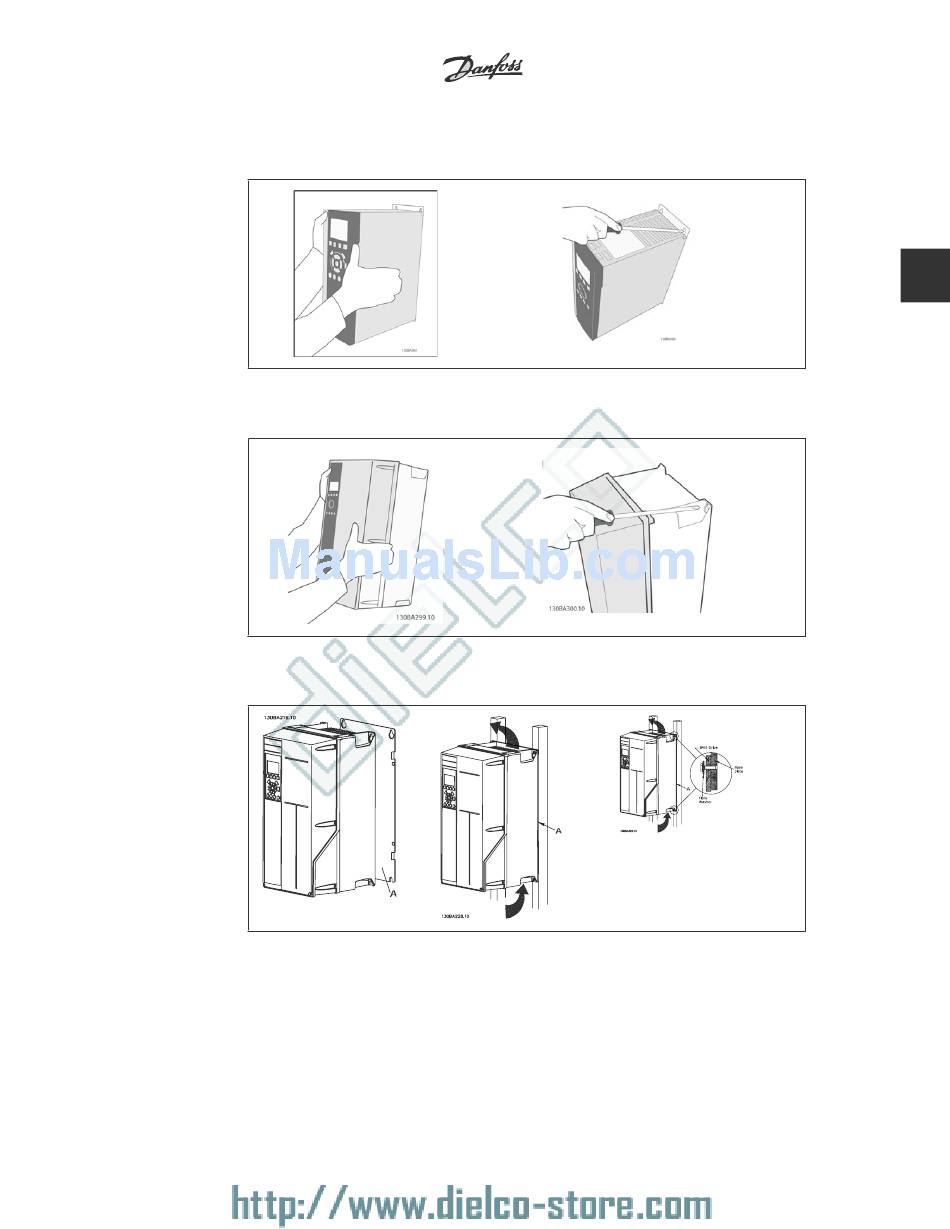

Mounting frame sizes A1, A2 and A3:
Mounting frame sizes A5, B1, B2, C1 and C2:
The back wall must always be solid for optimum cooling.
When mounting frame sizes A5, B1, B2, C1 and C2 on a non-solid back wall, the drive must be
provided with a back plate A due to insufficient cooling air over the heatsink.
