Appendix B
Using The Batch Label Rewinder Option

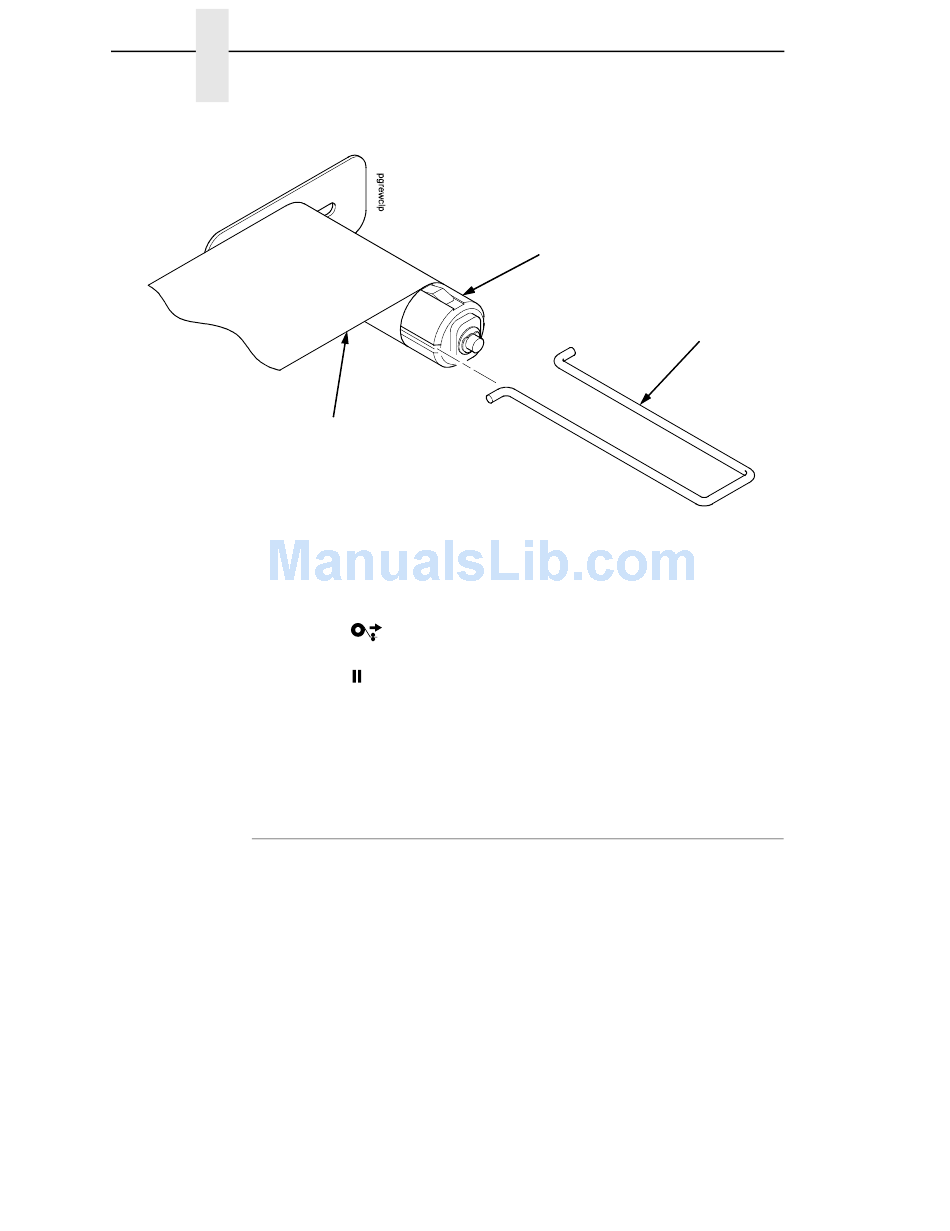

Figure 10. Securing Media on the Rewinder
7. Insert the media rewinder clip to secure the media. See Figure 10.
8. Manually rotate the rewinder one full revolution until the media is taut.
9. Rotate the deck lock lever clockwise to close the pivoting deck.
10. Press the
TOF (Top-of-Form) position.
11. Press the
12. Close the side cover and media cover.
IMPORTANT
The rewinder supports a maximum diameter of 8 inches of printed
labels. Exceeding this diameter can cause printed labels to rub on the
bottom pan.

Rewinder Full Sensor Setup

1. Open the side cover and media cover.
2. Position the rewinder full sensor in the lower position and tighten the
thumbscrew. See Figure 9.
NOTE: When the rewinder full sensor detects a roll full condition, the
3. Close the side cover and media cover.
216
Media
(Feed) key to advance the media to the next
(Pause) key until ONLINE displays.
rewinder beeps and the message "REWINDER FULL Remove Roll"
displays.
Rewinder
Media Rewinder
Clip
