Displayed Message
203 DPI Head
Installed
305 DPI Head
Installed
B20:FIRMWARE DOWNLOAD
CLEARING PROGRAM
FROM FLASH
D50 STATUS:
CLEARING FLASH
Please Wait
D51: PROGRAMMING FLASH
LOADING PROGRAM
INTO FLASH
Please Wait
DO NOT POWER OFF
ETHERNET
INITIALIZING
Please Wait

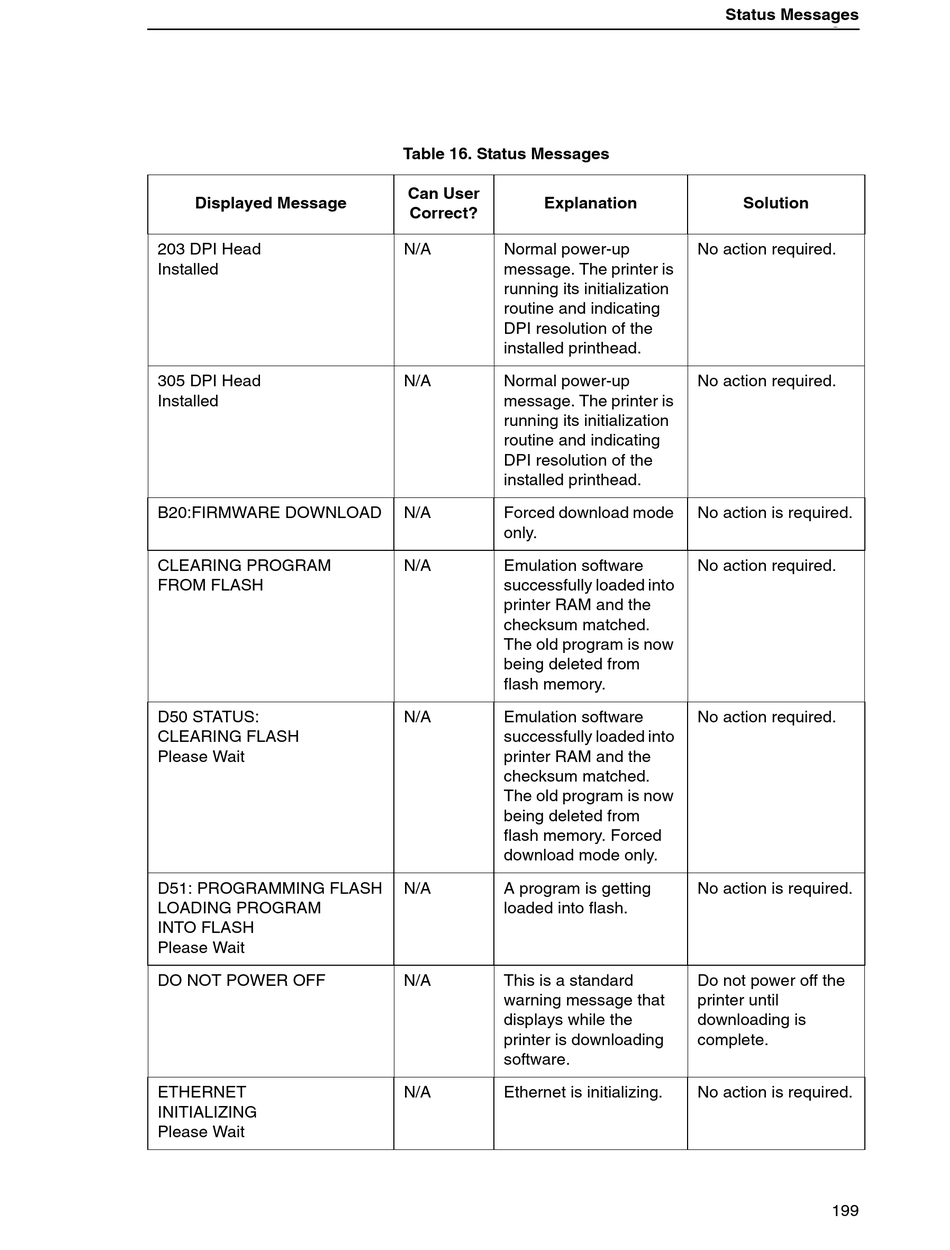

Table 16. Status Messages
Can User
Explanation
Correct?
N/A Normal power-up
message. The printer is
running its initialization
routine and indicating
DPI resolution of the
installed printhead.
N/A Normal power-up
message. The printer is
running its initialization
routine and indicating
DPI resolution of the
installed printhead.
N/A Forced download mode
only.
N/A Emulation software
successfully loaded into
printer RAM and the
checksum matched.
The old program is now
being deleted from
flash memory.
N/A Emulation software
successfully loaded into
printer RAM and the
checksum matched.
The old program is now
being deleted from
flash memory. Forced
download mode only.
N/A A program is getting
loaded into flash.
N/A This is a standard
warning message that
displays while the
printer is downloading
software.
N/A Ethernet is initializing.
Status Messages
Fault Messages
Solution
No action required.
No action required.
No action is required.
No action required.
No action required.
No action is required.
Do not power off the
printer until
downloading is
complete.
No action is required.
