15.18. VESA drill holes

VESA-compatible drilling patterns for the RAM attachment and swivel joint brackets are located
on the rear side of the DLT-V83.
DLT-V8310 VESA drill holes
Dimensions without add-ons (in mm):

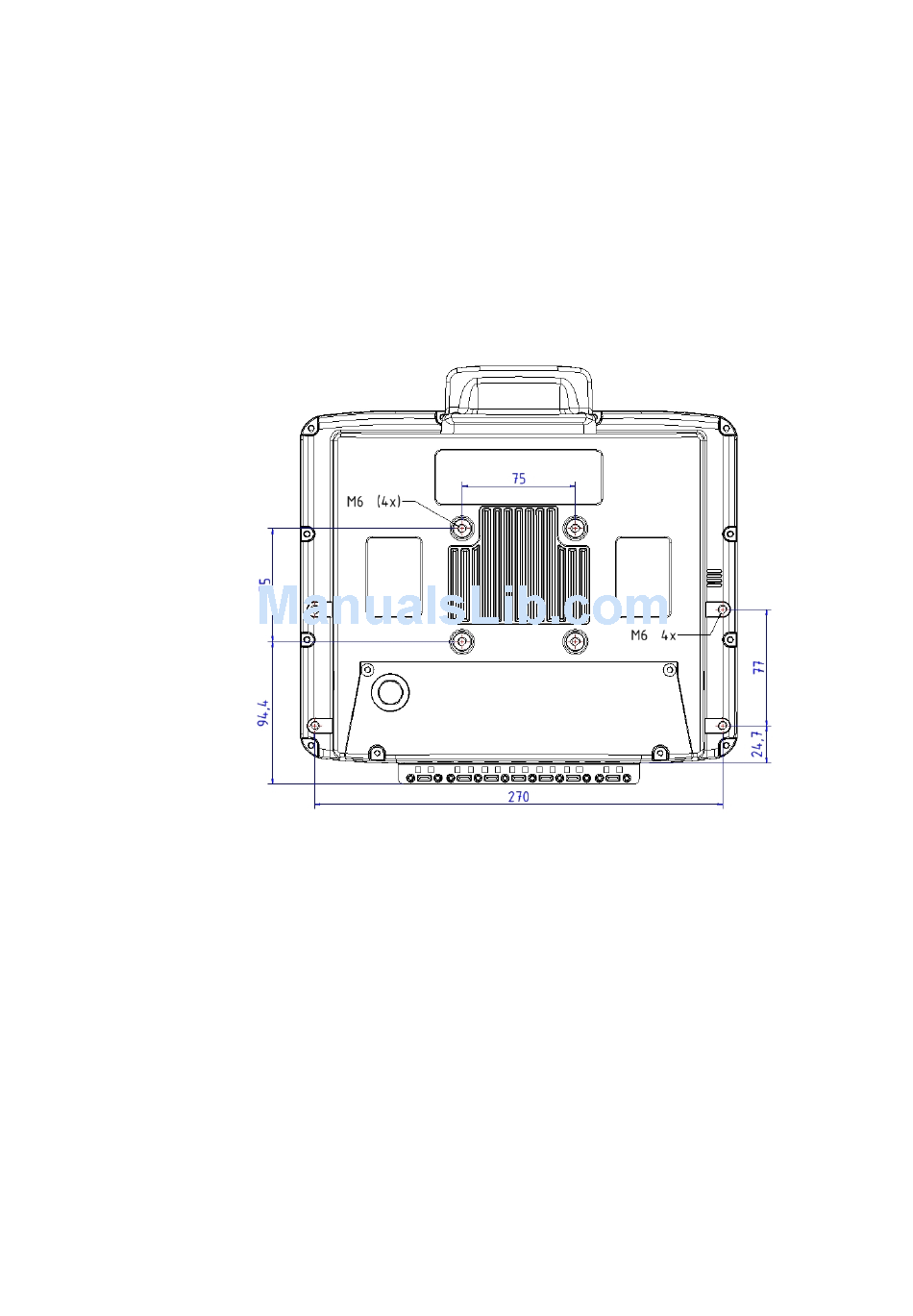

Fig. 15.5: Position of the VESA drill holes DLT-V8310

Depth of thread: M6 x 6mm.
