Serial interfaces
13.4.2.

Digital I/O interface

The Digital I/O interface is galvanically separated from the overall system. A matching driver is
integrated in the operating system. An API description as well as sample application are available
upon request. Contact your Advantech-DLoG sales representative if necessary.
Pin assignment:
Pin
1
2
3
4
5
6
7
8

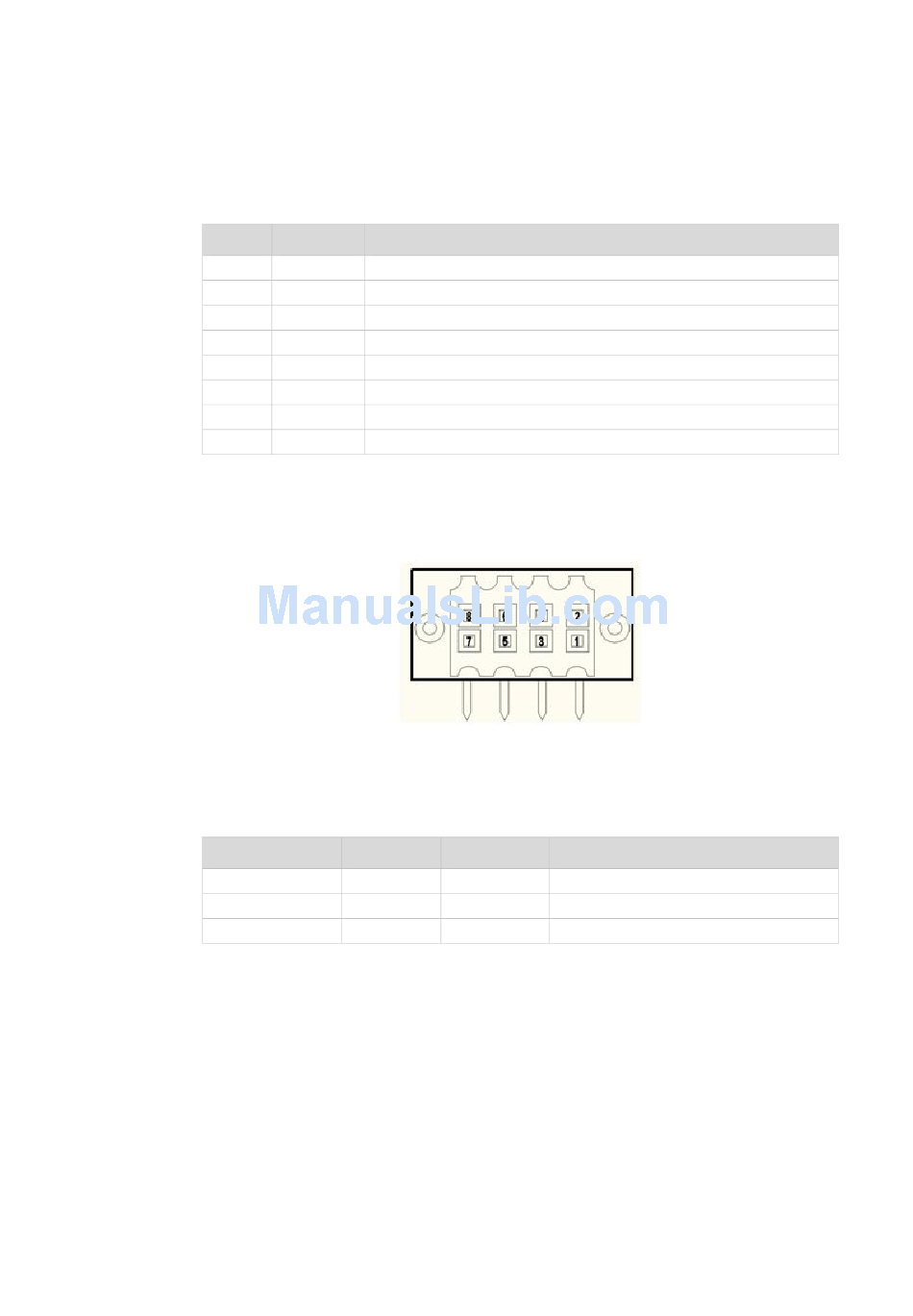

Fig. 13.4: Digital I/O interface pin position

Matching connectors (examples):
Manufacturer
Weidmüller
Weidmüller
Weidmüller
Page 88 of 122
Signal
DI1+ Provides 12 VDC / max. 8 mA
DI1- Input DI1 -> selectable up to max. 12 VDC / 100 Hz filter integrated
DI2+ Provides 12 VDC / max. 8 mA
DI2- Input DI1 -> selectable up to max. 12 VDC / 100 Hz filter integrated
DIO_GND GND Potential for Digital I/O application
DO1 Output 1: supplies 12 VDC / 20 mA
DO2 Output 1: supplies 12 VDC / 20 mA
DO3 Output 1: supplies 12 VDC / 20 mA
Series Order no.
B2L 3.50F 1748180000
B2L 3.50 1847530000
B2L 3.50 1024270000
DLT-V83 Series Manual V1.50
Description
B2L 3.50/08/180F SN BK BX
B2L 3.50/08/180 SN OR BX PRT
B2L 3.50/08/180 SN BK BX PRT
Advantech-DLoG
