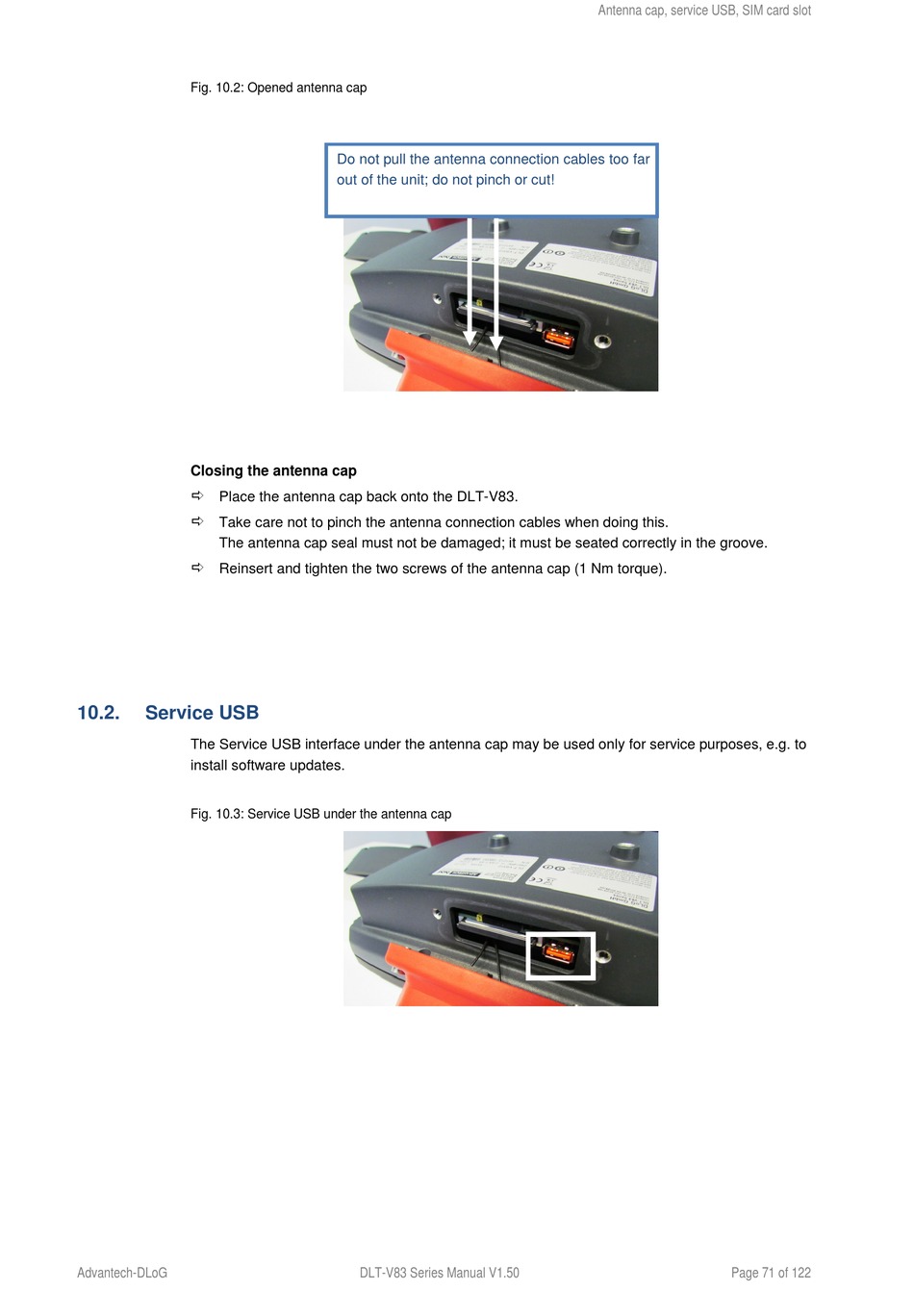

Fig. 10.2: Opened antenna cap

Closing the antenna cap

Place the antenna cap back onto the DLT-V83.

Take care not to pinch the antenna connection cables when doing this.
The antenna cap seal must not be damaged; it must be seated correctly in the groove.

Reinsert and tighten the two screws of the antenna cap (1 Nm torque).
10.2.

Service USB

The Service USB interface under the antenna cap may be used only for service purposes, e.g. to
install software updates.

Fig. 10.3: Service USB under the antenna cap

Advantech-DLoG
Do not pull the antenna connection cables too far
out of the unit; do not pinch or cut!
